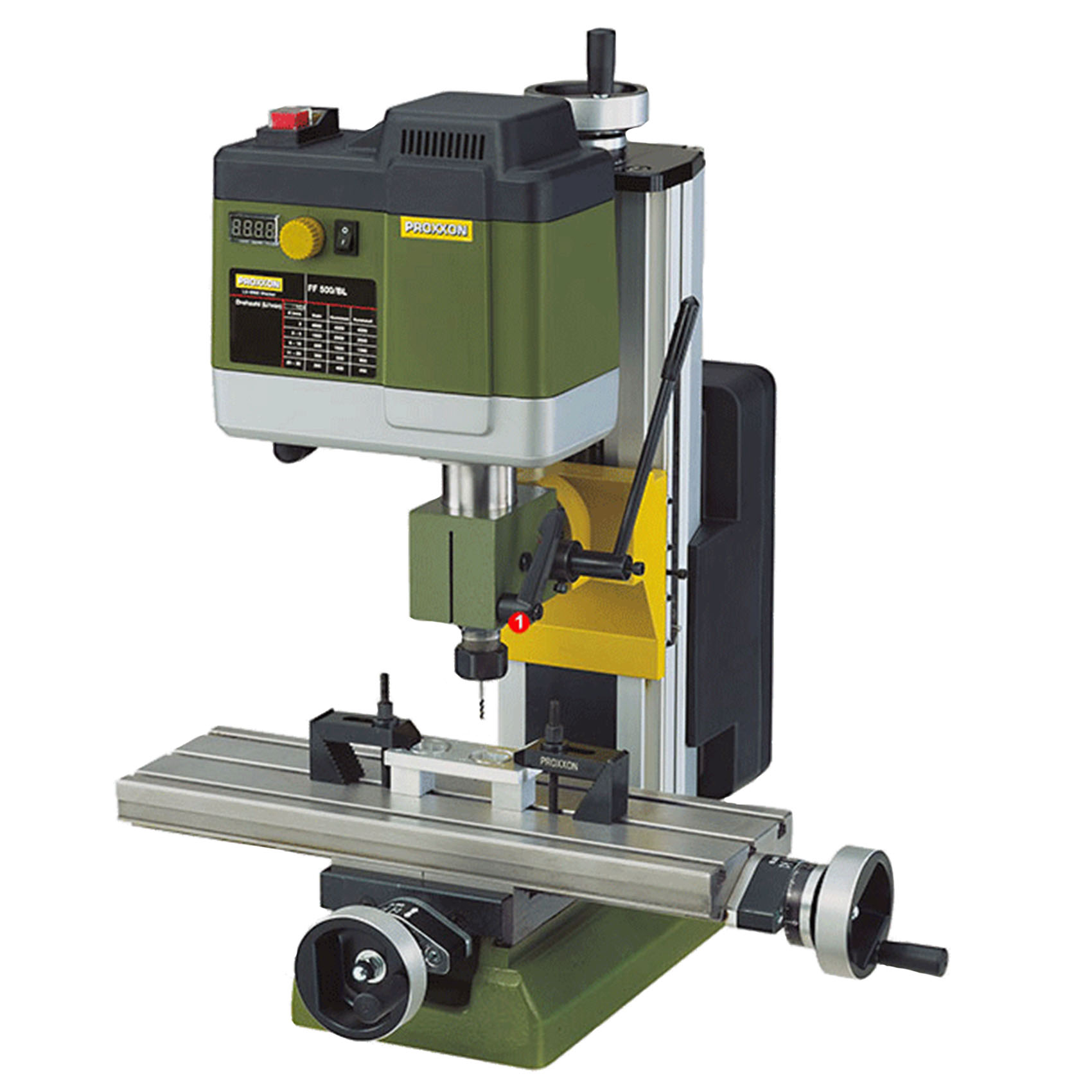

BRAND : PROXXON

ITEM NO.: 24350

ORIGIN : GERMANY

POWER : 230V. 400W. 50/60HZ

RPM : WITH VARIABLE SPEED PRE-SELECTION FROM 200 - 4,000RPM AND HIGH PRECISION (ACCURACY 0.05MM)

MATERIAL : SOLID COLUMN WITH DOVETAIL GUIDES

DIMENSION : COLUMN 120 X 100 X 430 MM. H 750 MM, W 550 MM, D 550 MM.

MOVEMENT : TRANSVERSE RANGE VERTICAL (Z-AXIS) 220MM, TRANSVERSE (X-AXIS) 310MM, DEPTH (Y-AXIS) 100MM

INCLUDED : TOOL HOLDER USING MULTIPLE RANGE COLLETS TYPE ER 20: ONE EACH OF 6 MM 8 MM 10 MM AND 12MM ARE INCLUDED. SOLID PLANE-MILLED STEEL COMPOUND TABLE WITH 3 CONTINUOUS MICROMOT STANDARD T-SLOTS (12 X 6 X 5MM)

NOTE : CLAMPING JAWS, MILLING MACHINE AND WORK PIECE ARE NOT INCLUDED IN THE SCOPE OF DELIVERY. THE MILLING MACHINE FF 500/BL IS ALSO AVAILABLE AS "CNC-READY" VERSION (NO 24 364): WITH RECIRCULATING BALL SPINDLES AND POWERFUL STEP MOTORS ON ALL 3 AXES

SIZE : THROAT 125 MM. SLEEVE STROKE 30 MM. TABLE 400 X 125MM.

WEIGHT : APPROXIMATELY 47 KG

. WITH DIGITAL SPEED INDICATION.

. THE SOPHISTICATED CONTROL VIA ROTOR POSITION AND SPEED SENSORS GUARANTEES HIGH TORQUE FOR USE OF LARGE MILLING CUTTERS IN THE LOWER SPEED RANGE.

. MILLING HEAD CAN BE ROTATED TO THE LEFT AND RIGHT BY 90° (WITH GRADUATION).

. THE CLAMPABLE SPINDLE SLEEVE IS PREPARED FOR MOUNTING OF THE FINE FEED ADAPTER.

. HEIGHT ADJUSTMENT OF MILLING HEAD VIA HAND WHEEL.

. ALL 3 HAND WHEELS WITH GRADUATED SCALE RING (1 REV. = 2MM).
