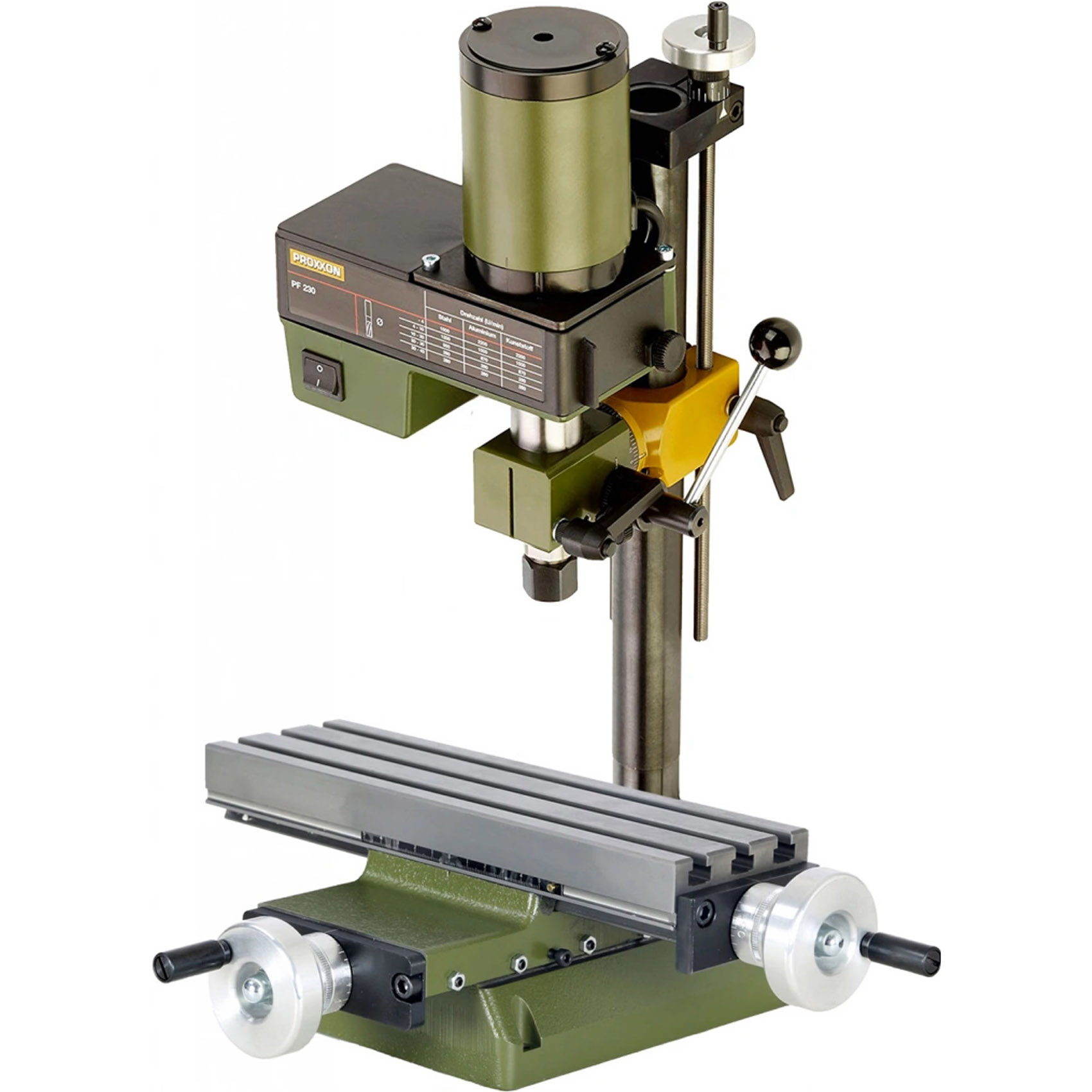

PROXXON MICRO MAILLING MACHINE FF 230 24108 | 280 - 550 - 870 - 1,200 - 1,500 AND 2,200 RPM | MAX HEIGHT 180MM AND DEPTH 130MM | POWERFUL MOTOR EFFECTS DRIVE VIA A POLY-V BELT, YIELDING HIGH TORQUES, ESPECIALLY AT LOWER SPEEDS | MADE IN GERMANY

BRAND : PROXXON

ITEM NO.: 24108

ORIGIN : GERMANY

SPINDLE SPEEDS : 280 - 550 - 870 - 1,200 - 1,500 AND 2,200 RPM

TRAVEL : 30MM

TABLE SIZE : 270 X 80MM

COLUMN : 35 X 400MM LONG

YTRAVEL : 170 X 65MM

MAXIMUM HEIGHT : 180MM AND DEPTH 130MM

OVERALL HEIGHT APPROX.: 500MM

POWER : THE POWERFUL MOTOR EFFECTS DRIVE VIA A POLY-V BELT, YIELDING HIGH TORQUES, ESPECIALLY AT LOWER SPEEDS

SIZE : THE SOLID TABLE IS T-SLOTTED TO THE MICROMOT STANDARD OF 12 X 6 X 5MM

INCLUDED : COLLETS OF 6 - 8 AND 10MM ARE INCLUDED

NOTE : FOR CLEAN MILLING WE RECOMMEND TO CLAMP THE QUILL AS WELL AS THE HEADSTOCK ONTO THE COLUMN. WITH THE FF 230 THIS IS EASILY DONE WITH THE CLAMP

. THE HEADSTOCK SWIVELS THROUGH 360°, INDICATED ON A SCALE,INDICATED ON A SCALE.

. HEIGHT IS ADJUSTED VIA A ZERO ADJUSTABLE HANDWHEEL, ALSO USED AS FINE FEED WHEN MILLING (ONE REVOLUTION EQUALS 1MM TRAVEL).

. THE QUILL AND HEADSTOCK MAY BE LOCKED IN POSITION, ESSENTIAL WHEN MILLING.
