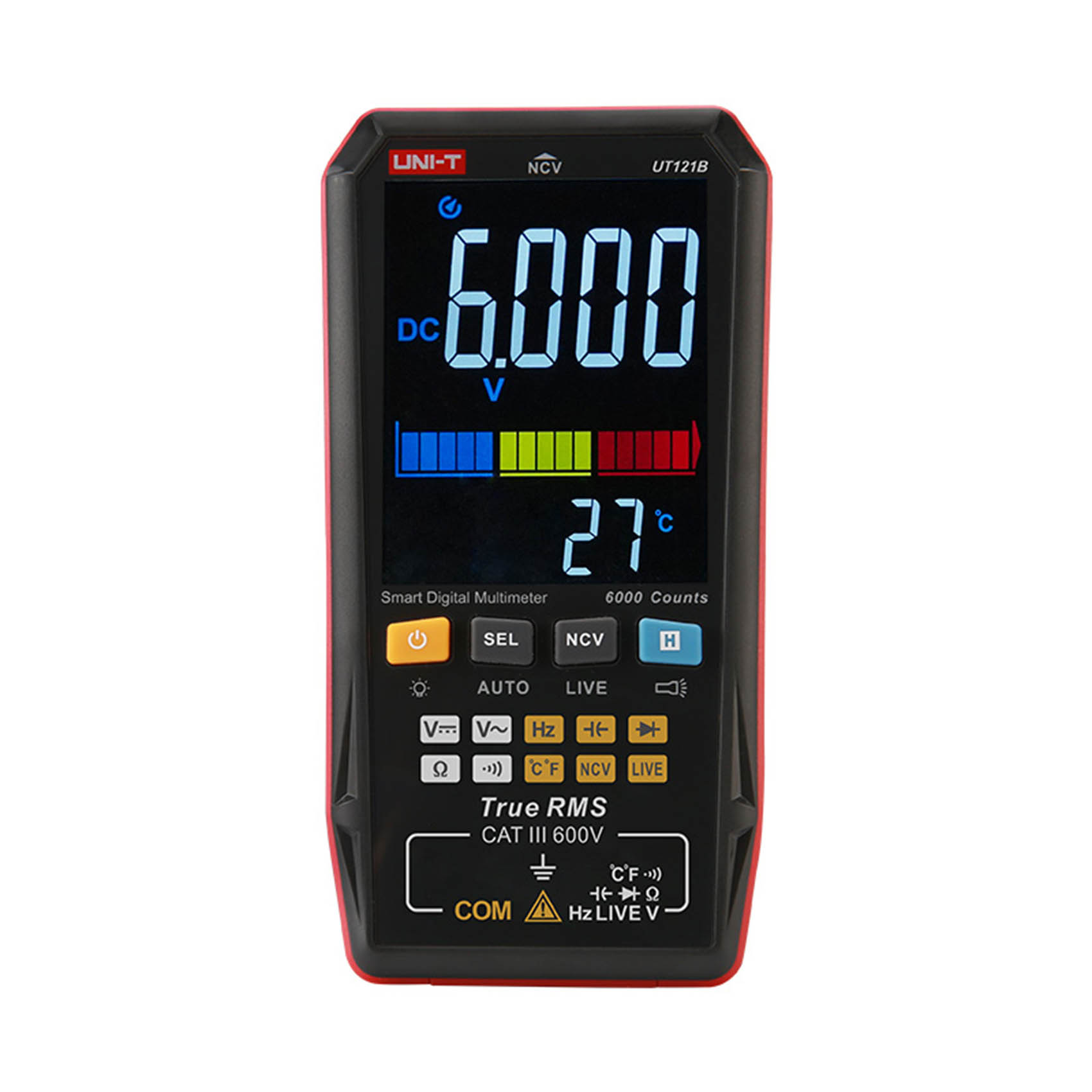

BRAND : UNI-T
ITEM NO.: UT121B
ORIGIN : CHINA
AC VOLTAGE (V) 6.000V/60.00V/600.0V/750.0V : ±(1.5%+3)
AC VOLTAGE FREQUENCY (HZ) 10HZ-1KHZ : ±(0.5%+2)
DC VOLTAGE (V) 6.000V/60.00V/600.0V/1000.0V : ±(1.2%+3)
RESISTANCE (Ω) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ : ±(2%+5)
CAPACITANCE (F) 60.00NF/600.0NF～600.0ΜF/6000UF～60.0MF : ±(10%+5)
FREQUENCY (HZ) 10.00HZ-10.00MHZ : ±(0.1%+3)
TEMPERATURE(℃/℉) –40℃～1000℃/–40°F～1832°F : ±3℃/±6℉
CATEGORY RATINGS : CATⅢ 600V
DISPLAY COUNT : 6099
DUAL DISPLAY : YES
AUTO RANGE : YES
NCV DETECTION : YES
LIVE DETECTION : YES
DIODE TEST : YES
CONTINUITY BUZZER : YES
LCD HIGH VOLTAGE ALERT : YES
FLASHLIGHT : YES
LOW BATTERY INDICATION : YES
AUTO POWER OFF : YES
DATA HOLD : YES
STANDARD ACCESSORIES UT121B: BATTERIES, TEST LEADS, TEMPERATURE PROBE, ENGLISH MANUAL
POWER : 2X1.5V AAA
DISPLAY : UT121B: 52X66MM
PRODUCT SIZE : UT121B: 143X74X17MM
PRODUCT NET WEIGHT : UT121B: 142G
STANDARD INDIVIDUAL PACKING : GIFT BOX, CARRYING BAG
. TRUE RMS
. AC 750V/DC 1000V VOLTAGE MEASUREMENT (UT121B)
. 60MΩ LARGE RESISTANCE MEASUREMENT (UT121B)
. 60MF LARGE CAPACITANCE MEASUREMENT (UT121B)
. FULL-SCALE INPUT PROTECTION
. NCV/LIVE MEASUREMENT
. LARGE SIZE LCD SCREEN
. 19MM ULTRA-THIN BODY
. 6000COUNTS
. INTELLIGENT IDENTIFICATION GEAR
UT121 SERIES FEATURE LARGE-SCREEN & ULTRA-THIN MULTIMETERS AND AUTO RANGE AND THEY CAN DISPLAY TWO MEASUREMENT RESULTS AT THE SAME TIME, WHICH IS CONVENIENT FOR HOME AND NON-PROFESSIONAL USERS. THEY ARE CONVENIENT AND FAST ELECTRONIC TOOLS.
ITEM NO.: UT121B
ORIGIN : CHINA
AC VOLTAGE (V) 6.000V/60.00V/600.0V/750.0V : ±(1.5%+3)
AC VOLTAGE FREQUENCY (HZ) 10HZ-1KHZ : ±(0.5%+2)
DC VOLTAGE (V) 6.000V/60.00V/600.0V/1000.0V : ±(1.2%+3)
RESISTANCE (Ω) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ : ±(2%+5)
CAPACITANCE (F) 60.00NF/600.0NF～600.0ΜF/6000UF～60.0MF : ±(10%+5)
FREQUENCY (HZ) 10.00HZ-10.00MHZ : ±(0.1%+3)
TEMPERATURE(℃/℉) –40℃～1000℃/–40°F～1832°F : ±3℃/±6℉
CATEGORY RATINGS : CATⅢ 600V
DISPLAY COUNT : 6099
DUAL DISPLAY : YES
AUTO RANGE : YES
NCV DETECTION : YES
LIVE DETECTION : YES
DIODE TEST : YES
CONTINUITY BUZZER : YES
LCD HIGH VOLTAGE ALERT : YES
FLASHLIGHT : YES
LOW BATTERY INDICATION : YES
AUTO POWER OFF : YES
DATA HOLD : YES
STANDARD ACCESSORIES UT121B: BATTERIES, TEST LEADS, TEMPERATURE PROBE, ENGLISH MANUAL
POWER : 2X1.5V AAA
DISPLAY : UT121B: 52X66MM
PRODUCT SIZE : UT121B: 143X74X17MM
PRODUCT NET WEIGHT : UT121B: 142G
STANDARD INDIVIDUAL PACKING : GIFT BOX, CARRYING BAG
. TRUE RMS
. AC 750V/DC 1000V VOLTAGE MEASUREMENT (UT121B)
. 60MΩ LARGE RESISTANCE MEASUREMENT (UT121B)
. 60MF LARGE CAPACITANCE MEASUREMENT (UT121B)
. FULL-SCALE INPUT PROTECTION
. NCV/LIVE MEASUREMENT
. LARGE SIZE LCD SCREEN
. 19MM ULTRA-THIN BODY
. 6000COUNTS
. INTELLIGENT IDENTIFICATION GEAR
UT121 SERIES FEATURE LARGE-SCREEN & ULTRA-THIN MULTIMETERS AND AUTO RANGE AND THEY CAN DISPLAY TWO MEASUREMENT RESULTS AT THE SAME TIME, WHICH IS CONVENIENT FOR HOME AND NON-PROFESSIONAL USERS. THEY ARE CONVENIENT AND FAST ELECTRONIC TOOLS.
