BRAND : STANLEY
ITEM NO.: JF7
ORIGIN : CHINA
MODEL : SXWTI-CPT-SCIS10
MATERIAL : STEEL
WHEEL MATERIAL : PU AND NYLON
OVERALL WIDTH OF FORK : 520/550/685 MM
FORK LENGTH : 1220 MM
HEIGHT WITHOUT HANDLE : 975 MM
MIN. HEIGHT OF FORK : 85 MM
MAX. HEIGHT OF FORK : 810 MM
DIAMETER - STEERING WHEEL : ¢180×50 MM
DIAMETER - FORK WHEEL : ¢74×50 MM
SERVICE WEIGHT : 100~120 KG
LOAD CAPACITY : 1000 KG
. LOAD ROLLERS: TANDEM, PU 74 X 50MM
. DURABLE STEEL FRAME WITH A POWDER-COATED FINISH FOR CORROSION RESISTANCE
. POLYURETHANE-COATED WHEELS FOR SMOOTH MOVEMENT AND FLOOR PROTECTION
. HANDLE: ERGONOMICALLY DESIGNED WITH A 3-POSITION CONTROL LEVER FOR LIFTING, NEUTRAL, AND LOWERING OPERATIONS
. IDEAL FOR WAREHOUSES, MANUFACTURING UNITS, AND WORKSHOPS WHERE LIFTING AND TRANSPORTING HEAVY LOADS IS A ROUTINE TASK.
. SUITABLE FOR LOADING AND UNLOADING OPERATIONS, ASSEMBLY LINES, AND STORAGE AREAS
APPLICABLE SCOPE:
JF7 HIGH-LIFT TRUCK IS A TWO-WAY TRANSPORTATION TOOL FOR EITHER GOODS CARRYING OR HIGH-LIFTING.
IT POSSESSES FEATURES SUCH AS STABLE LIFTING AND LOWERING, EASY OPERATION, SAFETY AND RELIABILITY, ETC. AND APPLIES TO THE USES ON HARD FLAT GROUND OR PLATFORM.

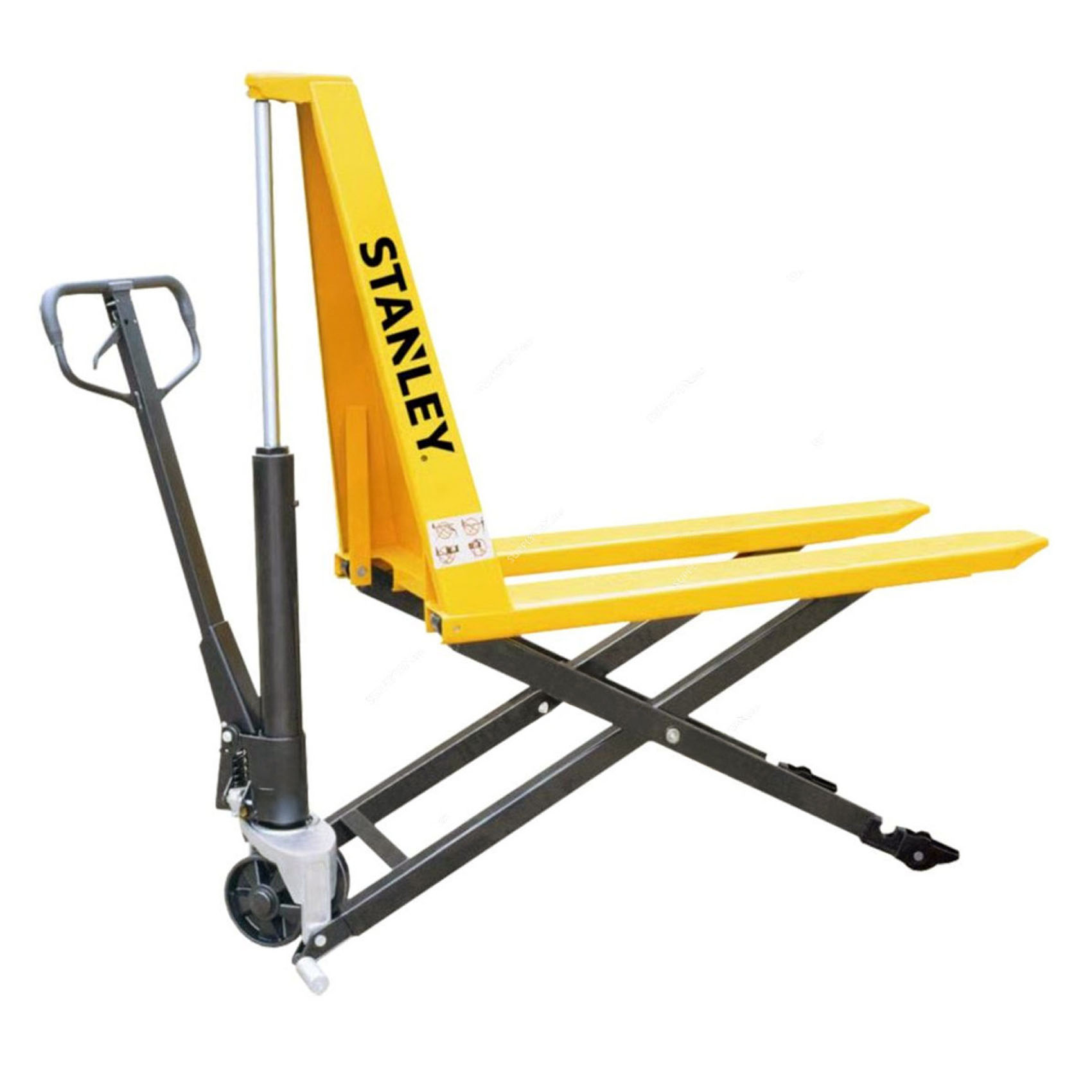

THE STANLEY SCISSOR PALLET TRUCK IS A ROBUST MATERIAL HANDLING SOLUTION DESIGNED TO COMBINE THE FUNCTIONALITIES OF A PALLET TRUCK AND A LIFT TABLE. WITH A LOAD CAPACITY OF 1000 KG, IT IS SUITABLE FOR VARIOUS INDUSTRIAL APPLICATIONS.
