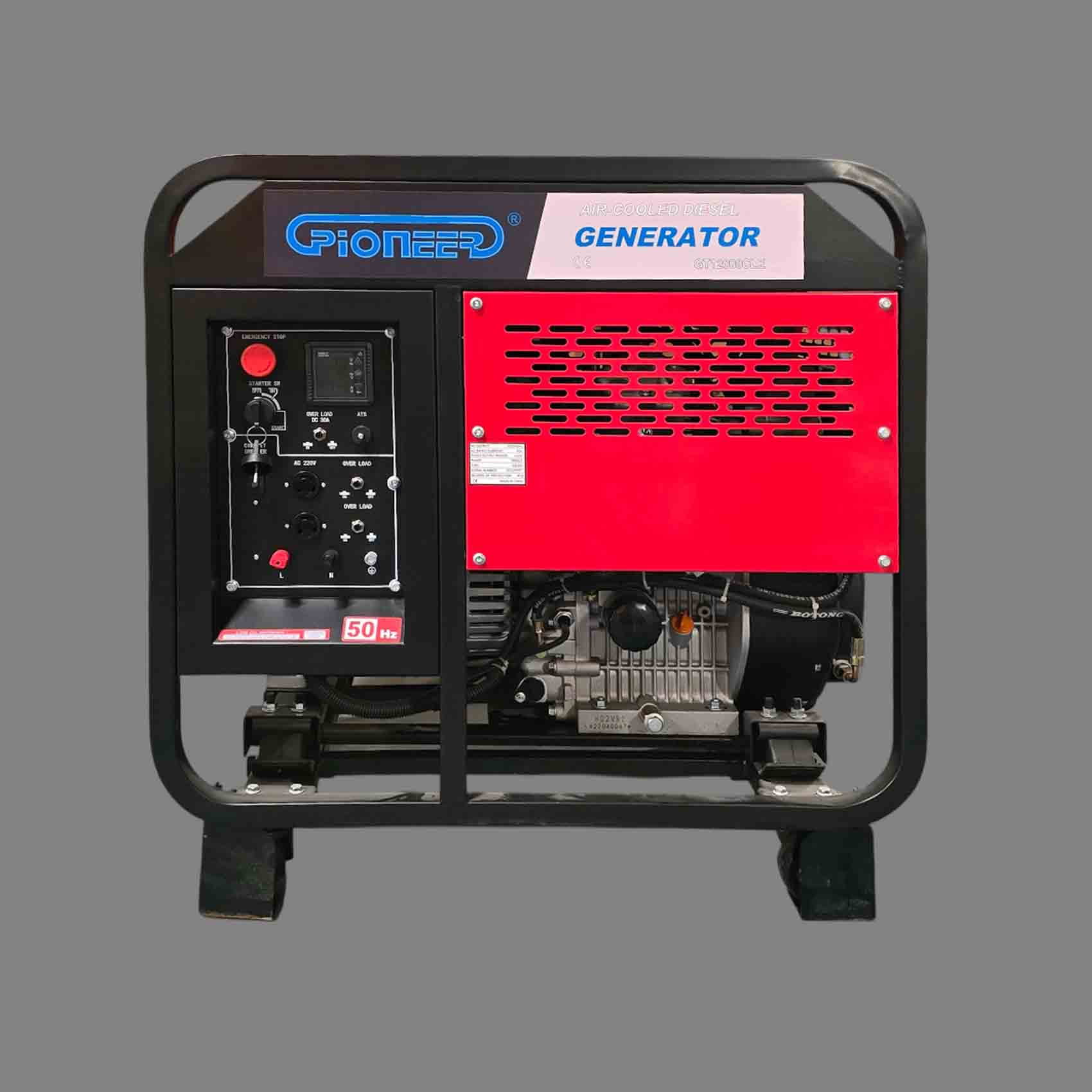

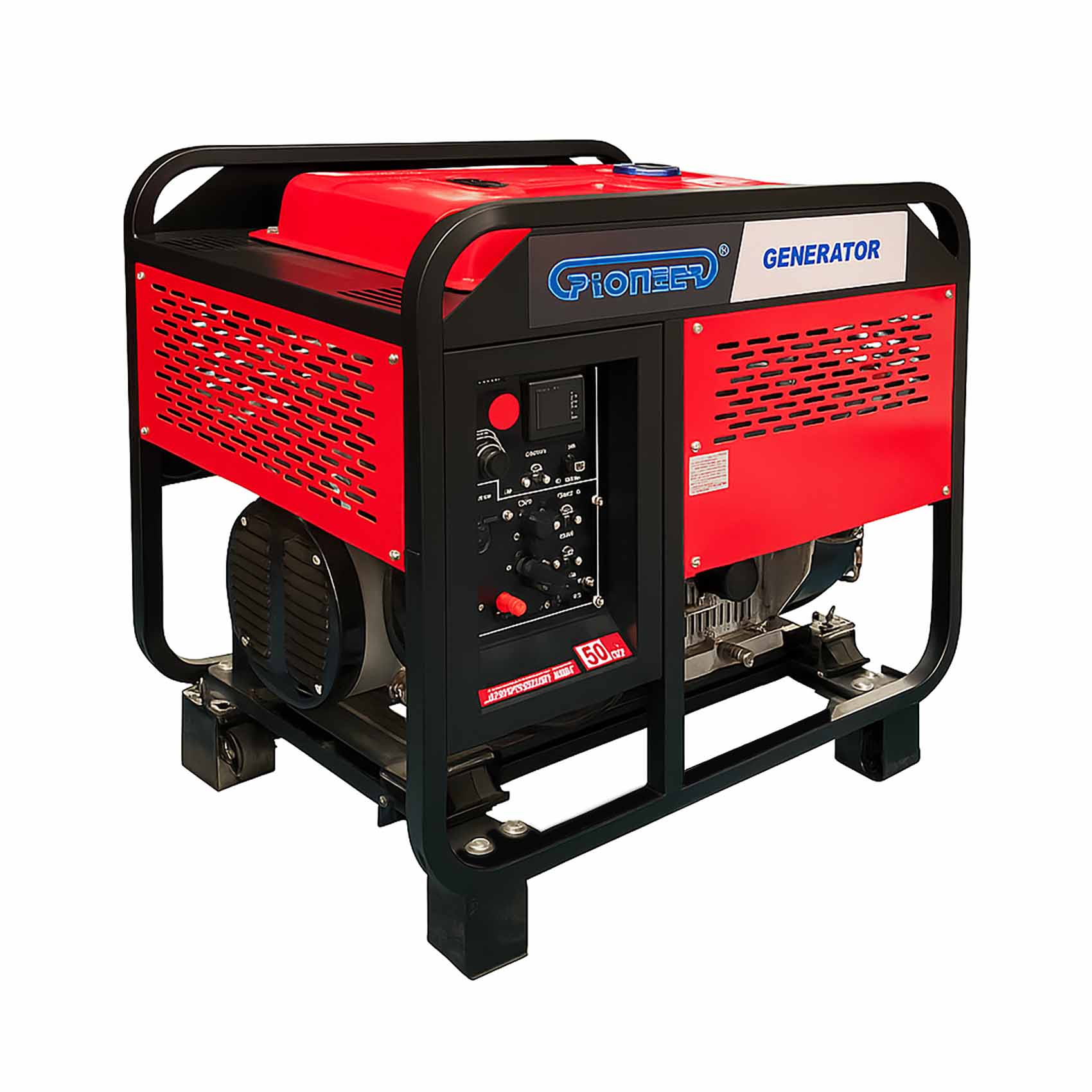

BRAND : PIONEER
ITEM NO.: GT12000CLE
ORIGIN : CHINA
SOUND : 97 DB
ALTERNATOR :
FREQUENCY : 50/60 HZ
SPEED : 3000/3600 RPM
RATED VOLTAGE : 220/230
RATED POWER : 10/11 KW
MAX. POWER : 10.5/11.5 KW
POWER FACTOR : 1/0.8
PHASE NO : SINGLE
EXCITATION WAY : SELF-EXCITING AND VOLTAGE-CONSTANT WITH AVR
INSULATION : F

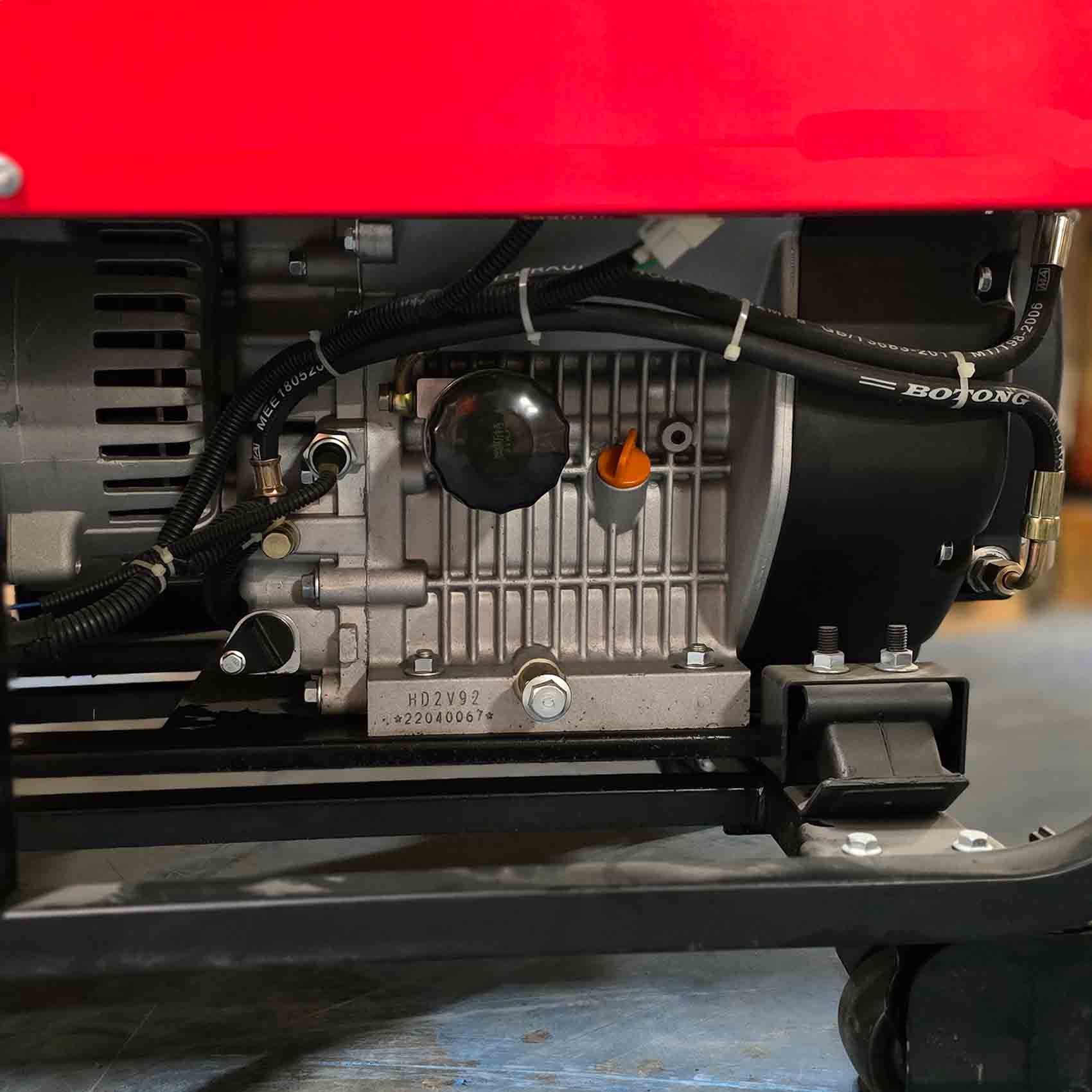

DIESEL ENGINE :
ENGINE MODEL : HD2V88
TYPE : V-TWIN DOUBLE CYLINDER - AIR-COOLED
BOREXSTROKE : 88X75 MM
TOTAL DISPLACEMENT : 0.912 L
COMPRESSION RATIO : 19.5:1
RATED POWER : 13.5 KW/3000 RPM - 14.5 KW/3600 RPM
FUEL : 0#(SUMMER) - 10#(WINTER) - 35#(CHILL COLD) DIESEL OIL
LUBE : SAE15W40(CF GRADE ABOVE)
GENERATOR :
FUEL CONSUMPTION : ≤340 G/KW.H

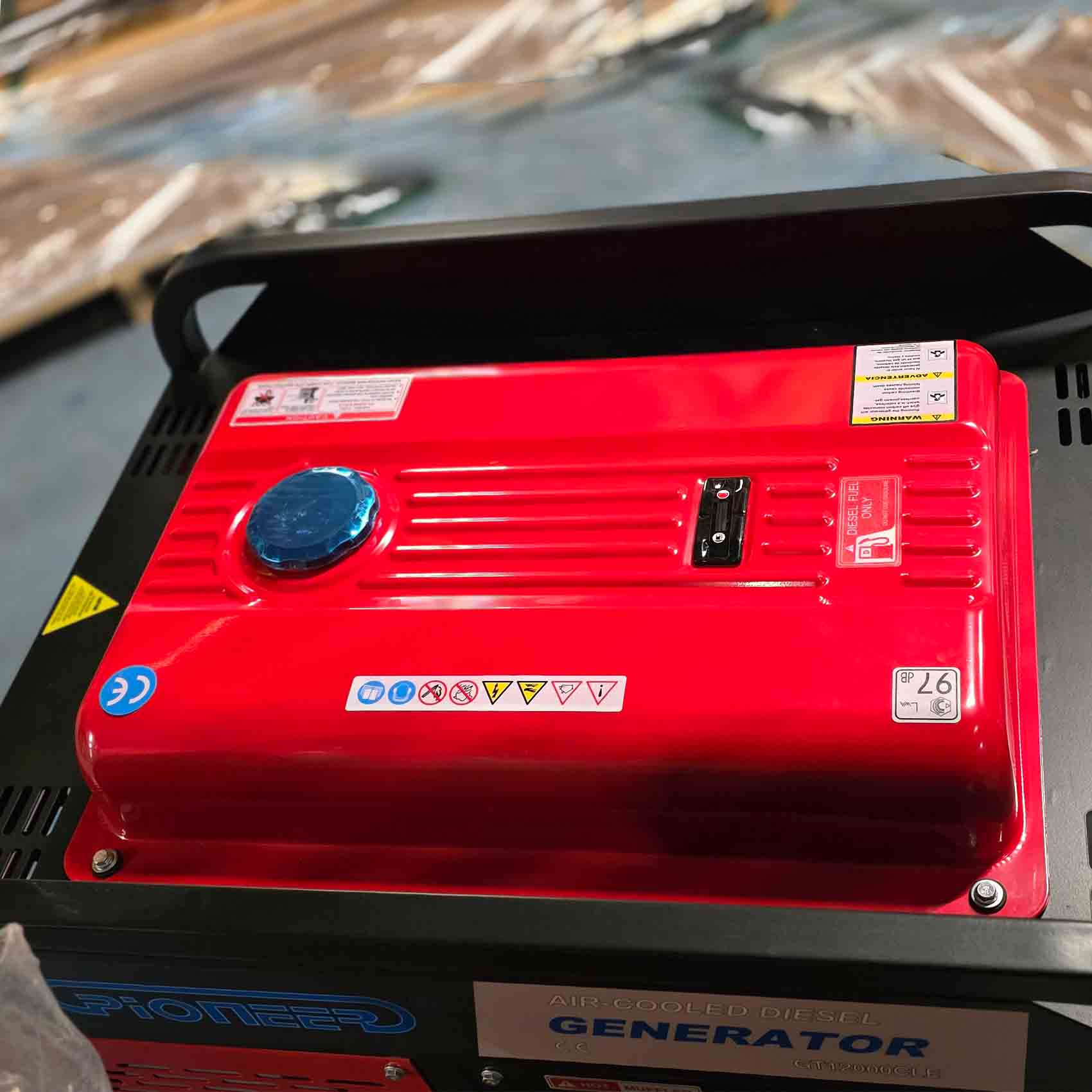

CAPACITY OF FUEL TANK : 28 L
WORKING TIME AT FULL FUEL TANK : 10 - 9.5 HR
NOISE LEVEL : 80 - 82 DBA@7M
GROSS WEIGHT : 199 - 211 KG

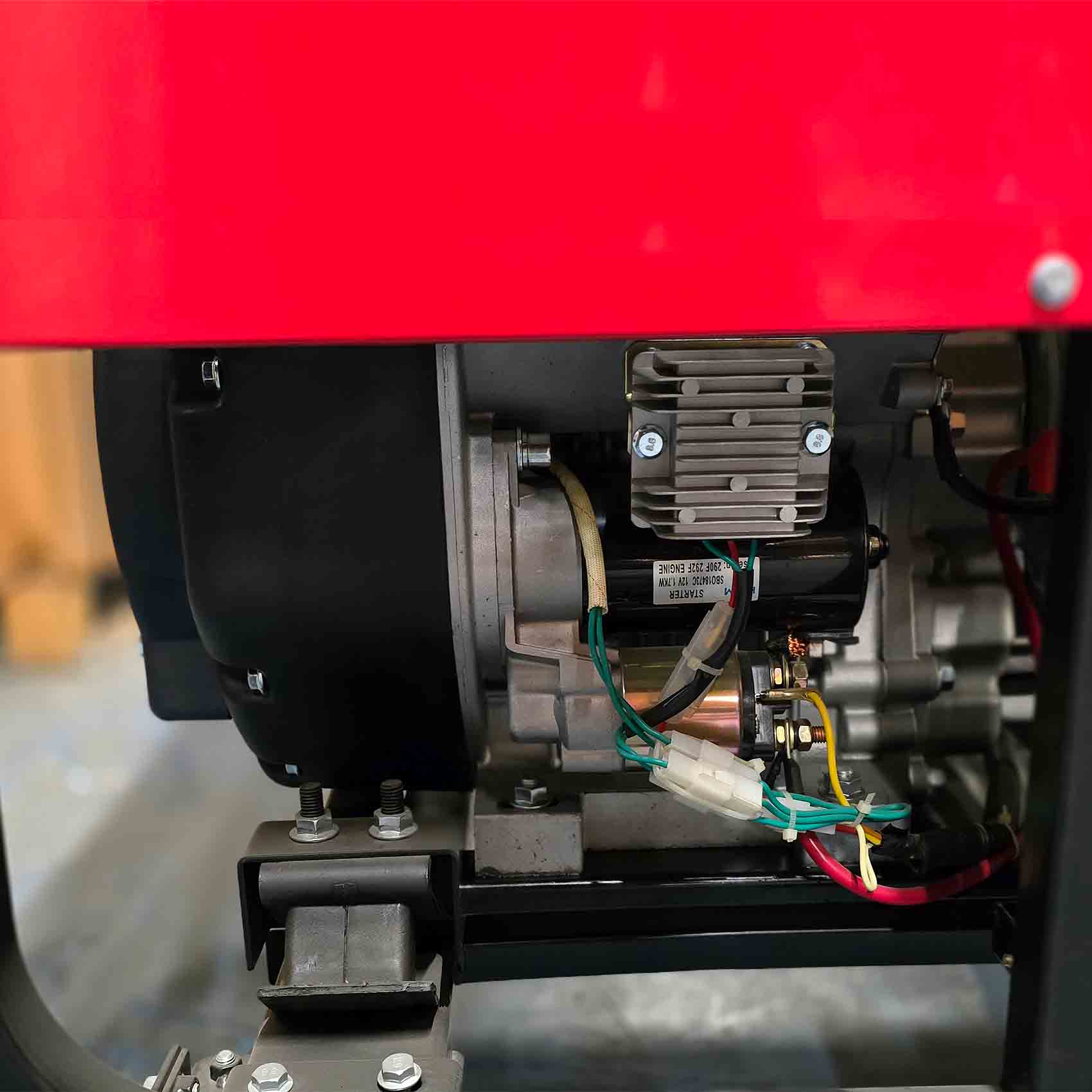

STARTING SYSTEM : ELECTRIC START
STRUCTURE TYPE : OPEN FRAME
OVERALL DIMENSIONS : 855X655X890 MM
