BRAND : PIONEER

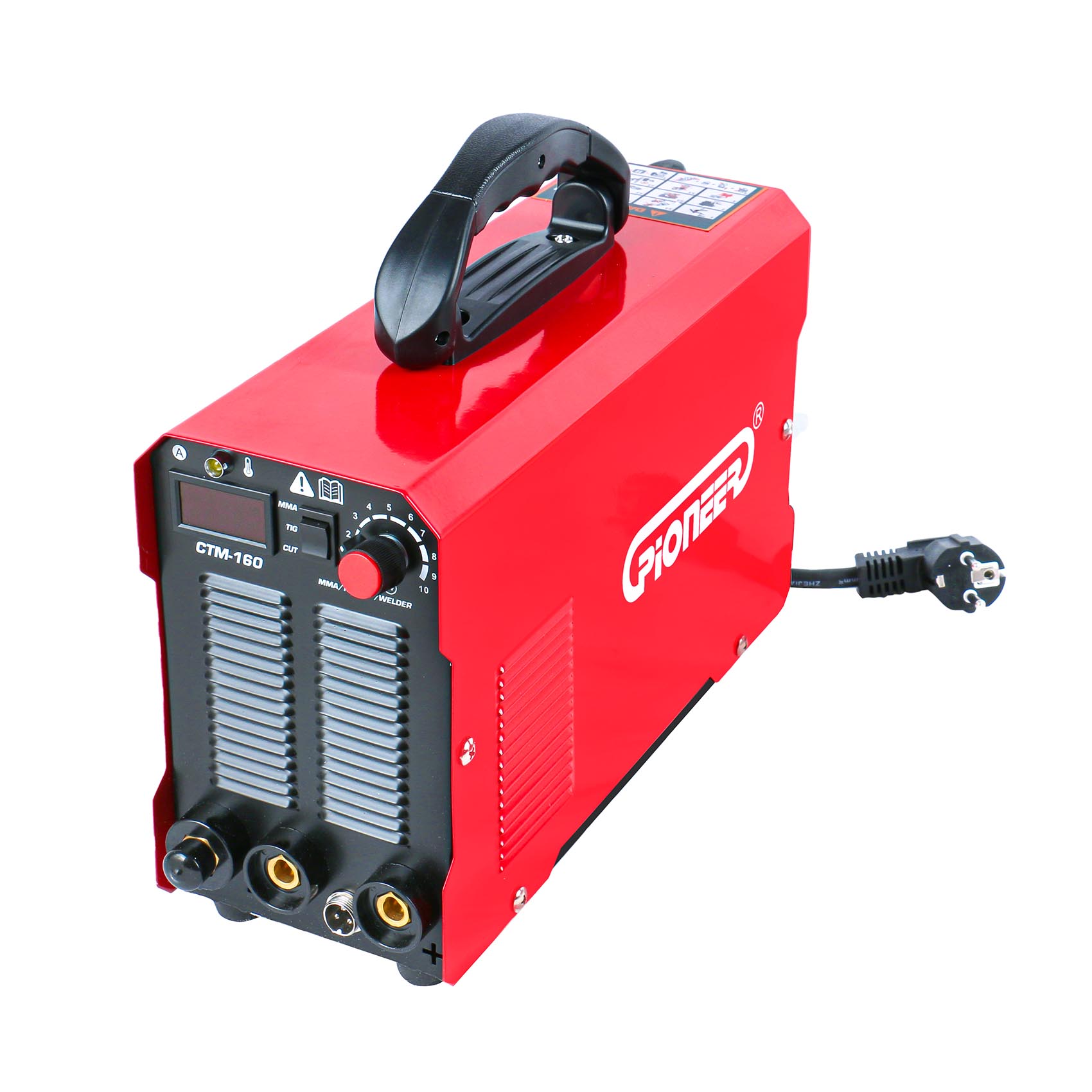

ITEM NO.: CTM-160
ORIGIN : CHINA
MULTIPROCESS : STAINLESS STEEL, CARBON STEEL, LOW ALLOY STEEL, COPPER, ALUMINUM AND OTHER METAL SHEET MATERIALS.
POWER INPUT AC(V) : 1PH 220V ±15%
POWER INPUT FREQUENCY(HZ) : 50/60
MAX. LOAD POWER CAPACITY : 4.5 (CUT) / 5.0 (MMA) / 3.1 (TIG)
RATED CURRENT INPUT(A) : 29.3 (CUT) / 32.2 (MMA) / 20.0 (TIG)
RATED OUTPUT CURRENT(A)/VOLTAGE(V) : 10-40 (CUT) / 10-160 (MMA) / 10-180 (TIG)
MAX. CUTTING CURRENT (A) : 160
OPEN CIRCUIT VOLTAGE DC(V) : 253 (CUT) / 70 (TIG/MMA)
RATED DUTY CYCLE(%) : 40% (CUT/TIG/MMA)
MAX.CUTTING THICKNESS(MM) : 15
IP GRADE : IP21
INSULATION GRADE : F
DIMENSIONS : 402X275X300 MM
1.MULTI FUNCTIONAL 3 IN 1：CUT/MMA/TIG
2.HIGHLY CONVENIENT , OPERATE IT ANYWHERE.
3.DRAG TORCH ARC STARTING .
4.CAPABLE OF CUTTING AND WELDING VARIOUS METALS.
5.MAX 15MM CUTTING THICKNESS.

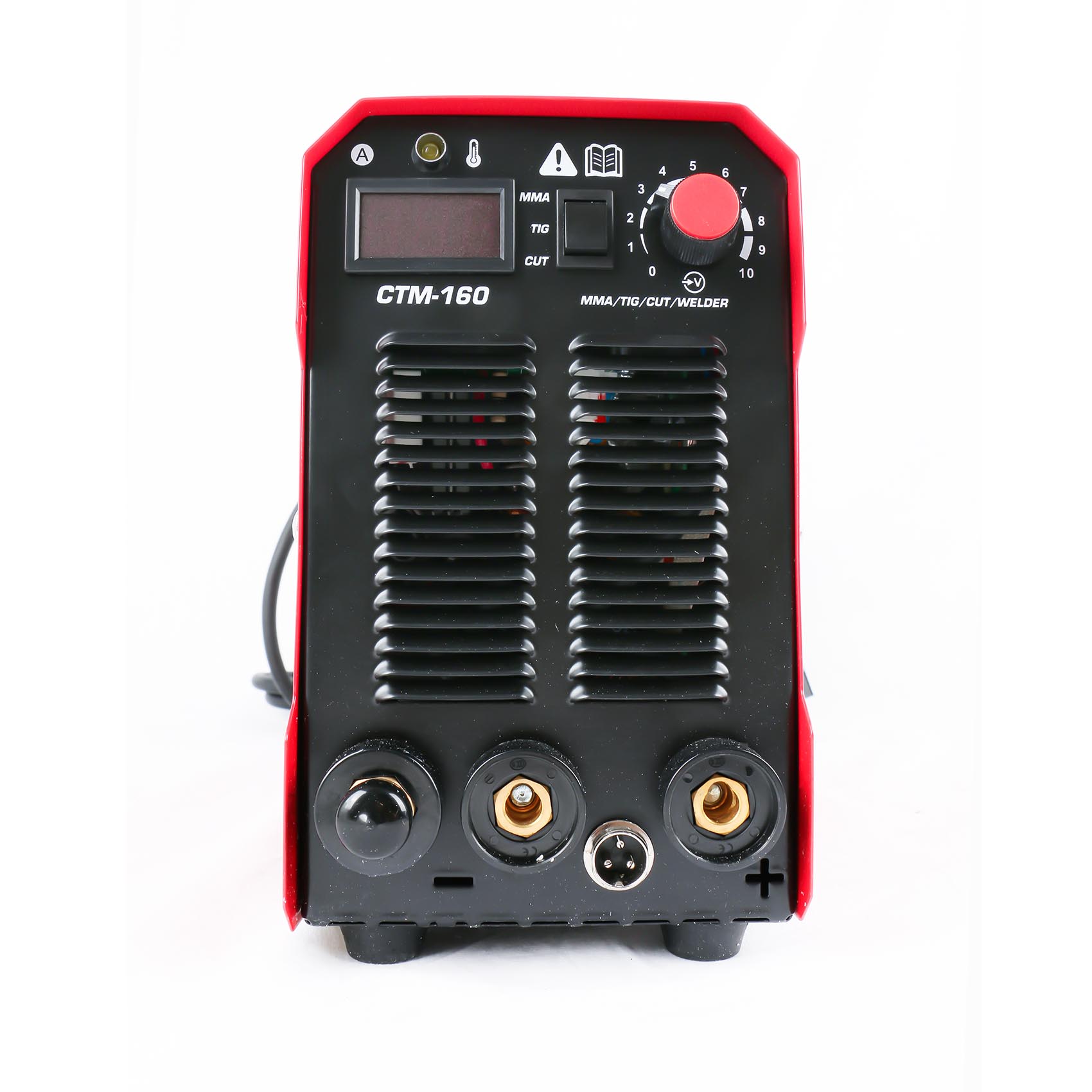

6.LED CONTROL DISPLAY.
7.SMART COOLING & OVERHEATING PROTECTION.
8.NARROW CUTTING SEAM, CLEAN CUTTING EDGE, ANTI DEFORMATION.
ITEM NO.: CTM-160
ORIGIN : CHINA
MULTIPROCESS : STAINLESS STEEL, CARBON STEEL, LOW ALLOY STEEL, COPPER, ALUMINUM AND OTHER METAL SHEET MATERIALS.
POWER INPUT AC(V) : 1PH 220V ±15%
POWER INPUT FREQUENCY(HZ) : 50/60
MAX. LOAD POWER CAPACITY : 4.5 (CUT) / 5.0 (MMA) / 3.1 (TIG)
RATED CURRENT INPUT(A) : 29.3 (CUT) / 32.2 (MMA) / 20.0 (TIG)
RATED OUTPUT CURRENT(A)/VOLTAGE(V) : 10-40 (CUT) / 10-160 (MMA) / 10-180 (TIG)
MAX. CUTTING CURRENT (A) : 160
OPEN CIRCUIT VOLTAGE DC(V) : 253 (CUT) / 70 (TIG/MMA)
RATED DUTY CYCLE(%) : 40% (CUT/TIG/MMA)
MAX.CUTTING THICKNESS(MM) : 15
IP GRADE : IP21
INSULATION GRADE : F
DIMENSIONS : 402X275X300 MM
1.MULTI FUNCTIONAL 3 IN 1：CUT/MMA/TIG
2.HIGHLY CONVENIENT , OPERATE IT ANYWHERE.
3.DRAG TORCH ARC STARTING .
4.CAPABLE OF CUTTING AND WELDING VARIOUS METALS.
5.MAX 15MM CUTTING THICKNESS.
6.LED CONTROL DISPLAY.
7.SMART COOLING & OVERHEATING PROTECTION.
8.NARROW CUTTING SEAM, CLEAN CUTTING EDGE, ANTI DEFORMATION.
