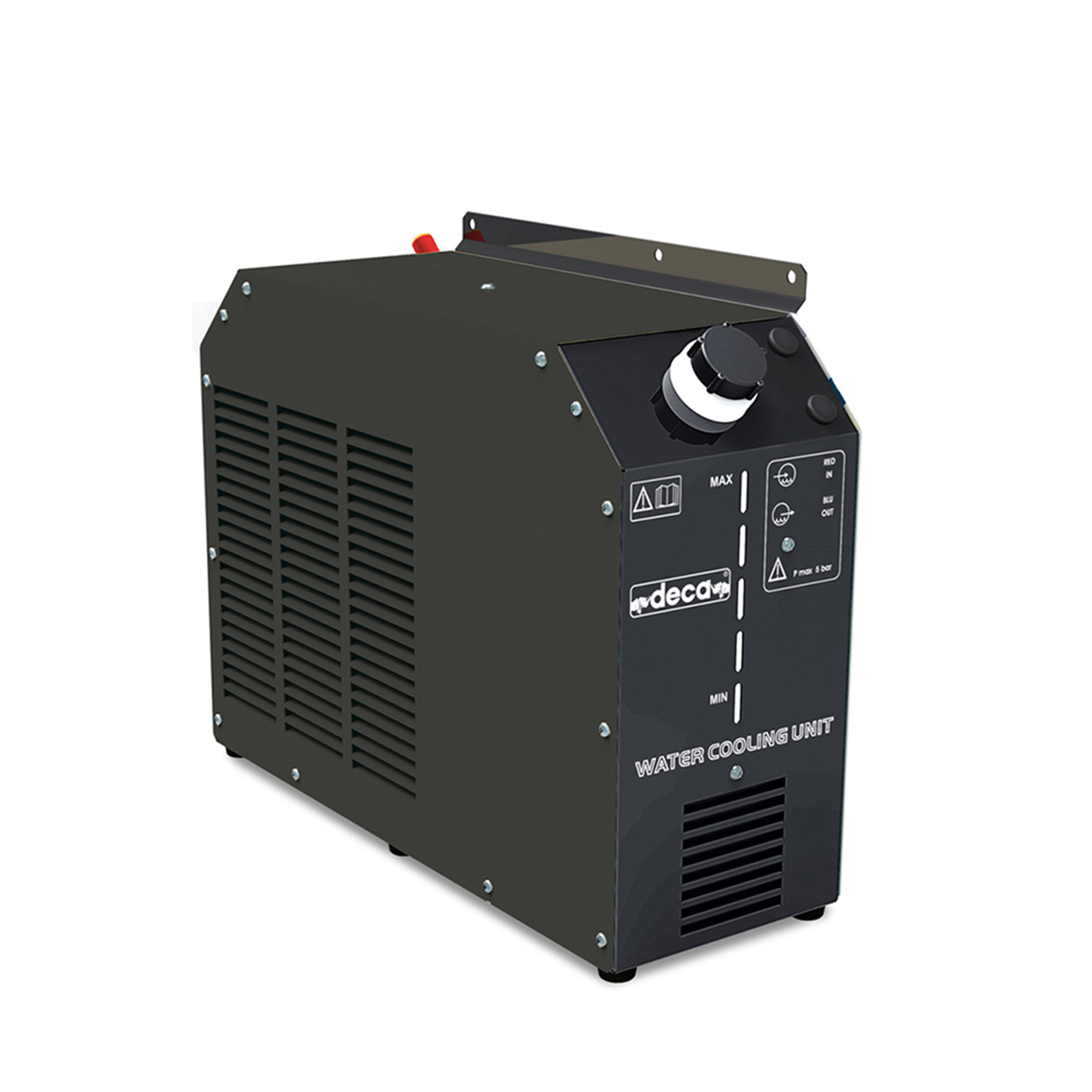

WATER COOLING UNIT

BRAND : DECA

ITEM NO.: 010666

ORIGIN : ITALY

LIQUID : ETHYLENE GLYCOL, PROPYLENE GLYCOL, PURE OR DILUTED WITH WATER IN A RATIO OF 50:50

NOMINAL VOLTAGE IN THE POWER SUPPLY NETWORK : 220V ±10%

PHASE : SINGLE

COOLANT TANK CAPACITY : 5 L

COOLING : H2O

MODEL : WU16

SUITABLE FOR : MIG: D-MIG 735TD, 750TD, 760TD

PACKAGE DIMENSION : L 600 X W 450 X H 430 MM

PACKAGE WEIGHT : 15 (DEVICES) | 16 (WITH PACKAGING)

1. THE DECA WU 16 LAB WATER COOLING UNIT IS USED WITH WELDING TORCHES IN TIG OR MIG MODES.
2. THE DEVICE HAS A SWITCH (ON/OFF) , INLET AND OUTLET PIPES, AND A PLUG THAT CLOSES THE TANK OPENING.
3. 5 LITERS OF LIQUID ARE POURED INSIDE. ON THE FRONT PART THERE IS A PANEL FOR MONITORING THE LEVEL OF THE LIQUID.
4. WHEN THE AMOUNT OF ETHYLENE GLYCOL OR PROPYLENE GLYCOL IS CRITICALLY LOW, THE DEVICE AUTOMATICALLY STOPS ITS OPERATION.
5. DEPENDING ON THE INTENSITY OF USE, SCHEDULED MAINTENANCE BY THE OPERATOR (HOW TO CLEAN THE HEAT EXCHANGER FROM DUST WITH DRY AND CLEAN AIR) OR UNSCHEDULED MAINTENANCE BY QUALIFIED PERSONNEL SHOULD BE CARRIED OUT FROM TIME TO TIME.

THE DECA WU 16 LAB LIQUID COOLING UNIT IS DESIGNED TO COOL TORCHES OPERATING IN TIG OR MIG WELDING MODE. THE UNIT IS POWERED BY A SINGLE-PHASE NETWORK. 5 LITERS OF LIQUID (ETHYLENE GLYCOL, PROPYLENE GLYCOL, PURE OR DILUTED WITH WATER IN A RATIO OF 50:50) ARE POURED INSIDE .
