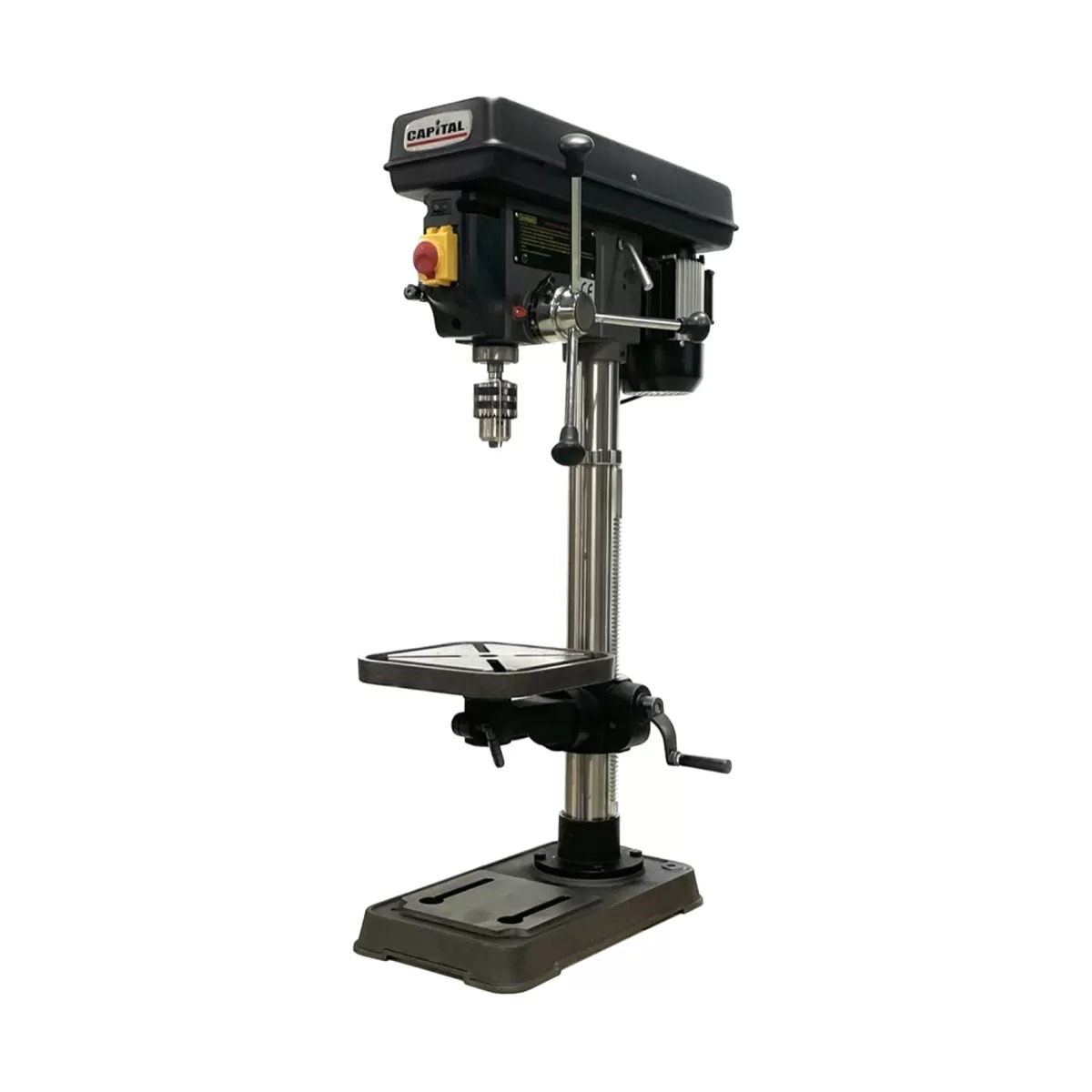

BRAND : CAPITAL
ITEM NO. : DP33016B
ORIGIN : CHINA
MOTOR :
RATED VOLTAGE AND FREQUENCY : 220V - 50HZ
POWER : 550W
RPM : 1400
PHASE : 1
CLASS : B
DRILL CAPACITY : 16MM
CHUCK CAPACITY : 16MM
SWING : 13" (330MM)
SPINDLE TAPER : MT2
SPEED RANGE (50HZ) : 12 (180-2740RPM)
SPINDLE TRAVEL : 80MM
DISTANCE, SPINDLE TO COLUMN : 165 MM
MAX. DISTANCE CHUCK TO TABLE : BENCH 371 MM - FLOOR 727 MM
MAX. DISTANCE CHUCK TO BASE : BENCH 548 MM - FLOOR 1212 MM
COLUMN DIAMETER : 73MM
RACK & PINION : YES
BASE SIZE : 450X270MM
TABLE SIZE : 254X254MM
OVERALL HEIGHT : 1050MM
N.W./G.W.: 46/48KG
PACKING SIZE : 898X495X290MM
