BRAND : PIONEER
ITEM NO.: U-256TPRO
ORIGIN : CHINA
POWER SUPPLY :
NOISE LEVEL : ≤75 DB
TURNTABLE : 28"
EXTERNAL CLAMPING : 12~26"
INTERNAL CLAMPING : 16~28"
MAX. RIM DIAMETER : ≤1143MM(45")
MAXIMUM RIM WIDTH : ≤4457 MM(18")
AIR SUPPLY PRESSURE : 8-10BAR (116-145 PSI)
PACKAGE DIMENSION : 1130X900X950MM (3.7X3.0X3.1FT)
NET WEIGHT 285KG (628LBS)
GROSS WEIGHT : 330 KG 728 LBS
. ROLLER-BEAD PRESSING
. ROLLER-BEAD LIFTING
. 360° ROTATABLE COMBINATION TYRE PRESSING HEAD-BEAD PRESSING
. 360° ROTATABLE COMBINATION TYRE PRESSING HEAD - QUICK WHEEL CLAMPING OR OFF/ON FROM THE TURNTABLE
. AUTOMATIC MOUNT/DEMOUNT HEAD T03
. LEVER-LESS - NO NEED TO LIFT THE BEAD MANUALLY
. THE PATENTED LEVER-LESS TOOL PROVIDES UP TO 500KG OF POWER.
. LASTIC PROTECTOR
. TRIPLE PROTECTION, AVOIDING SCRATCHES ON THE STEEL RING
. PLASTIC MOUNT/DEMOUNT HEAD PROTECTOR;
. PLASTIC JAW PROTECTOR;
. BEAD BREAKER SHOVEL PROTECTOR.

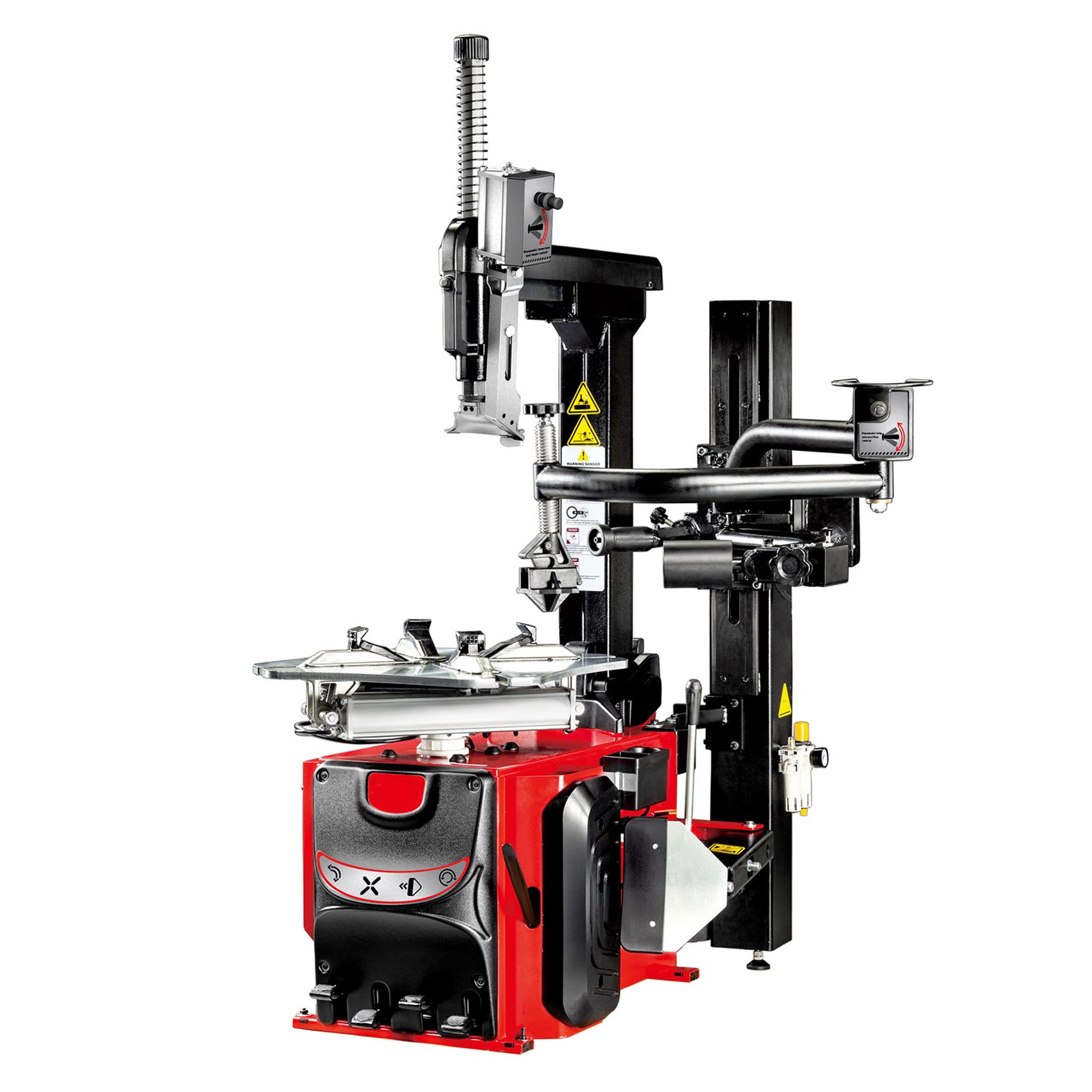

PIONEER U-256TPRO IS AN AUTOMATIC MOUNT/DEMOUNT HEAD TILTING TYPE TYRE CHANGER WITH A STANDARD AUTOMATIC MOUNT/DEMOUNT HEAD T03, 28" TURNTABLE, AND 12-26" EXTERNAL CLAMPING AND 16-28" INTERNAL CLAMPING. IT FEATURES AN INDEPENDENT HELP ARM SYSTEM WITH A MULTI-FUNCTIONAL DESIGN FOR BEAD PRESSING, LIFTING, LOOSENING, AND WHEEL POSITIONING. THE AUTOMATIC MOUNT/DEMOUNT HEAD T03 IS LEVER-LESS AND PROVIDES UP TO 500KG OF POWER. THE TYRE CHANGER ALSO HAS A PLASTIC PROTECTOR WITH TRIPLE PROTECTION TO AVOID SCRATCHES ON THE STEEL RING.
