BRAND : PIONEER
ITEM NO.: 307-035
ORIGIN : CHINA

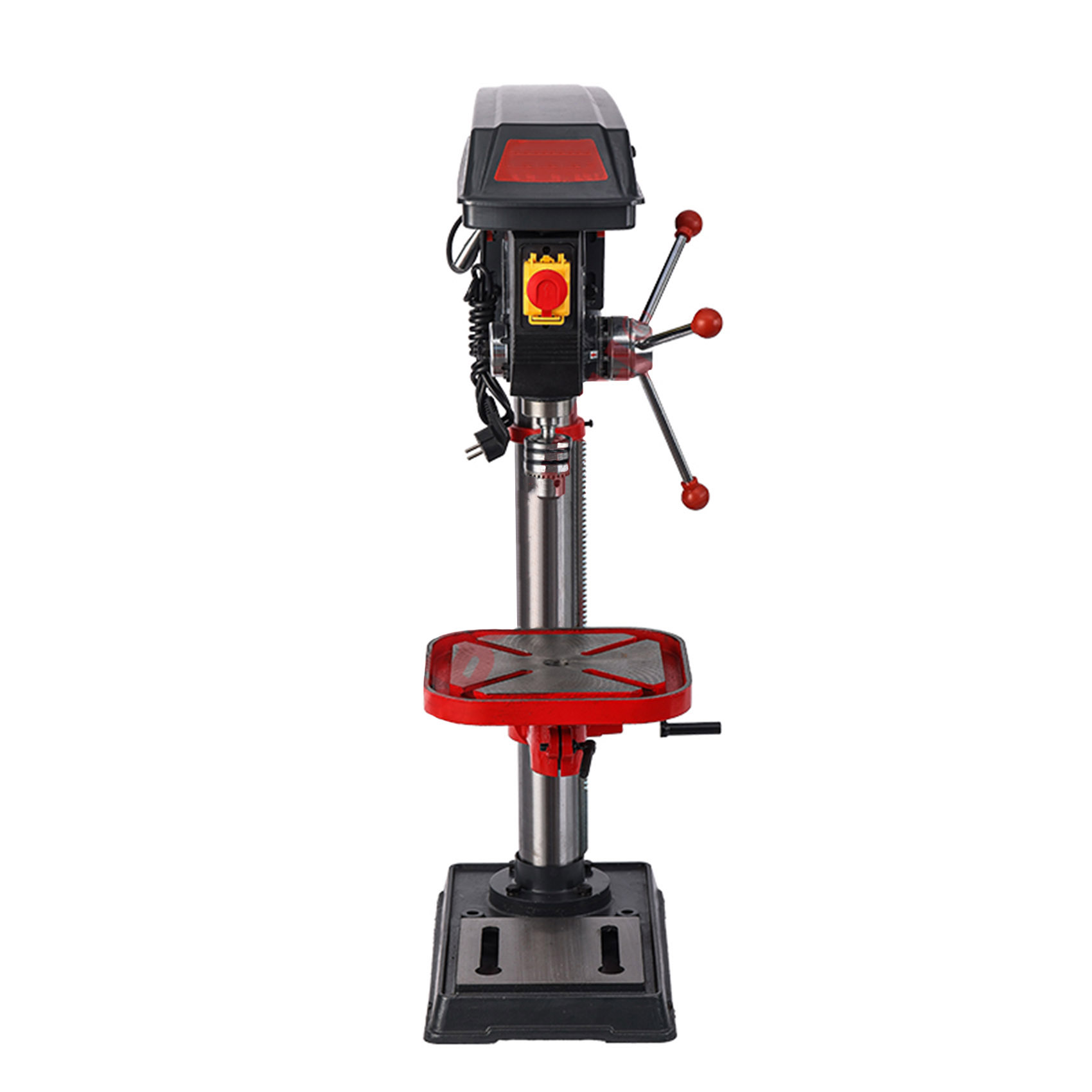

MODEL : ZJ4120
MOTOR :
RATED VOLTAGE AND FREQUENCY : 220V - 50HZ
MOTOR POWER : 550W
PHASE : 1
AMP : 2.5A
POLS : 4
RPM : 1420
CLASS : B
MAX DRILLING DIAMETER : 20MM (3/4'')
SWING : 360MM
SPINDLE TRAVEL : 85MM

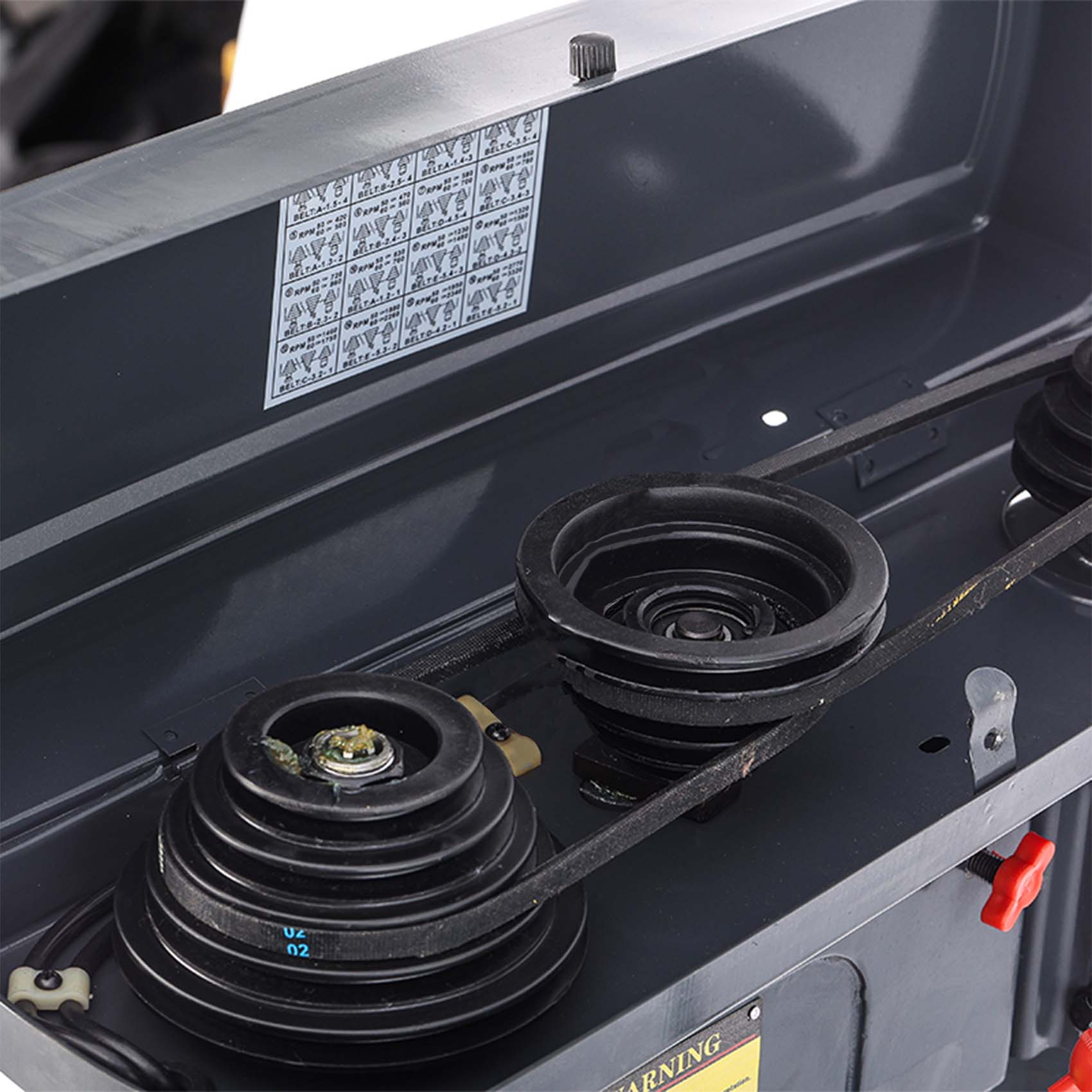

RANGE OF SPEED 50 : 180-2770 RPM
CLASS OF SPEED : 16
SPINDLE TAPER : MT#2
TABLE SIZE : 290*290MM
BASE SIZE : 460MM X 272MM
COLUMN DIAMETER : Φ72MM
MAX. DISTANCE FROM SPINDLE AXIS TO SURFACE OF COLUMN : 180 MM
MAX. DISTANCE FROM SPINDLE END TO SURFACE OF TABLE : 585 MM
MAX. DISTANCE FROM SPINDLE END TO SURFACE OF BASE : 805 MM
HEIGHT : 85MM
NET WEIGHT : 63KG
GROSS WEIGHT : 66KG
PACKING SIZE (L X W X H) : 810X490X270 MM

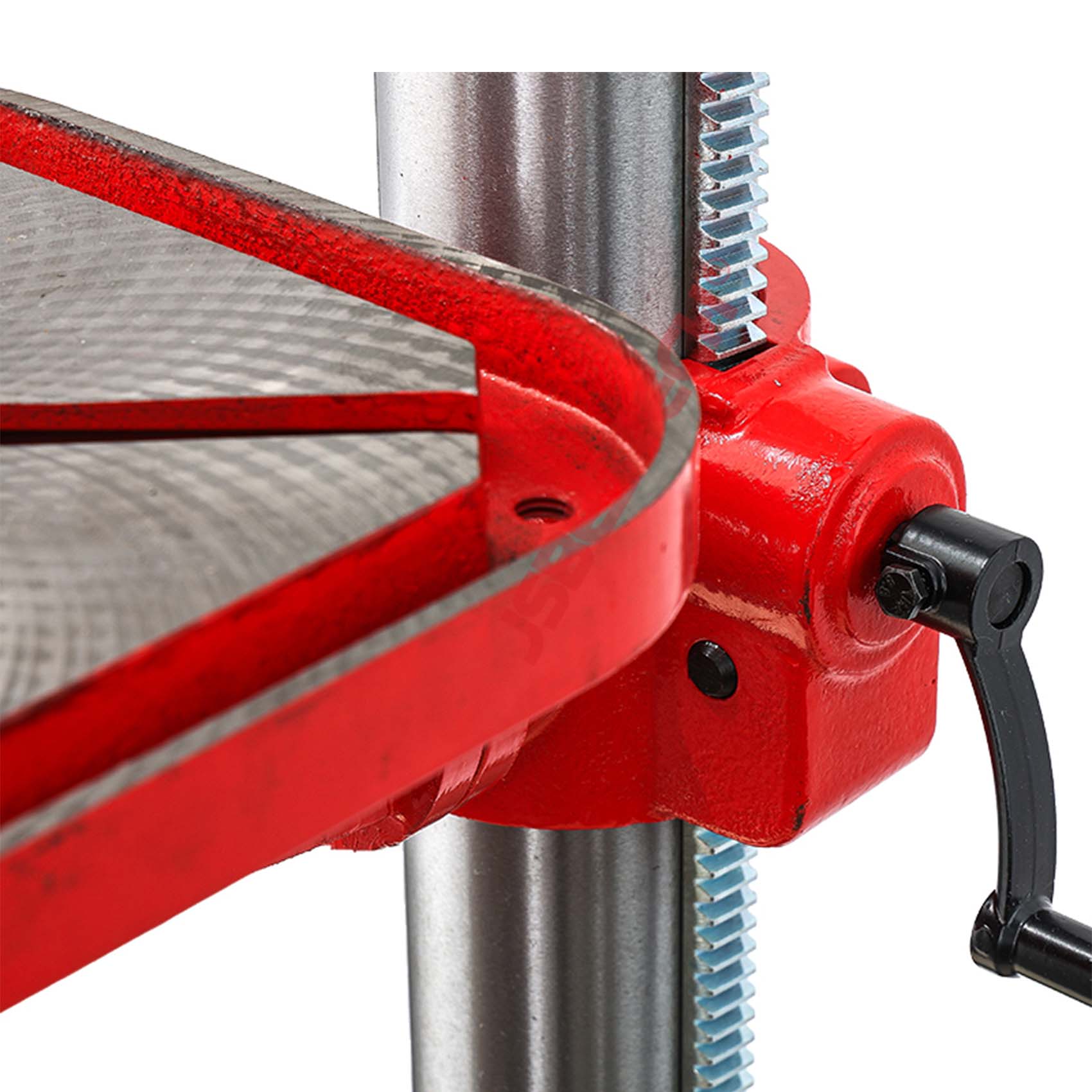

. 45 DEGREE TABLE TILT OFFERS A MULTITUDE OF DRILLING ANGLES

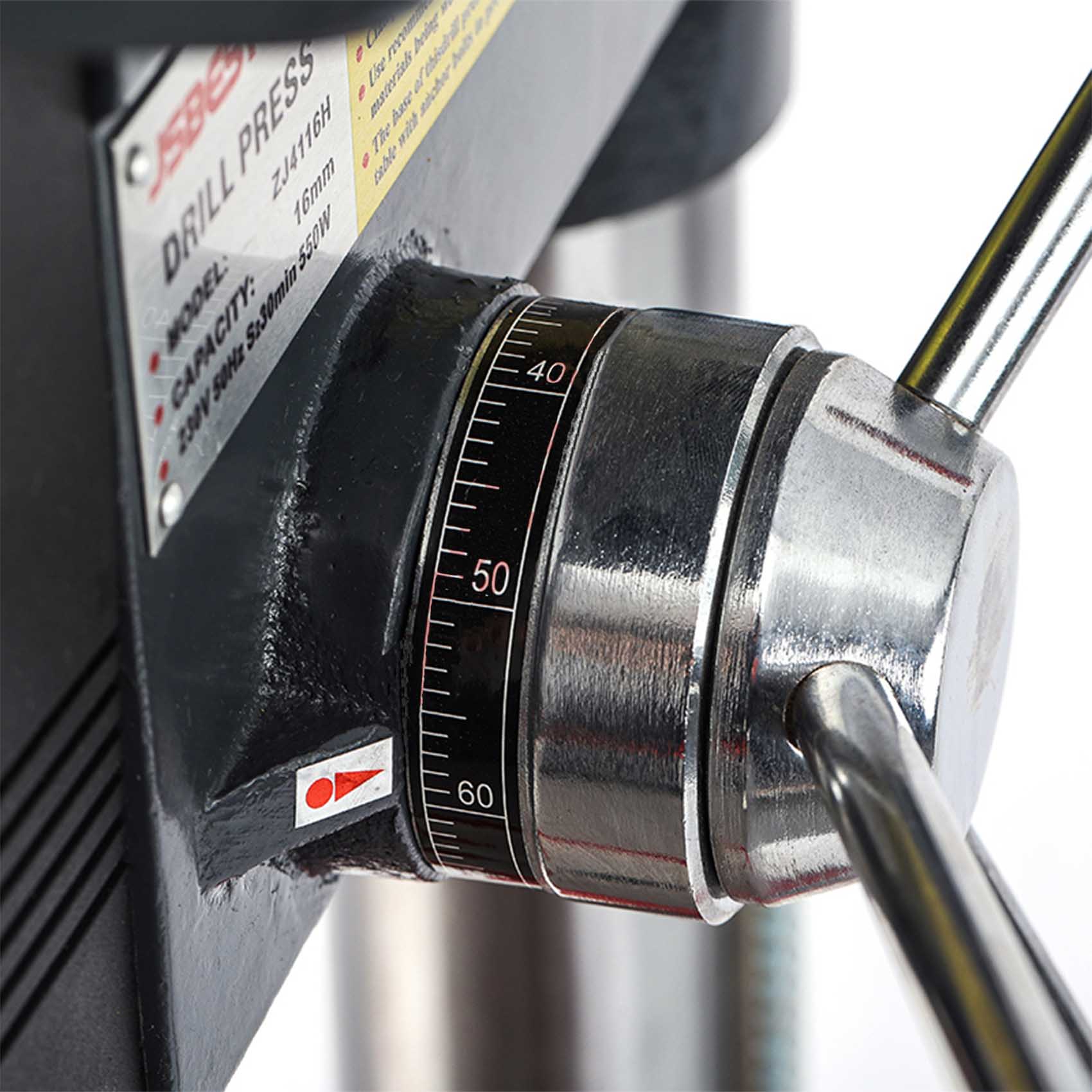

. DEPTH LOCK WITH A BALL KNOB HANDLE FOR PRECISE ADJUSTMENTS THAT STAY TRUE,
. BUILT-IN CHUCK KEY STORAGE KEEPS THE CHUCK CLOSE AT HAND AND EASY TO FIND
. VARIABLE SPINDLE SPEED CONTROL, WITH SPEED DISPLAY
