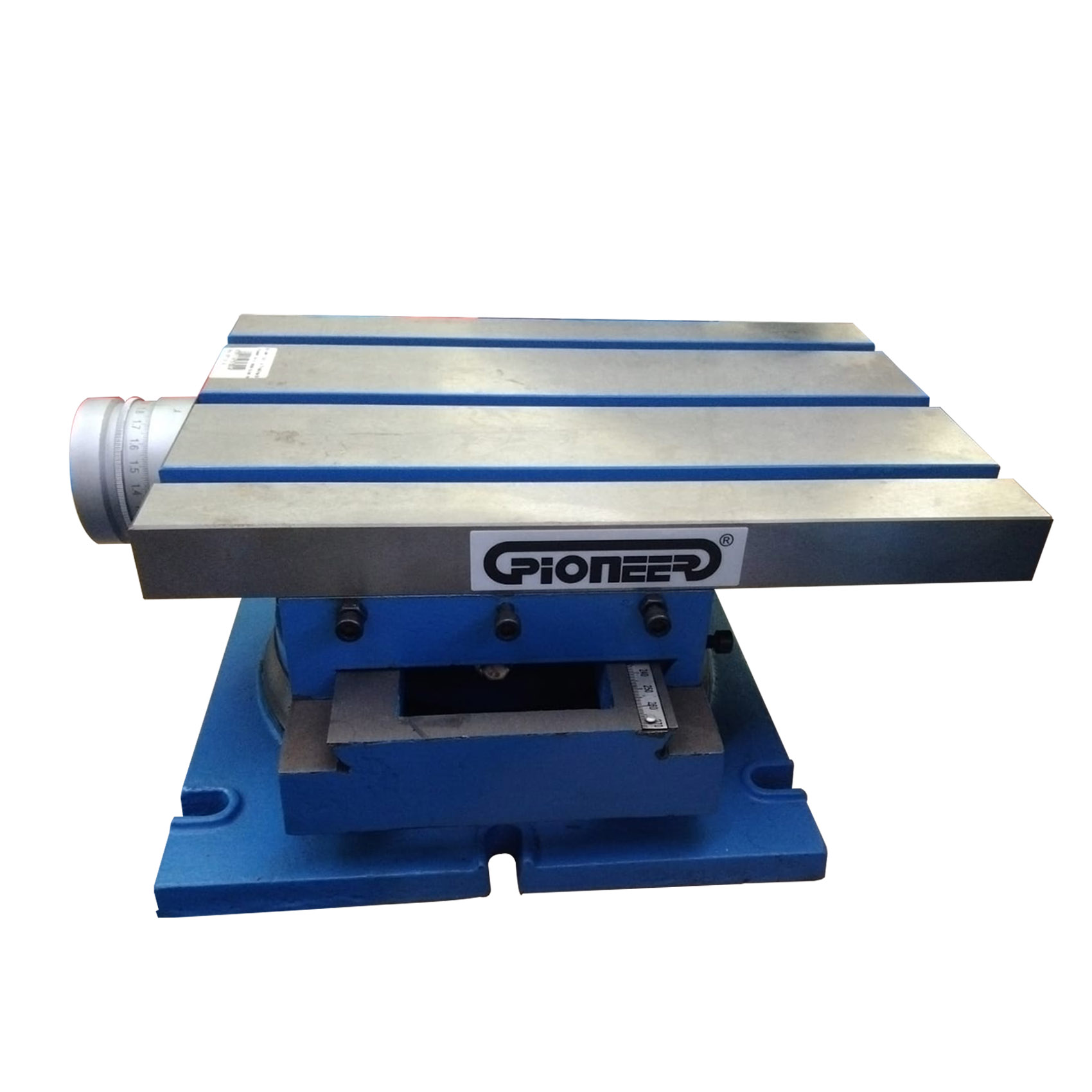

CROSS SLIDE TABLE
PIONEER (SHM) CROSS SLIDE TABLE CAST IRON AKP204 360-007 | WORKING TABLE | EASY AND SECURE ATTACHMENT | LEADSCREW IDLE STROKE 0.06MM - X,Y AXIS RETICLE TOLERANCE 0.05MM - SURFACE PARALLELISM 0.03MM-100MM
| Product Code: | CHIPSHMAKP204 |
| Availability: | In Stock |
| Type: | Vices and Clamps |
| Shipping: | Free Delivery |
BRAND : PIONEER
ITEM NO.: 360-007
ORIGIN : CHINA
MODEL : AKP-204
MATERIAL : CAST IRON CROSS SLIDE TABLE - WORKTABLE SURFACE MATERIAL IS MADE OF CAST #250.
LEADSCREW IDLE STROKE : 0.06MM
X,Y AXIS RETICLE TOLERANCE : 0.05MM
SURFACE PARALLELISM : 0.03MM/100MM
TYPE : WORKING TABLE
PACKING SIZE : 56X44X21.5
NET WEIGHT : 44 KG
GROSS WEIGHT : 49 KG
HIGH PRECISION
THE PIONEER AKP-204 CROSS SLIDE TABLE (ITEM NO. 360-007) IS A HIGH-PRECISION WORKING TABLE MADE FROM DURABLE CAST #250 IRON, DESIGNED FOR ACCURATE POSITIONING IN MACHINING TASKS. WITH A LEADSCREW IDLE STROKE OF JUST 0.06MM, X AND Y AXIS RETICLE TOLERANCE OF 0.05MM, AND A SURFACE PARALLELISM OF 0.03MM PER 100MM, THIS UNIT ENSURES EXCEPTIONAL STABILITY AND PRECISION. WEIGHING 44 KG NET AND 49 KG GROSS, IT COMES IN A COMPACT 56X44X21.5 CM PACKAGE—IDEAL FOR WORKSHOP USE REQUIRING FINE-TUNED TABLE MOVEMENT.
