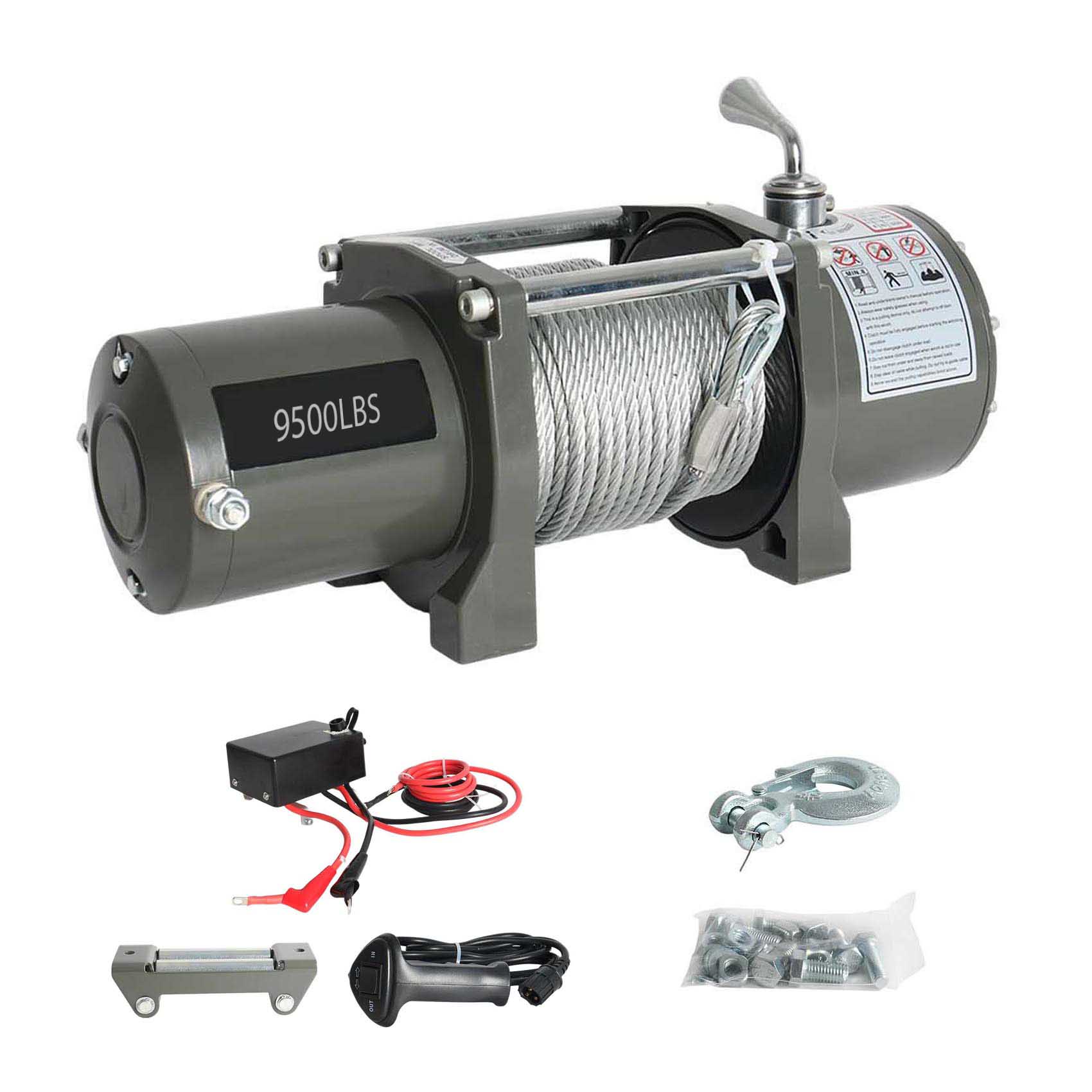

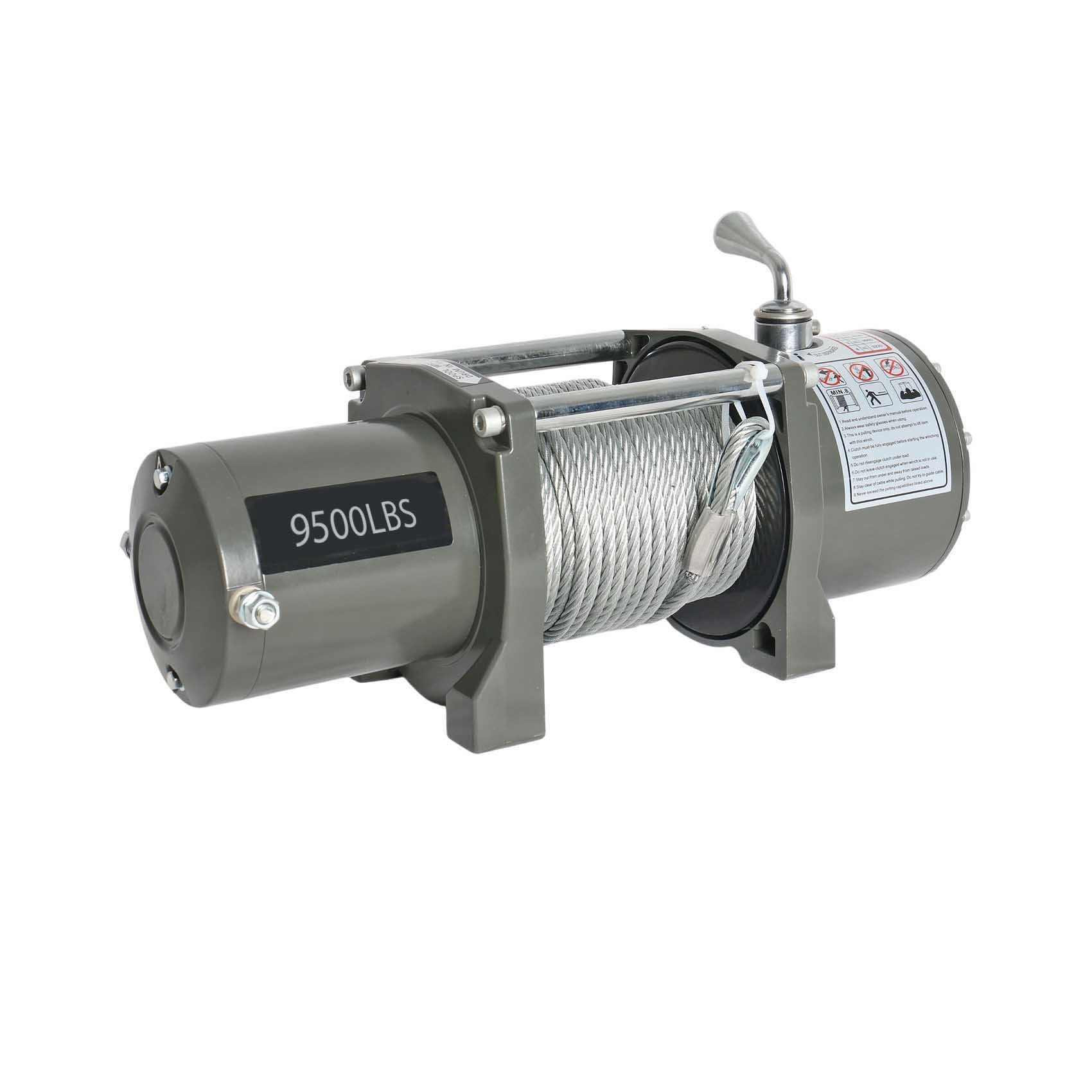

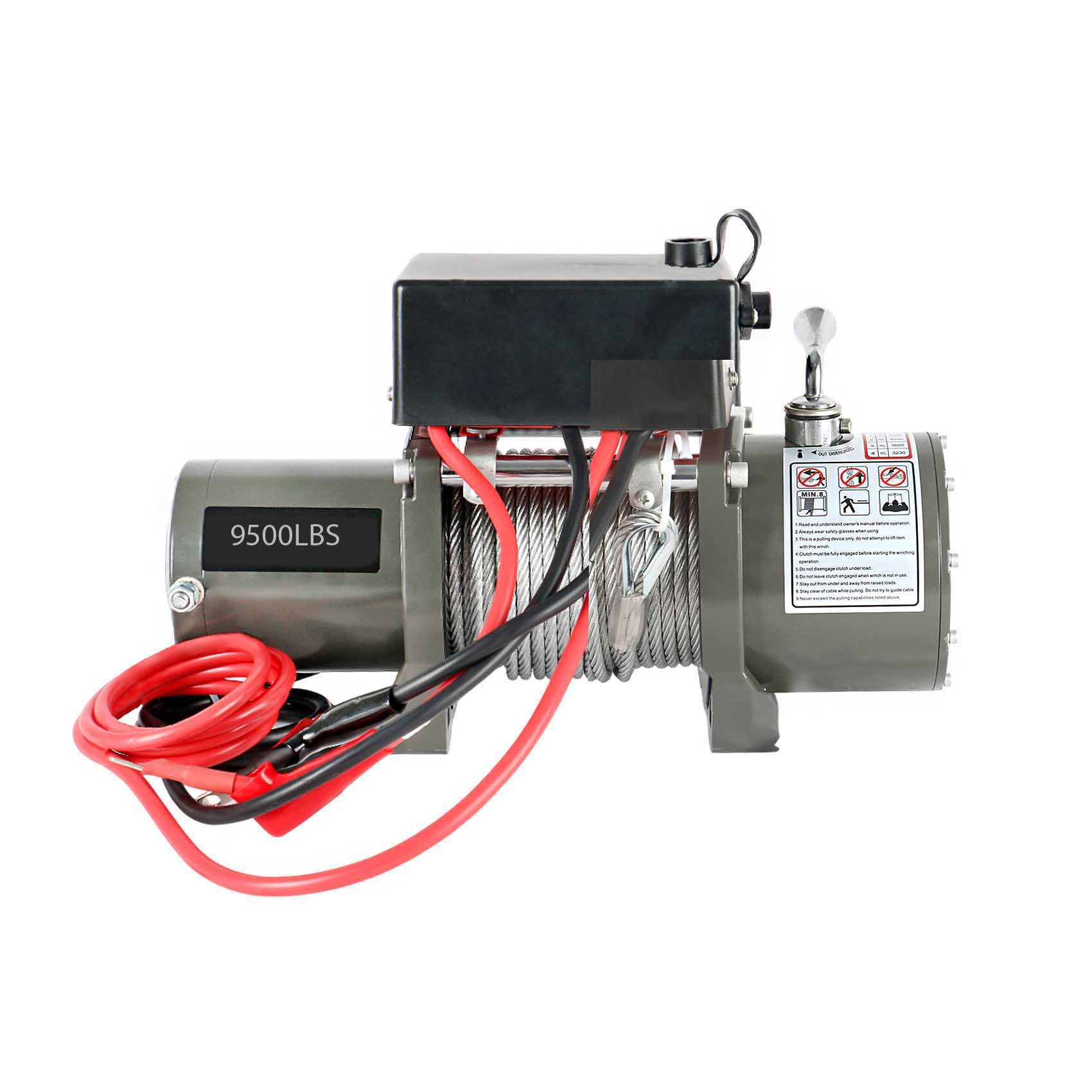

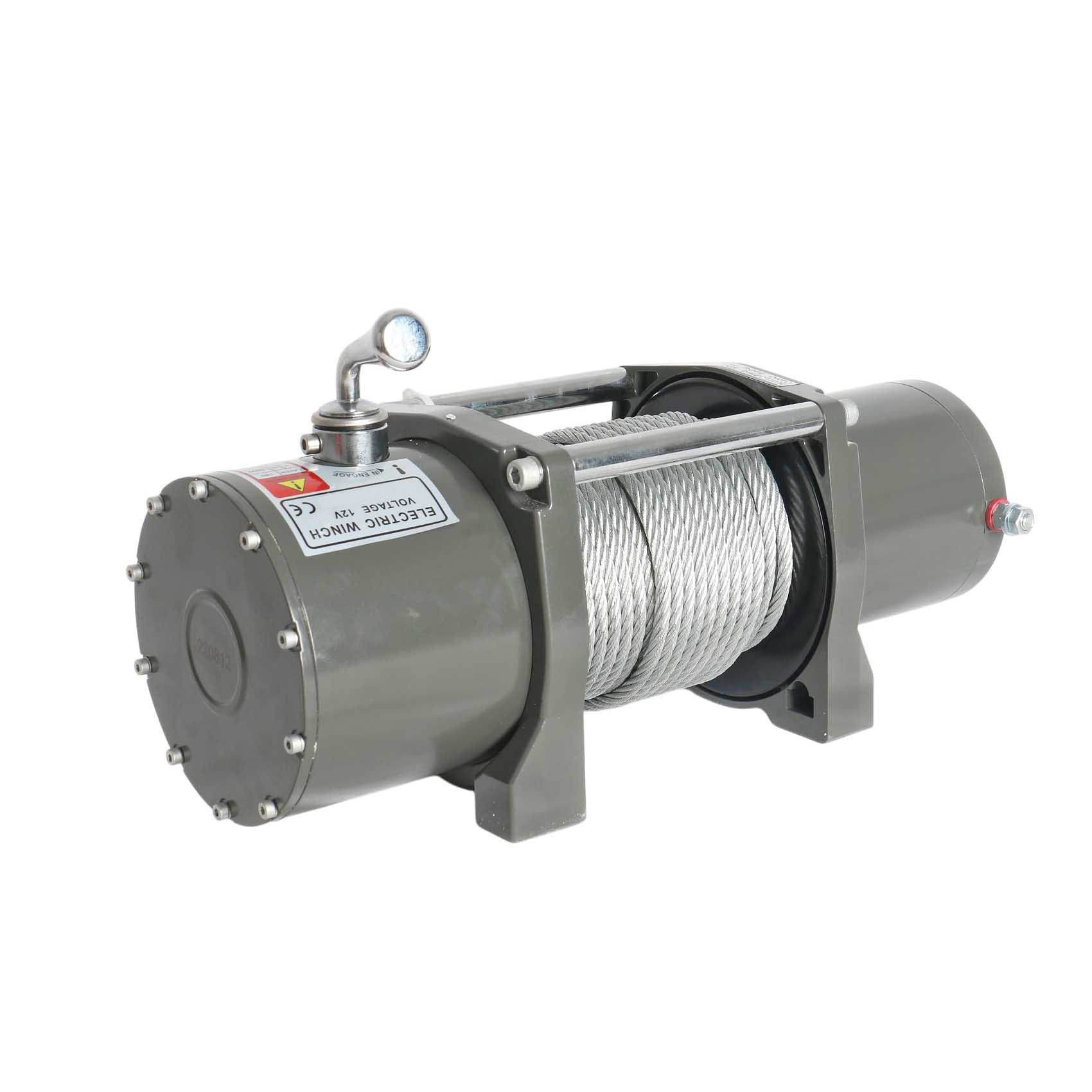

BRAND : PIONEER
ITEM NO.: YWINC9500D
CAPACITY : 9500LBS
RATED LINE PULL : 9500LB(4310KG) SINGLE-LINE
MOTOR : 6.0HP/4.4KW 12V,SERIES WOUND
GEAR TRAIN : 3-STAGE PLANETARY
GEAR REDUCTION RATIO : 172.8:1
CLUTCH : TURN 180°
CABLE: Φ3/8*Χ 92"" (Φ9.5MM X 28M)
DRUM SIZE : 2.51"" X 8.82""(¢ 64MM × 224MM)
OVERALL DIMENSIONS : (LXWXH)21.7""X 6.3"" X 6.8""(552× 160× 172/MM)
GROSS WEIGHT : 89 LBS(40KG)
DUTY CYCLE : INTERMITTENTLY
FAIRLEAD : 4-WAY ROLLER FAIRLEAD
PACKAGE : 1 PC/BOX ,22.4""X 13"" X 9.9""(570X 330X 250/MM )
MOUNTING BOLT PATTERN : 10"" X 4.5""(254MM X 114.3MM)
. GOOD QUALITY SERIES, HIGH ASSEMBLY, MORE LONGER LIFE TIME
. STABLE PERFORMANCE: THIS PRODUCT IS MADE OF HIGH-QUALITY STEEL WIRE, STRONG AND DURABLE, NOT EASY TO RUST, CAN BE USED FOR A LONG TIME.
. CONVENIENT DESIGN: THIS ELECTRIC WINCH HAND TOOL IS DESIGNED WITH A HANDLE, WHICH IS CONVENIENT FOR YOU TO CARRY AND STORE.
. MULTI-PURPOSE: THIS ELECTRIC WINCH CAN BE USED FOR CAR, TRUCK, RV, GARAGE , ETC. IT IS VERY SUITABLE FOR HOME AND COMMERCIAL USE.
ITEM NO.: YWINC9500D
CAPACITY : 9500LBS
RATED LINE PULL : 9500LB(4310KG) SINGLE-LINE
MOTOR : 6.0HP/4.4KW 12V,SERIES WOUND
GEAR TRAIN : 3-STAGE PLANETARY
GEAR REDUCTION RATIO : 172.8:1
CLUTCH : TURN 180°
CABLE: Φ3/8*Χ 92"" (Φ9.5MM X 28M)
DRUM SIZE : 2.51"" X 8.82""(¢ 64MM × 224MM)
OVERALL DIMENSIONS : (LXWXH)21.7""X 6.3"" X 6.8""(552× 160× 172/MM)
GROSS WEIGHT : 89 LBS(40KG)
DUTY CYCLE : INTERMITTENTLY
FAIRLEAD : 4-WAY ROLLER FAIRLEAD
PACKAGE : 1 PC/BOX ,22.4""X 13"" X 9.9""(570X 330X 250/MM )
MOUNTING BOLT PATTERN : 10"" X 4.5""(254MM X 114.3MM)
. GOOD QUALITY SERIES, HIGH ASSEMBLY, MORE LONGER LIFE TIME
. STABLE PERFORMANCE: THIS PRODUCT IS MADE OF HIGH-QUALITY STEEL WIRE, STRONG AND DURABLE, NOT EASY TO RUST, CAN BE USED FOR A LONG TIME.
. CONVENIENT DESIGN: THIS ELECTRIC WINCH HAND TOOL IS DESIGNED WITH A HANDLE, WHICH IS CONVENIENT FOR YOU TO CARRY AND STORE.
. MULTI-PURPOSE: THIS ELECTRIC WINCH CAN BE USED FOR CAR, TRUCK, RV, GARAGE , ETC. IT IS VERY SUITABLE FOR HOME AND COMMERCIAL USE.
