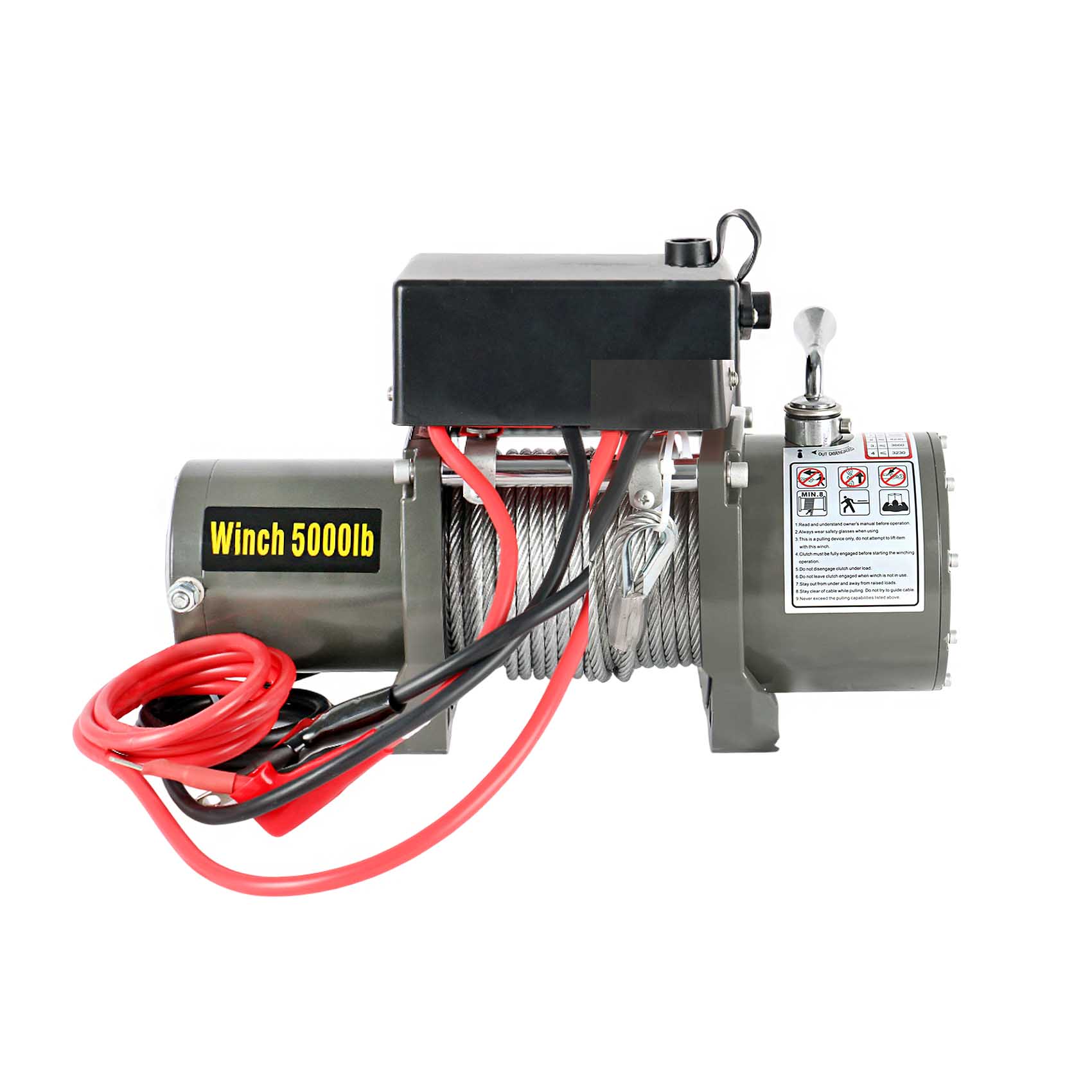

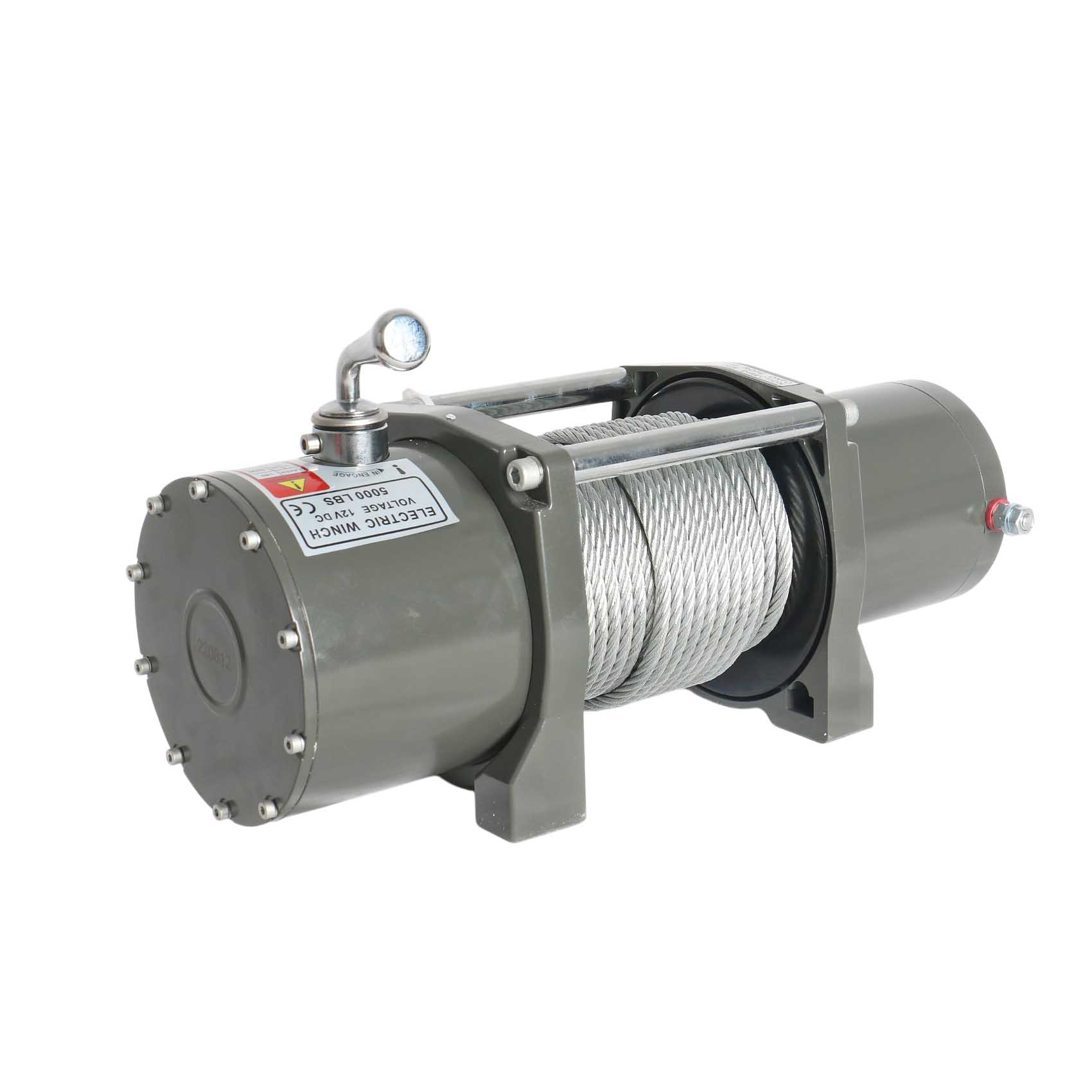

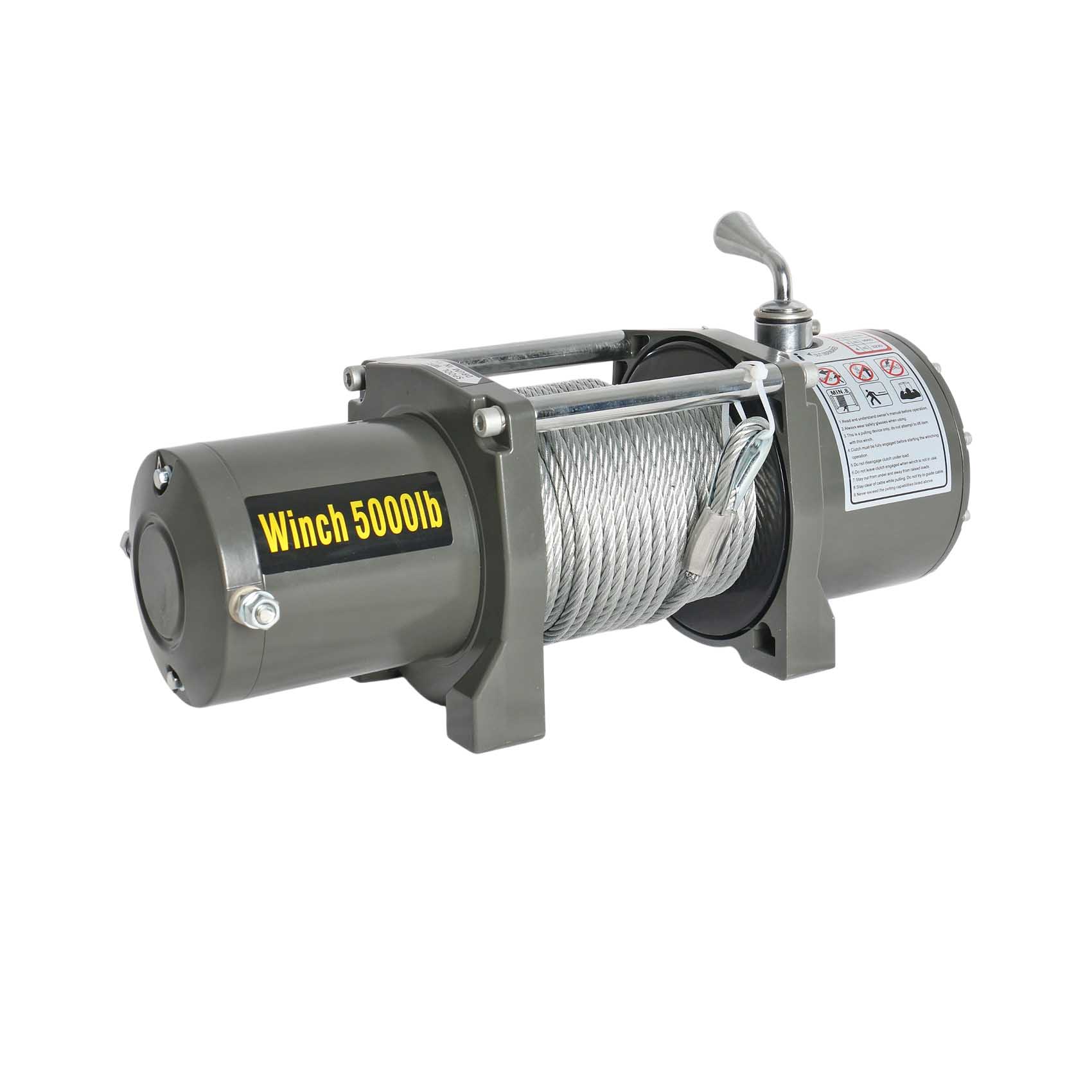

ELECTRIC WINCH

BRAND : PIONEER
ITEM NO.: YWIN5000A
SINGLE LINE RATED PULL : 5000LBS (2270 KG)
LINE SPEED M/MIN : 0.9
MOTOR CURRENT (AMPS) : 380
MOTOR : 1.2HP/900W 12V DC PERMANENT MAGNET
CONTROL : REMOTE SWITCH 12FT (3.7M) LEAD
GEAR TRAIN : 3 STAGE PLANETARY
GEAR REDUCTION RATIO : 307.1
CLUTCH : SLIDING RING GEAR
BRAKING ACTION : AUTOMATIC IN THE-DRUM
DRUM SIZE : DIAMETER 2.52 (64MM) LENGTH 5.26"" (134MM)
CABLE : 80FT OF 1/4"" DIAMETER ( 24M OF 6.4 MM DIAMETER)
FAIRLEAD : 4-WAY ROLLER FAIRLEAD

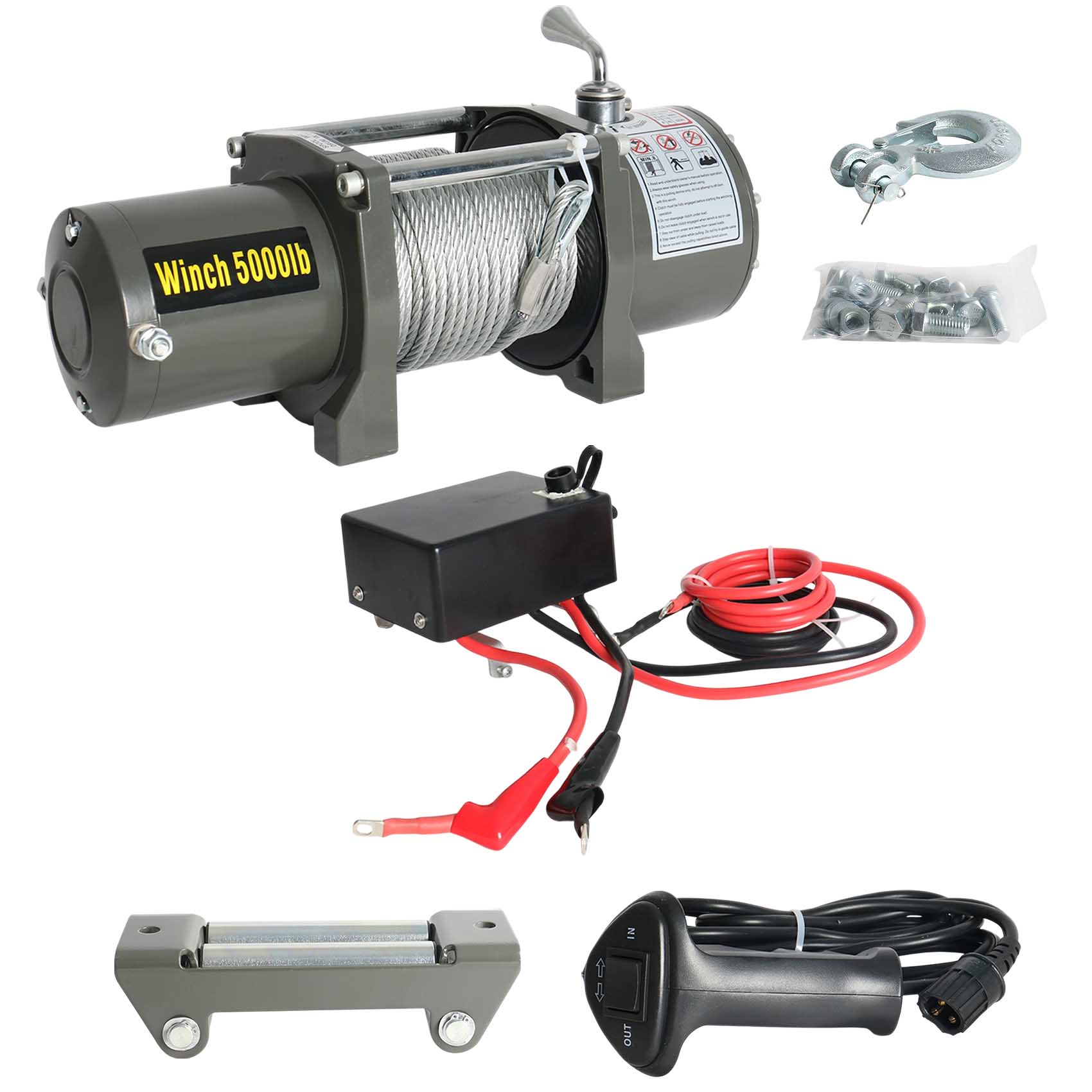

REMOTE CONTROL : INCLUDE
BATTERY LEADS : 2 GAUGE 56"" (1.5M)
FINISH : BLACK/DARK GREY
WEIGHT : N.W. 53IBS (24KG) G.W. 57 IBS(26KG)
OVERALL DIMENSIONS (LXWXH) : 16.9"" X 6.3"" X 8.6"" (430 X 160 X 218 MM)
MOUNTING BOLT PATTERN : 6.55±0.015"" X 4.50±0.010"" (166.4X114.3±MM)
