BRAND : PIONEER
ITEM NO.: YWINC12000LBS
CAPACITY : 12000LBS
MOTOR : 6.5HP/4.8KW 12V, SERIES WOUND MOTOR
GEAR TRAIN : 3-STAGE PLANETARY
GEAR REDUCTION RATIO : 216:1
CLUTCH : UP AND DOWN 90°
ROPE : SYNTHETIC ROPEP3/8""X92""(9.5MM×27M)
DRUM SIZE : P2.51""X8.82""(@64MM×224MM)
OVERALL DIMENSIONS : (L×W×H)22""×7""×6.8""(559×177×172MM)
GROSS WEIGHT : 62LBS(28KG)
DUTY CYCLE : INTERMITTENTLY
FAIRLEAD : ALUMINIUM HAWSE
PACKAGE : 1PC/BOX, 600X343X255MM
MOUNTING BOLT PATTERN: 10""X4.5""(254MM X 114.3MM)
REMOTE CONTROL : INCLUDED
. GOOD QUALITY SERIES, HIGH ASSEMBLY, MORE LONGER LIFE TIME
. STABLE PERFORMANCE: THIS PRODUCT IS MADE OF HIGH-QUALITY STEEL WIRE, STRONG AND DURABLE, NOT EASY TO RUST, CAN BE USED FOR A LONG TIME.
. CONVENIENT DESIGN: THIS ELECTRIC WINCH HAND TOOL IS DESIGNED WITH A HANDLE, WHICH IS CONVENIENT FOR YOU TO CARRY AND STORE.
. MULTI-PURPOSE: THIS ELECTRIC WINCH CAN BE USED FOR CAR, TRUCK, RV, GARAGE , ETC. IT IS VERY SUITABLE FOR HOME AND COMMERCIAL USE.

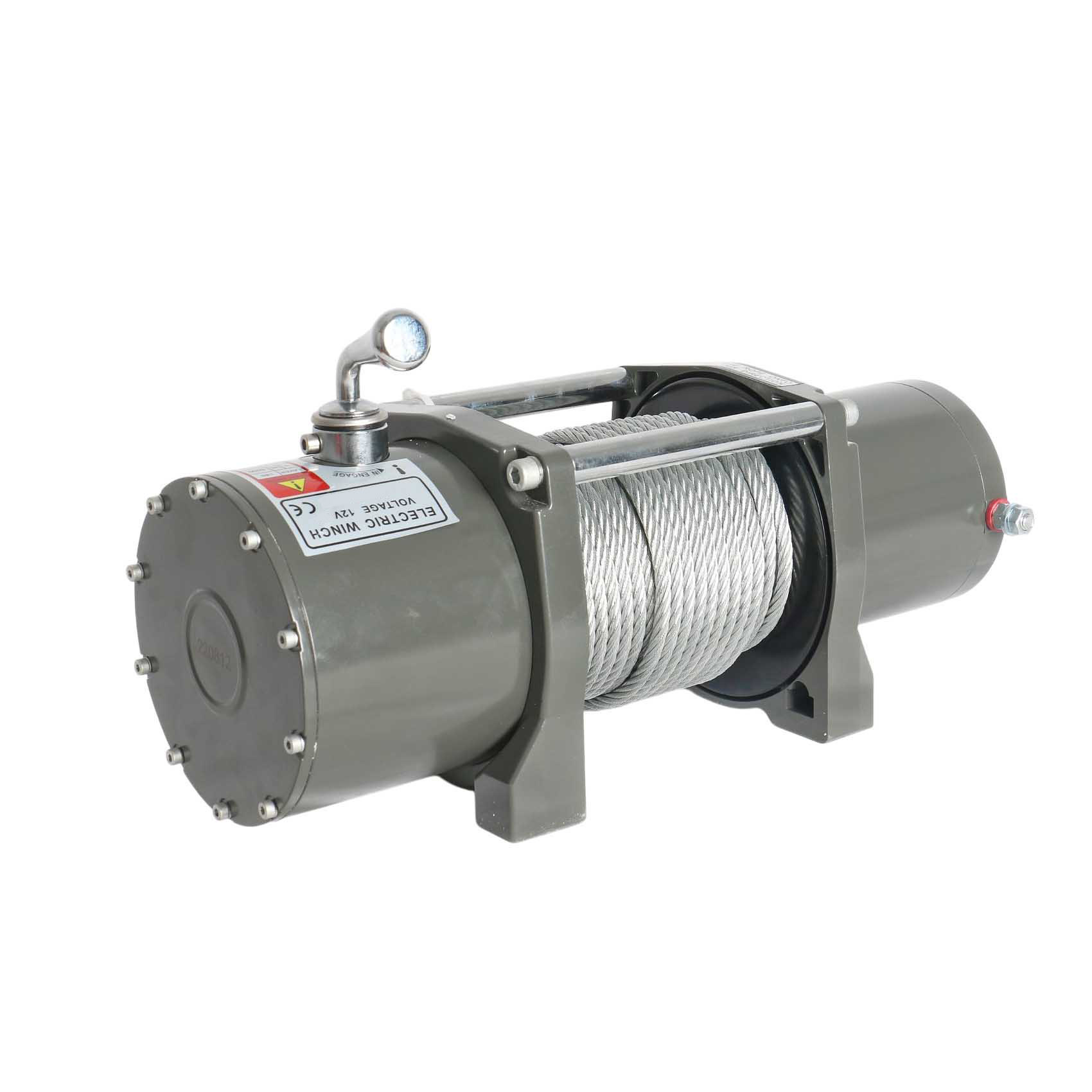

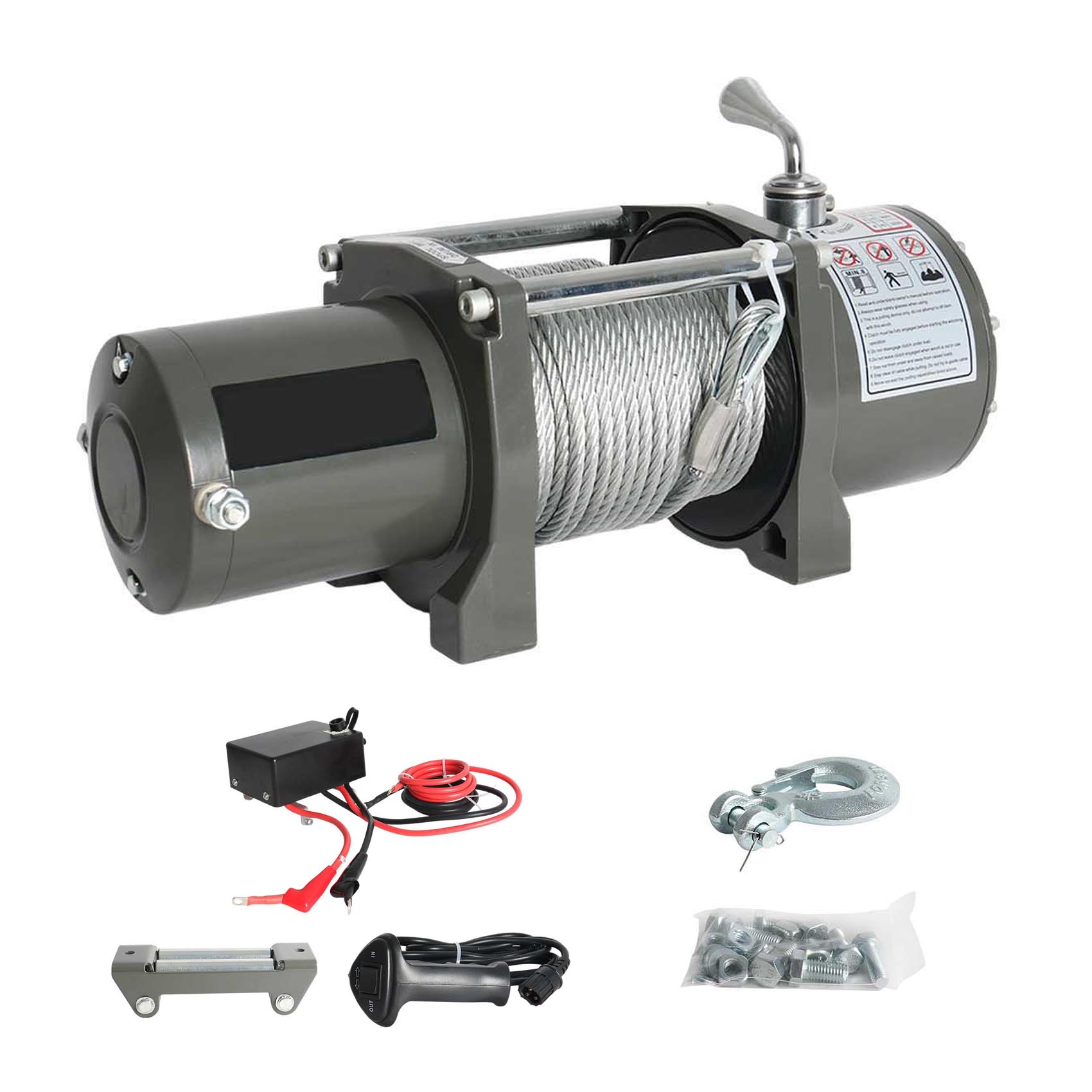

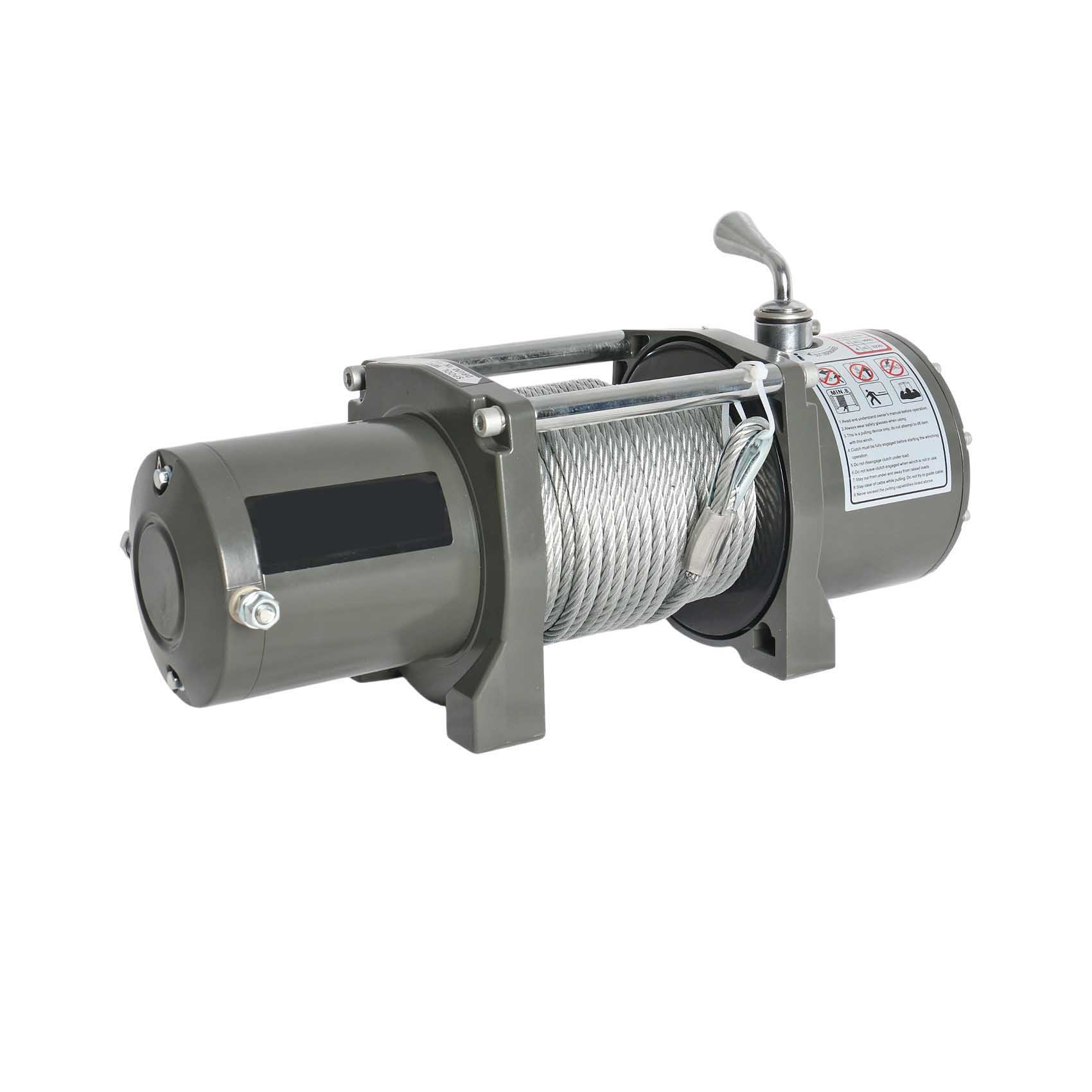

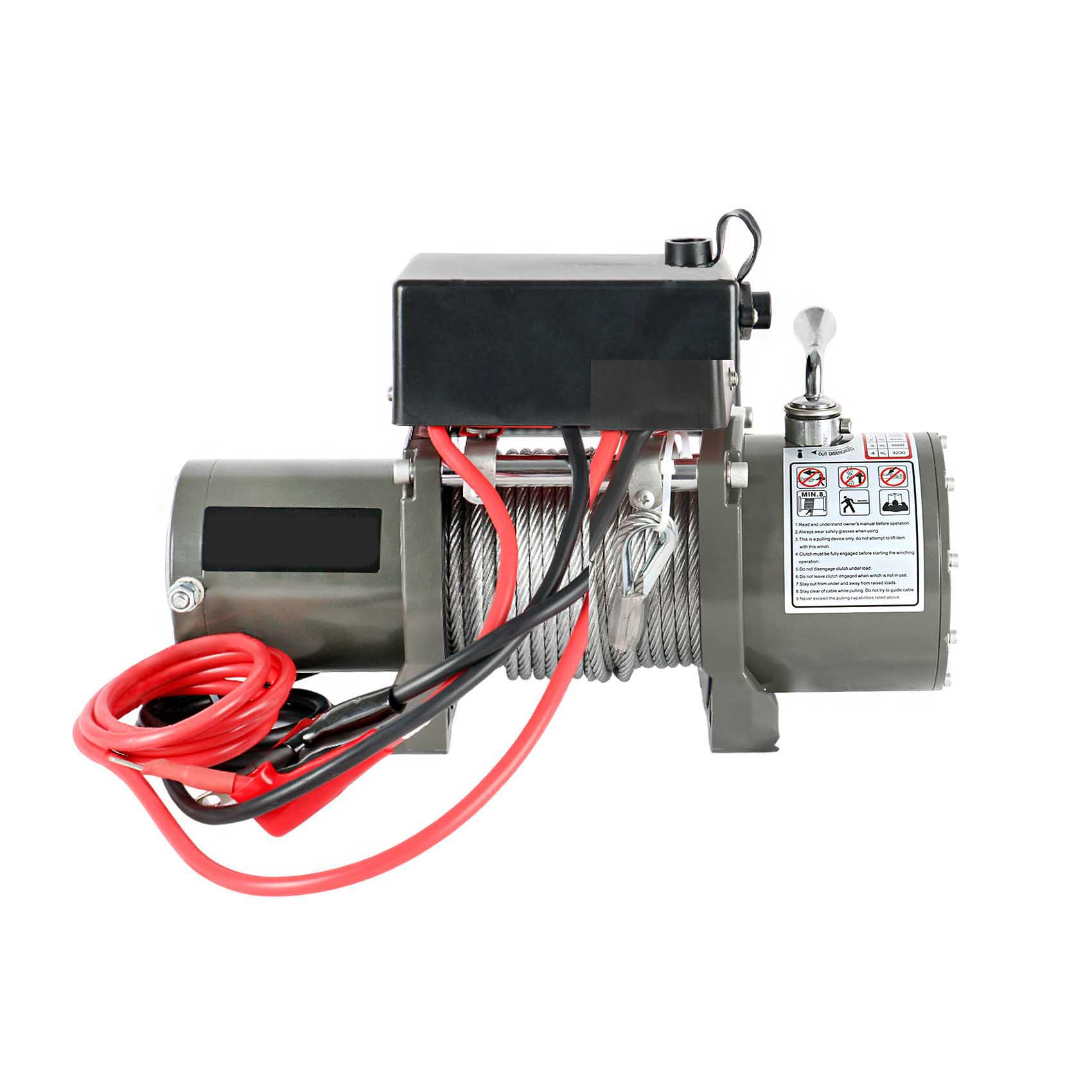

THE NIN 12000 LB PORTABLE ELECTRIC WINCH IS A VERSATILE AND POWERFUL TOOL DESIGNED FOR A RANGE OF APPLICATIONS INCLUDING CARS, TRUCKS, RVS, AND MORE. WITH A CAPACITY OF 12000 LBS (5448 KG) AND POWERED BY A 6.5HP/4.8KW 12V SERIES WOUND MOTOR, IT DELIVERS RELIABLE PERFORMANCE THROUGH ITS 3-STAGE PLANETARY GEAR TRAIN WITH A GEAR REDUCTION RATIO OF 216:1.
EQUIPPED WITH A SYNTHETIC ROPE MEASURING 3/8""X92"" (9.5MM×27M) AND AN ALUMINIUM HAWSE FAIRLEAD, THE WINCH ENSURES DURABILITY AND EASE OF USE. THE DRUM SIZE IS 2.51""X8.82"" (64MM×224MM), AND THE OVERALL DIMENSIONS ARE 22""X7""X6.8"" (559×177×172MM). WEIGHING 62 LBS (28KG), IT FEATURES A CONVENIENT HANDLE FOR EASY TRANSPORT AND STORAGE.
THIS WINCH IS BUILT FOR INTERMITTENT DUTY CYCLES AND COMES WITH A REMOTE CONTROL FOR ADDED CONVENIENCE. IT IS PACKAGED IN A BOX MEASURING 600X343X255MM, WITH A MOUNTING BOLT PATTERN OF 10""X4.5"" (254MM X 114.3MM).
ITEM NO.: YWINC12000LBS
CAPACITY : 12000LBS
MOTOR : 6.5HP/4.8KW 12V, SERIES WOUND MOTOR
GEAR TRAIN : 3-STAGE PLANETARY
GEAR REDUCTION RATIO : 216:1
CLUTCH : UP AND DOWN 90°
ROPE : SYNTHETIC ROPEP3/8""X92""(9.5MM×27M)
DRUM SIZE : P2.51""X8.82""(@64MM×224MM)
OVERALL DIMENSIONS : (L×W×H)22""×7""×6.8""(559×177×172MM)
GROSS WEIGHT : 62LBS(28KG)
DUTY CYCLE : INTERMITTENTLY
FAIRLEAD : ALUMINIUM HAWSE
PACKAGE : 1PC/BOX, 600X343X255MM
MOUNTING BOLT PATTERN: 10""X4.5""(254MM X 114.3MM)
REMOTE CONTROL : INCLUDED
. GOOD QUALITY SERIES, HIGH ASSEMBLY, MORE LONGER LIFE TIME
. STABLE PERFORMANCE: THIS PRODUCT IS MADE OF HIGH-QUALITY STEEL WIRE, STRONG AND DURABLE, NOT EASY TO RUST, CAN BE USED FOR A LONG TIME.
. CONVENIENT DESIGN: THIS ELECTRIC WINCH HAND TOOL IS DESIGNED WITH A HANDLE, WHICH IS CONVENIENT FOR YOU TO CARRY AND STORE.
. MULTI-PURPOSE: THIS ELECTRIC WINCH CAN BE USED FOR CAR, TRUCK, RV, GARAGE , ETC. IT IS VERY SUITABLE FOR HOME AND COMMERCIAL USE.
THE NIN 12000 LB PORTABLE ELECTRIC WINCH IS A VERSATILE AND POWERFUL TOOL DESIGNED FOR A RANGE OF APPLICATIONS INCLUDING CARS, TRUCKS, RVS, AND MORE. WITH A CAPACITY OF 12000 LBS (5448 KG) AND POWERED BY A 6.5HP/4.8KW 12V SERIES WOUND MOTOR, IT DELIVERS RELIABLE PERFORMANCE THROUGH ITS 3-STAGE PLANETARY GEAR TRAIN WITH A GEAR REDUCTION RATIO OF 216:1.
EQUIPPED WITH A SYNTHETIC ROPE MEASURING 3/8""X92"" (9.5MM×27M) AND AN ALUMINIUM HAWSE FAIRLEAD, THE WINCH ENSURES DURABILITY AND EASE OF USE. THE DRUM SIZE IS 2.51""X8.82"" (64MM×224MM), AND THE OVERALL DIMENSIONS ARE 22""X7""X6.8"" (559×177×172MM). WEIGHING 62 LBS (28KG), IT FEATURES A CONVENIENT HANDLE FOR EASY TRANSPORT AND STORAGE.
THIS WINCH IS BUILT FOR INTERMITTENT DUTY CYCLES AND COMES WITH A REMOTE CONTROL FOR ADDED CONVENIENCE. IT IS PACKAGED IN A BOX MEASURING 600X343X255MM, WITH A MOUNTING BOLT PATTERN OF 10""X4.5"" (254MM X 114.3MM).
