BRAND : LUBRI
ITEM NO.: 1701053
ORIGIN : CHINA
FUEL : OIL PUMPS CANBE USED TO TRANSFER LUBRICATION OIL, WASTE OIL AND ANTIFREEZE LIQUIDS.
COMPRESSION RATIO : 5:1
OPERATING PRESSURE : 5-8/70 BAR - 115 PSI
MAXIMUM PRESSURE(BAR/PSI) : 8 BAR / 115 PSI
AIR CONSUMPTION : 240 L/MIN / 63.5 GALLON/MIN
CAPACITY : 12 L/MIN / 3.2 GALLON/MIN
TUBE DIAMETER : 42 MM / 1.65"

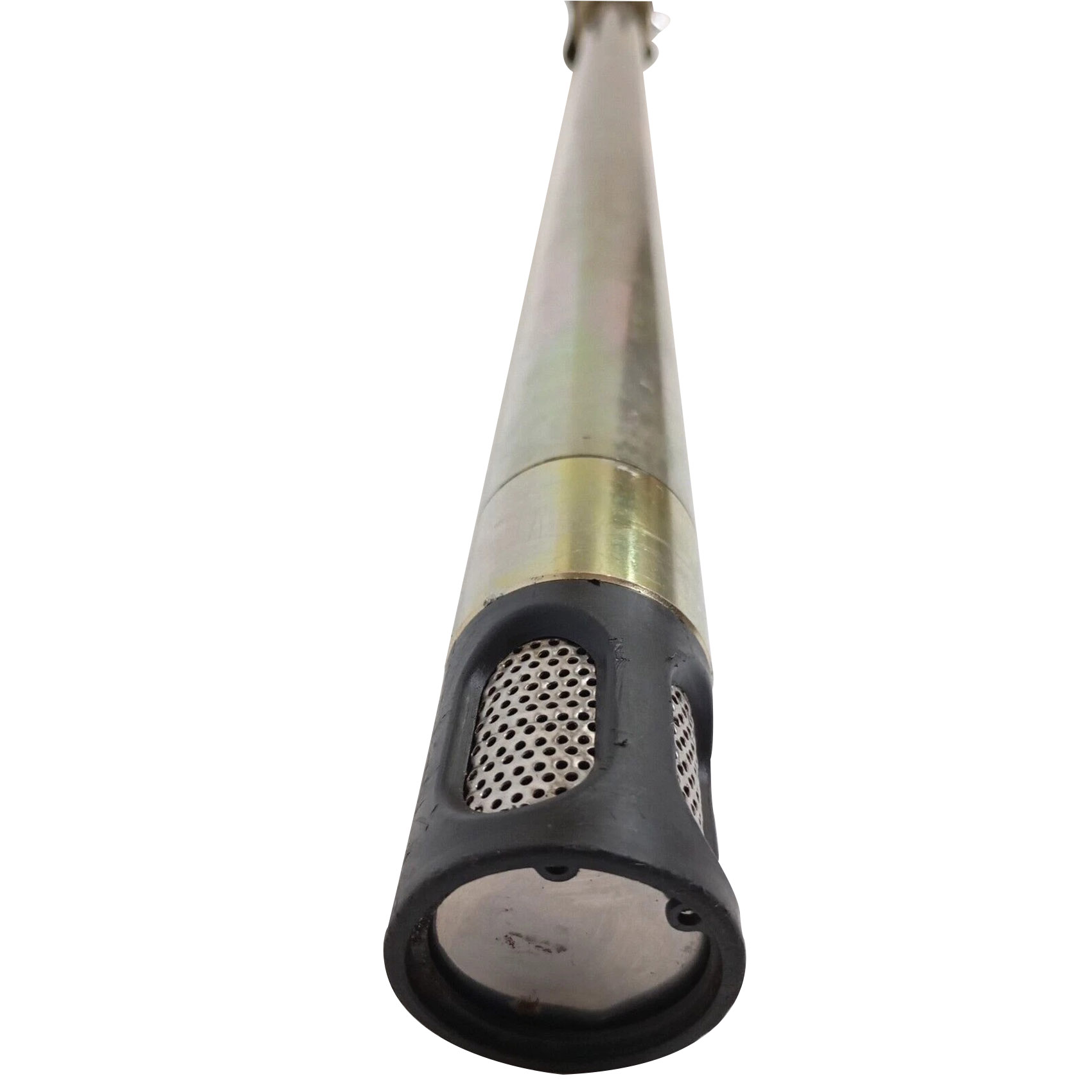

SUCTION TUBE LENGTH : 940 MM / 37"
AIR INLET CONNECTION : 1/4" QUICK PLUG/1/4" NPT FEMALE
OIL DELIVERY CONNECTION : MALE 1/2"
MAX. VISCOSITY OIL DELIVERED : SAE 250
TEMPERATURE OIL DELIVERED : -10~50℃
NOISE LEVEL : 82 DB

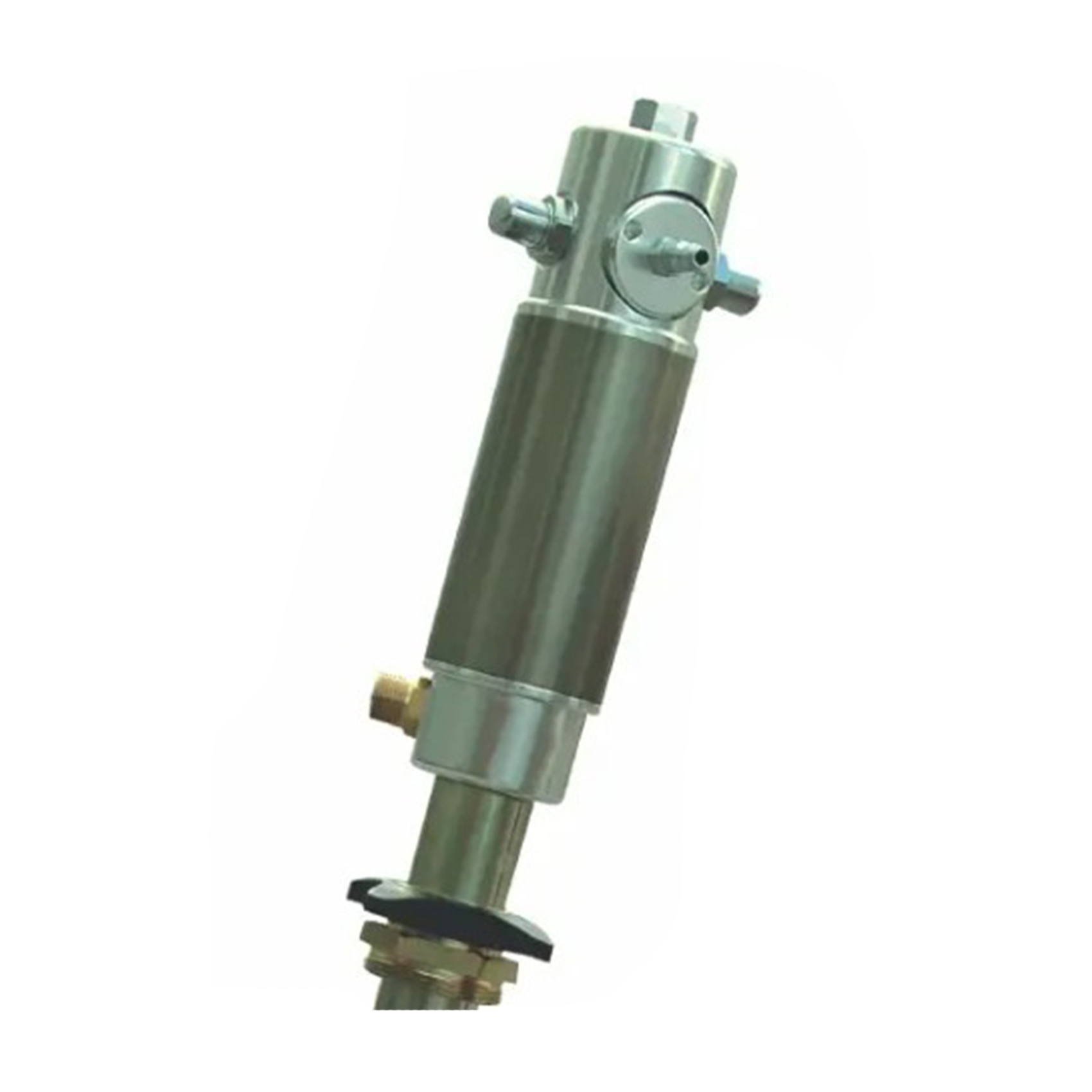

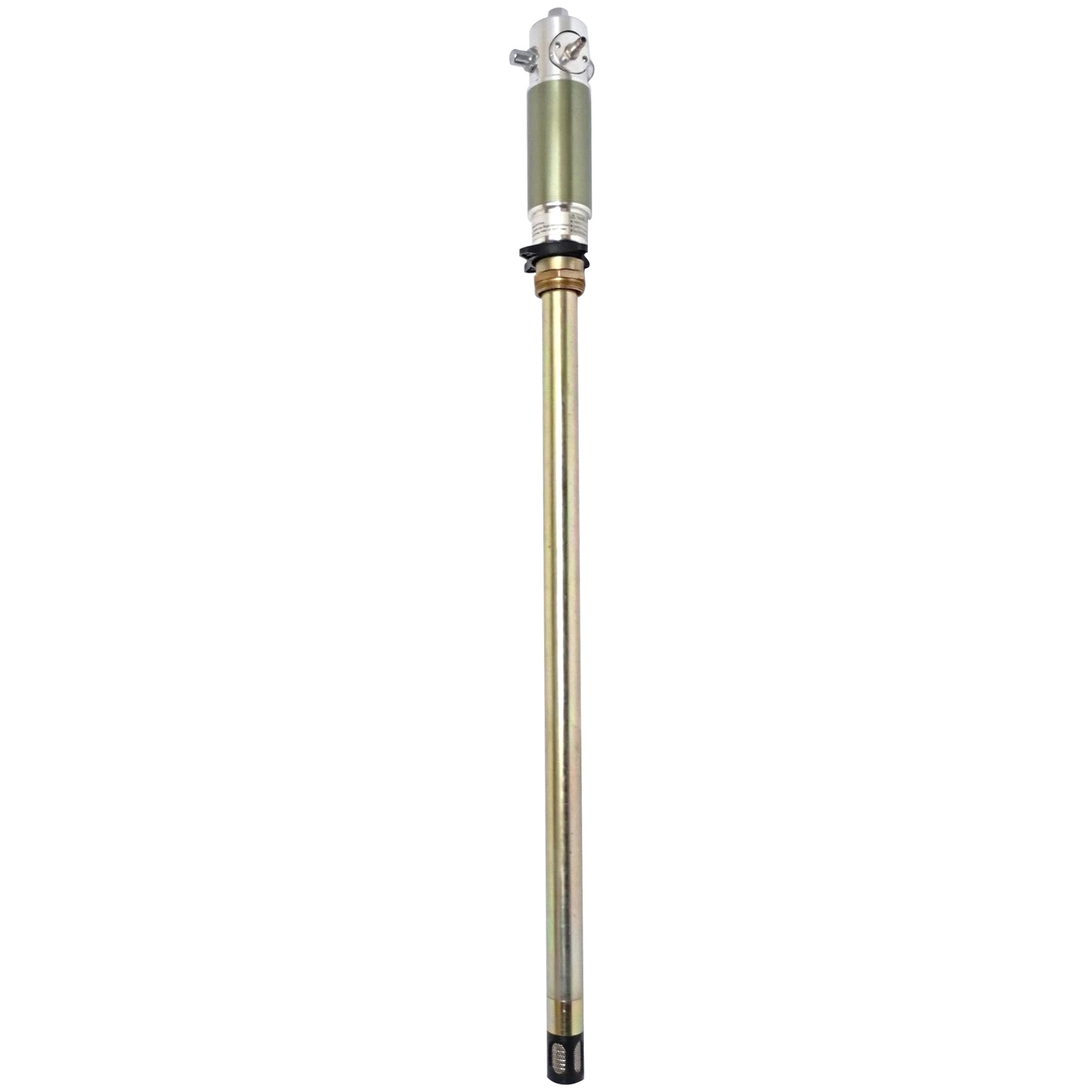

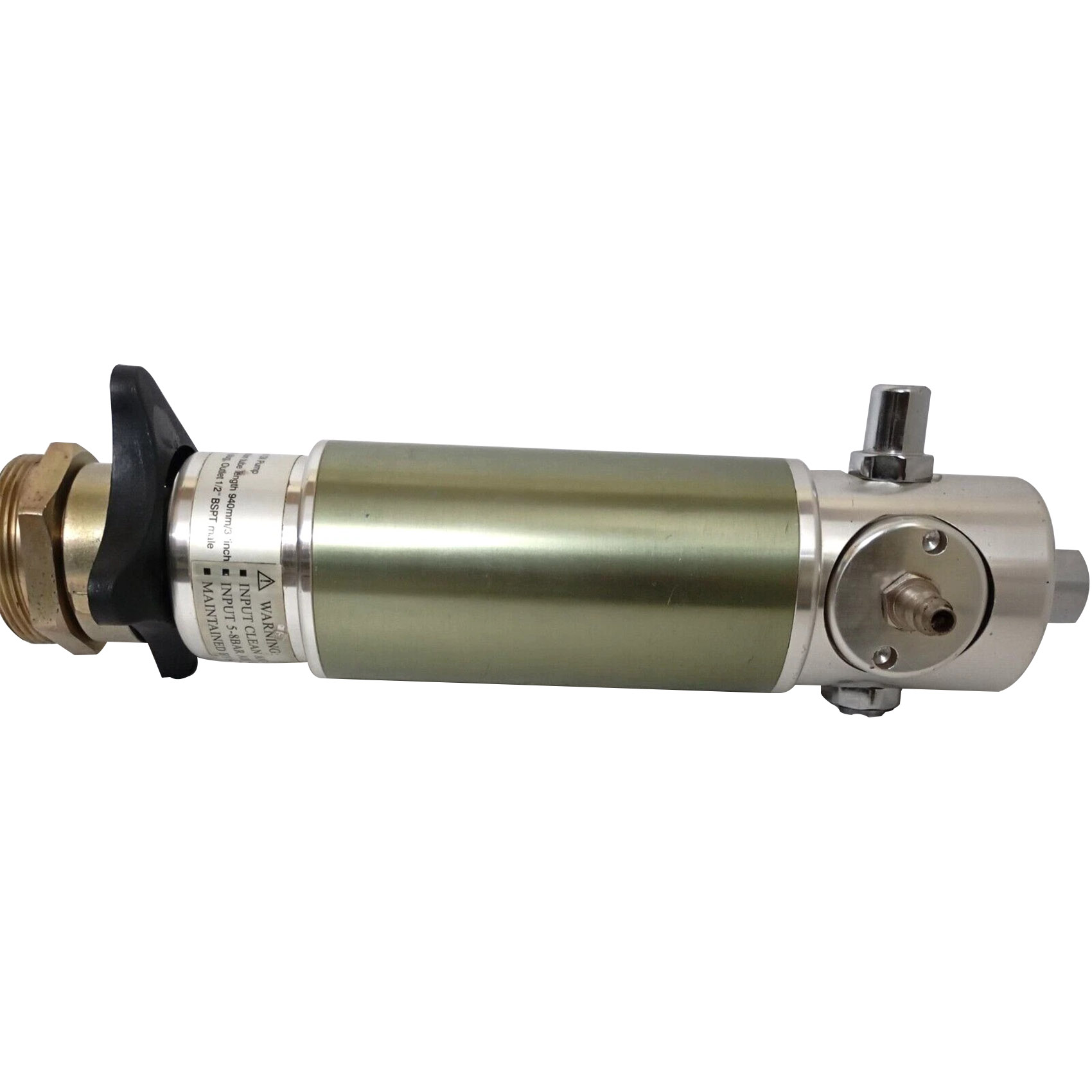

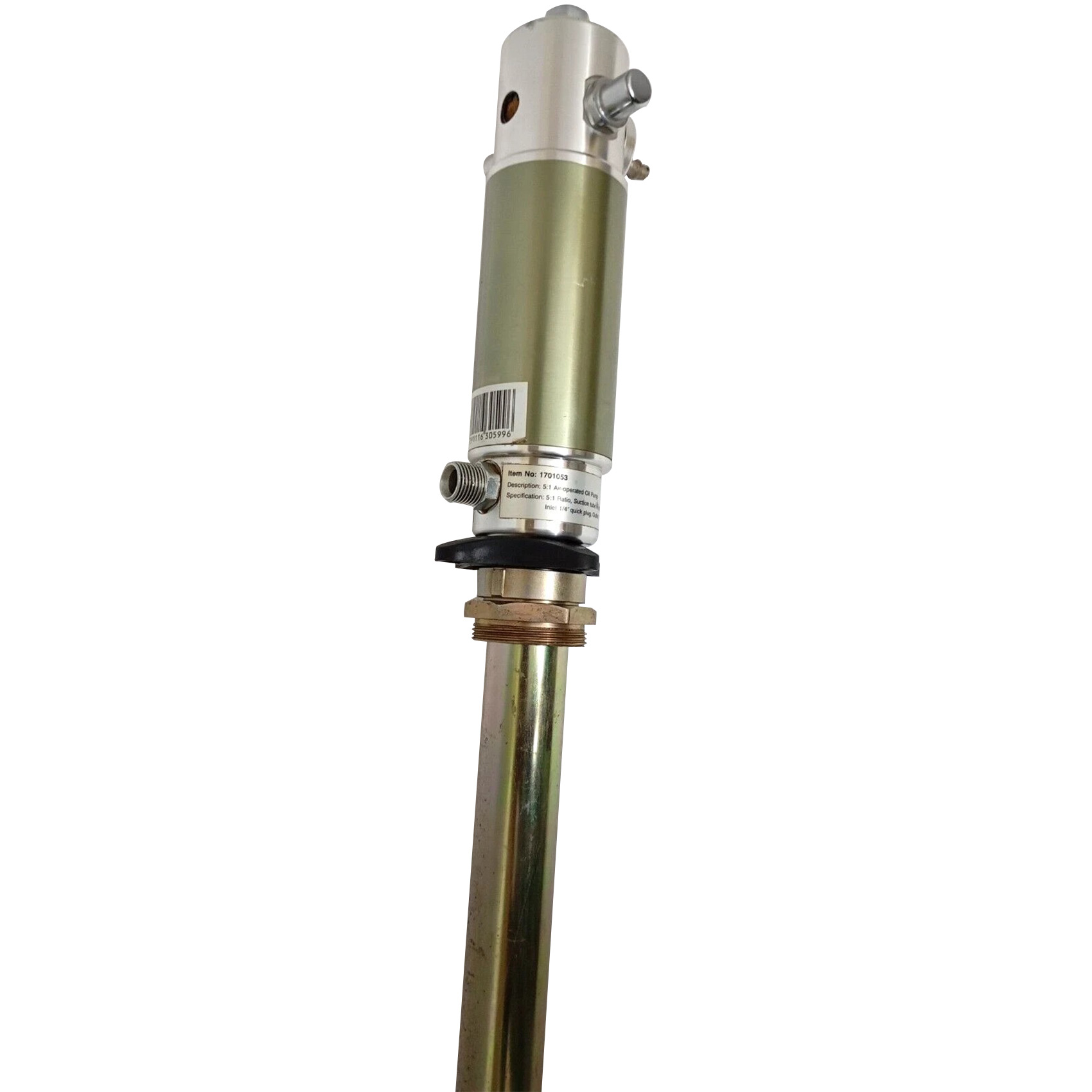

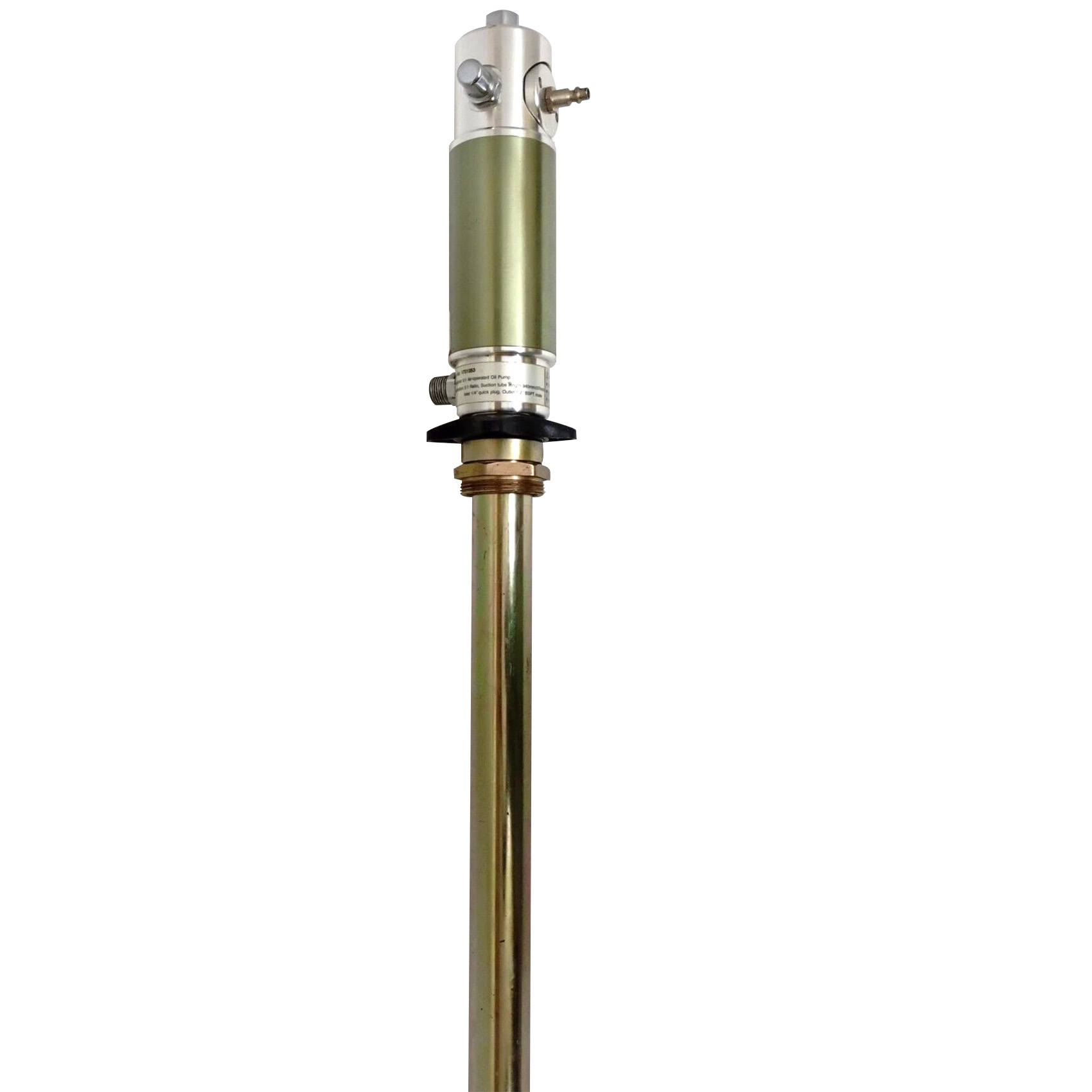

THE LUBRI 1/2" AIR OIL PUMP 1701053 IS A HEAVY-DUTY PNEUMATIC PUMP DESIGNED FOR EFFICIENT TRANSFER OF LUBRICATION OIL, WASTE OIL, AND ANTIFREEZE LIQUIDS. FEATURING A 5:1 COMPRESSION RATIO AND OPERATING AT 5–8 BAR (UP TO 115 PSI), IT DELIVERS A FLOW RATE OF 12 L/MIN (3.2 GPM) WITH AN AIR CONSUMPTION OF 240 L/MIN (63.5 GPM), ENSURING CONSISTENT PERFORMANCE IN WORKSHOP AND INDUSTRIAL APPLICATIONS.
EQUIPPED WITH A 42 MM SUCTION TUBE (940 MM LENGTH), 1/4" QUICK PLUG/NPT FEMALE AIR INLET, AND A 1/2" OIL DELIVERY CONNECTION, THIS PUMP SUPPORTS OILS UP TO SAE 250 VISCOSITY AND TEMPERATURES BETWEEN -10°C TO 50°C. BUILT FOR DURABILITY AND EFFICIENCY, IT OPERATES AT A NOISE LEVEL OF 82 DB, MAKING IT IDEAL FOR PROFESSIONAL USE IN GARAGES, WORKSHOPS, AND SERVICE STATIONS.
