BRAND : PROXXON
ITEM NO.: 28566
ORIGIN : GERMANY
PART OF PROXXON’S COLLAR SYSTEM : 20 MM
FENCE PROVIDED : THROAT DEPTH OF 150MM
MATERIAL : MADE OF DIE-CAST ALUMINIUM WITH PLANE MILLED BEARING SURFACE.

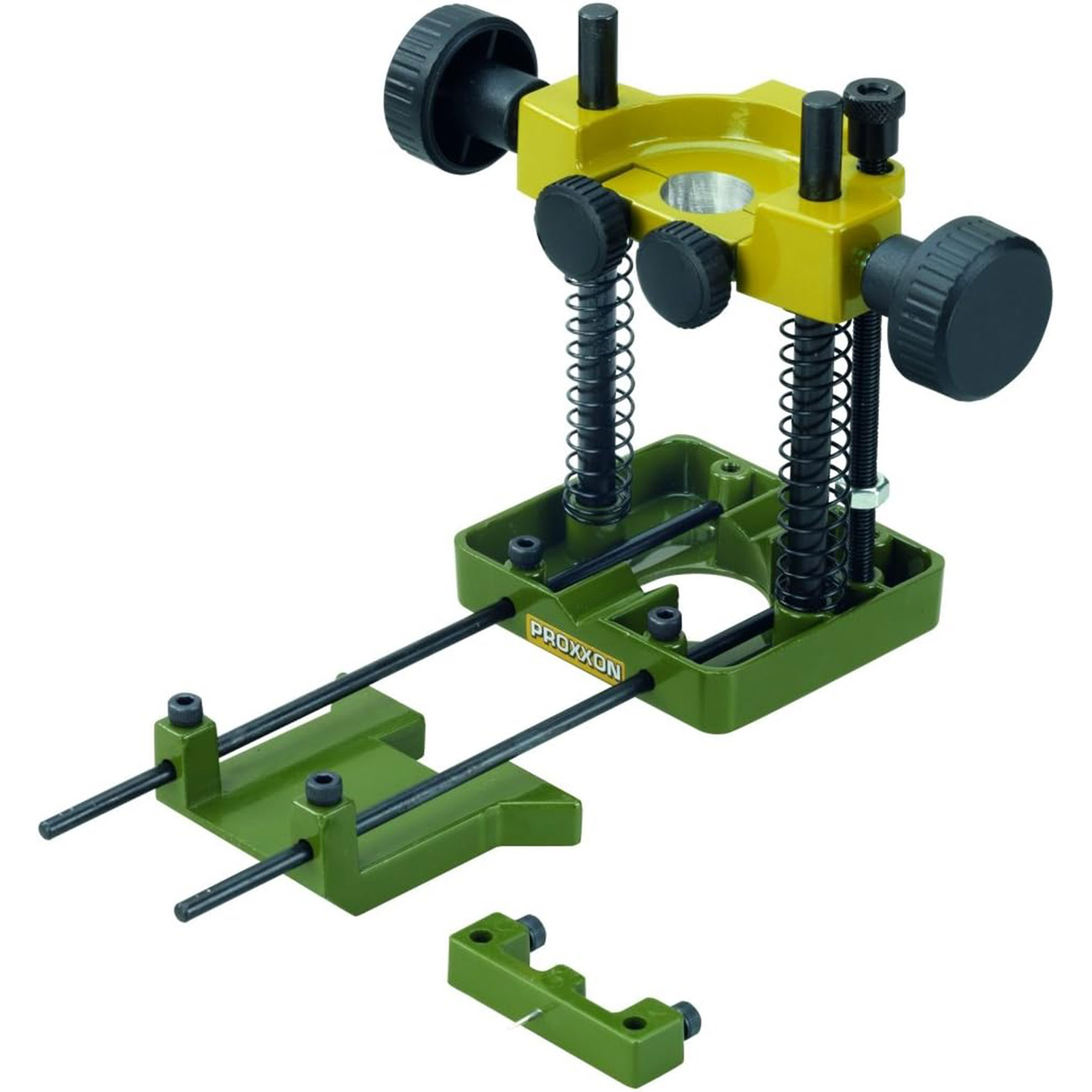

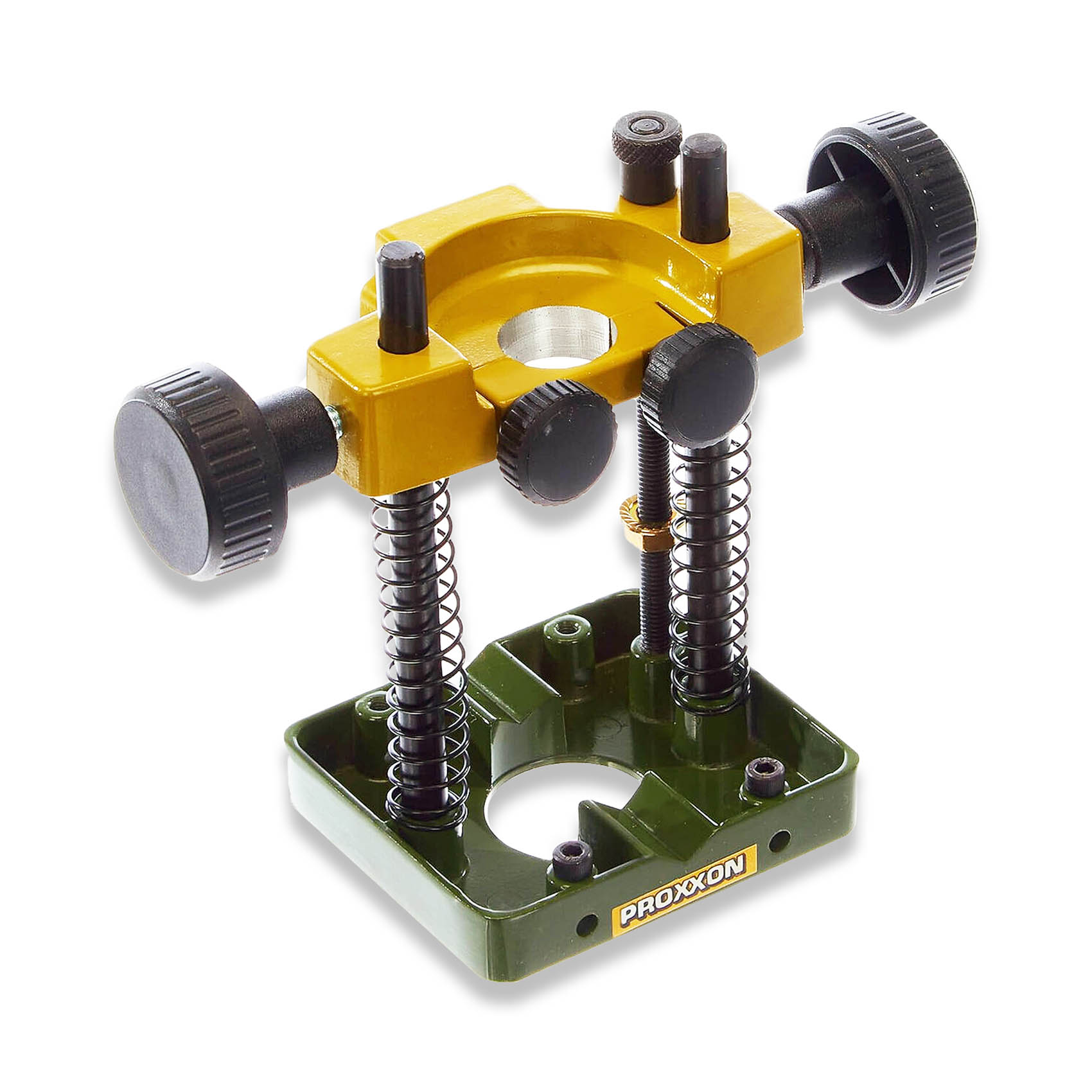

USES : REGARDLESS WHETHER WITH PARALLEL LIMIT STOP MAXIMUM THROAT 150 MM, FOR CIRCULAR MILLING WITH CENTRING PIN 100 – 400 MM OR FREEHAND. ADJUSTABLE DEPTH CONTROL WITH PRESELECTABLE STROKE. ALSO IDEAL AS DRILLING GUIDE FOR ROUND PARTS THROUGH PRISM IN THE GUIDING PLATE
.

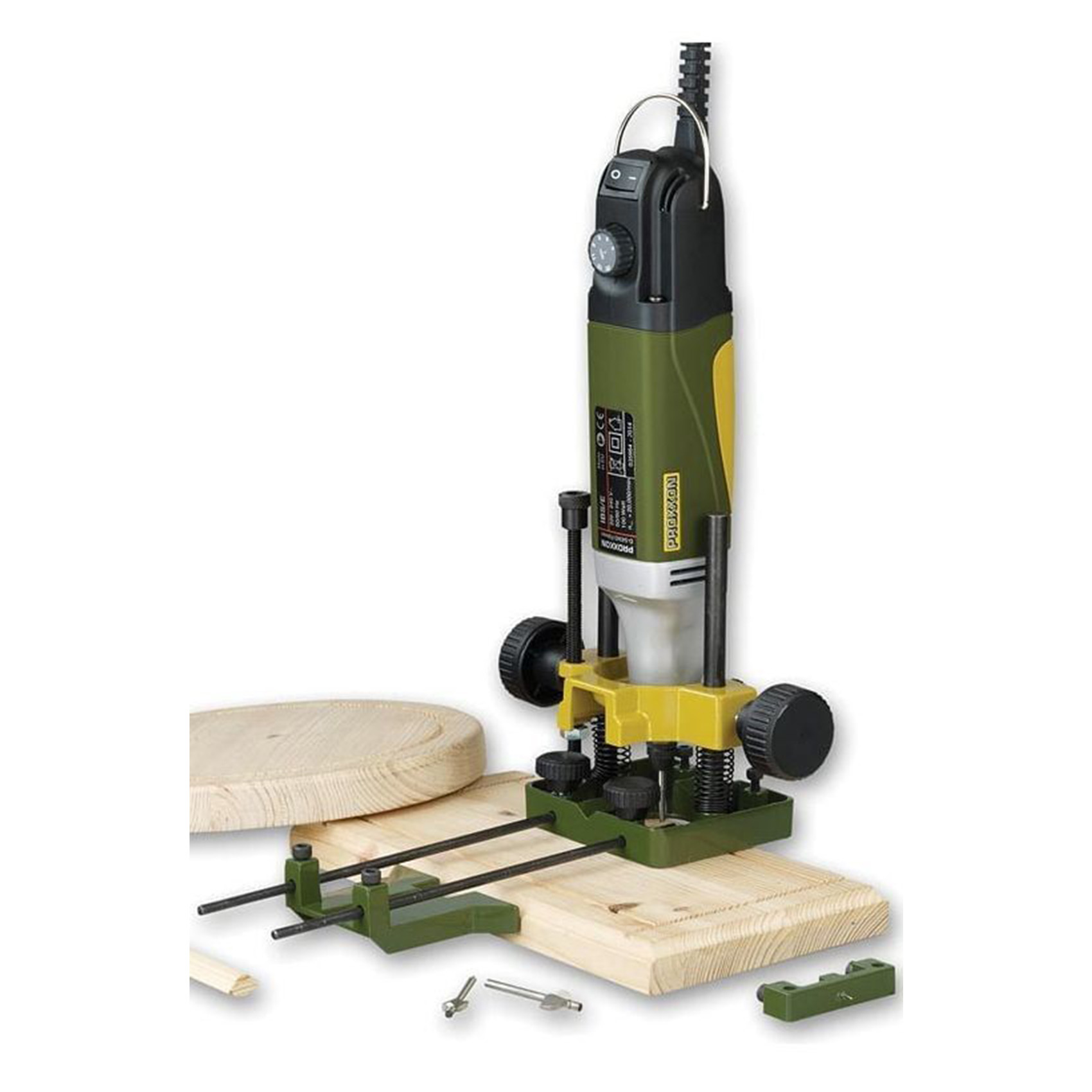

NOTE : THE DEPICTED PROFESSIONAL DRILL/GRINDER IBS/E IS NOT INCLUDED IN THE SCOPE OF DELIVERY.
. TURNS A DRILL INTO A MINIATURE ROUTER
. INTERCHANGEABLE CIRCLE GUIDE
. CAN BE USED TO DRILL A ROUND SECTION WORKPIECE
. ADJUSTABLE DEPTH STOP WITH PRE-SELECTED TRAVEL STROKE
REGARDLESS WHETHER WITH PARALLEL LIMIT STOP (MAXIMUM THROAT 150MM), FOR CIRCULAR MILLING WITH CENTRING PIN (100 – 400MM) OR FREEHAND. OF DIE-CAST ALUMINIUM WITH PLANE-MILLED BEARING SURFACE. ADJUSTABLE DEPTH CONTROL WITH PRE-SELECTABLE STROKE. ALSO IDEAL AS DRILLING GUIDE FOR ROUND PARTS THROUGH PRISM IN THE GUIDING PLATE.
