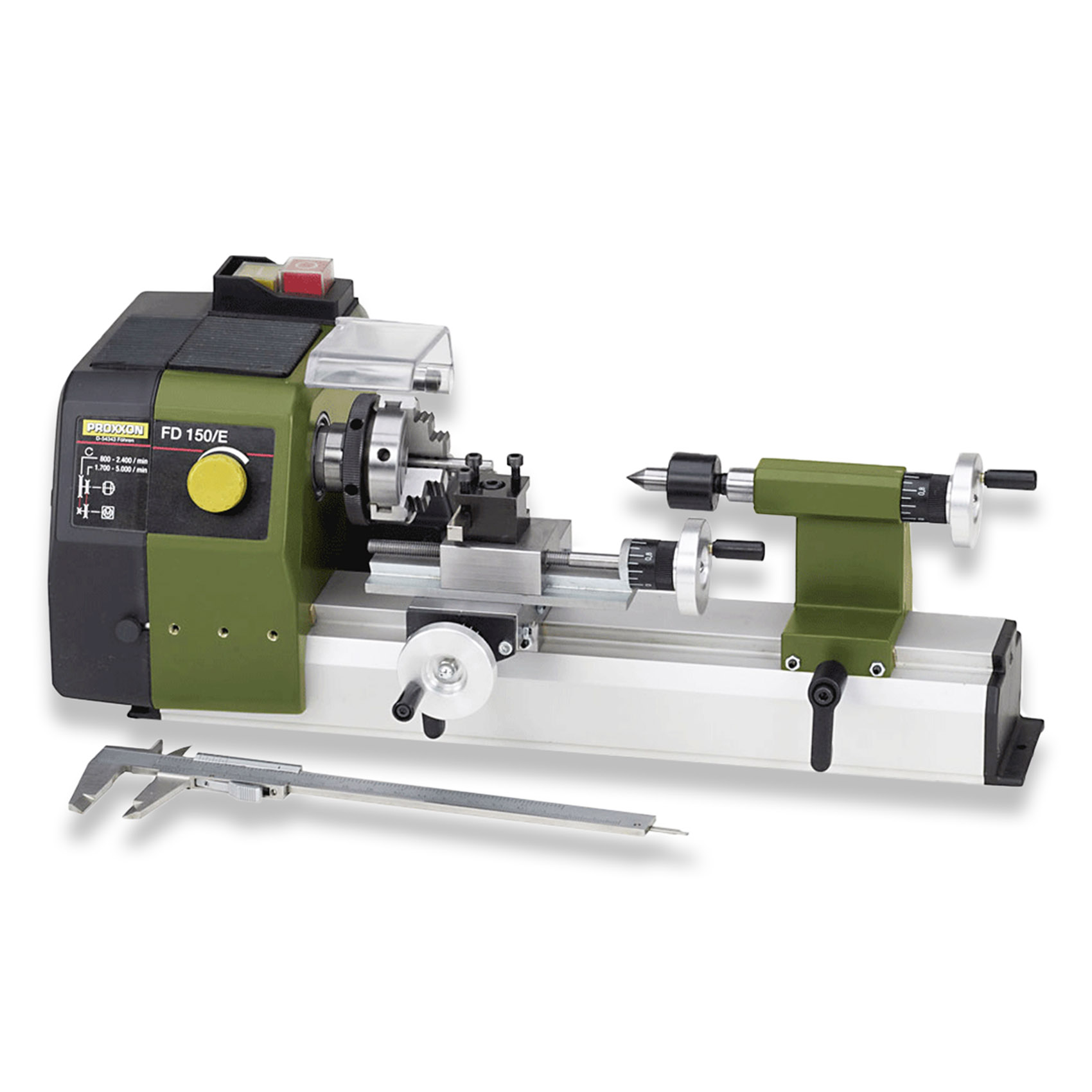

PRECISION LATHE

BRAND : PROXXON

ITEM NO.: 24150

ORIGIN : GERMANY

POWER : 230V. 50/60HZ. WITH QUIET SPECIAL DC MOTOR, 2-STAGE BELT DRIVE AND ADDITIONAL ELECTRONIC SPEED CONTROL FOR HIGH ENGINE POWER AT LOW SPEEDS FOR LARGER WORK PIECES AND FOR THE APPROPRIATE CUTTING SPEED, EVEN FOR THE SMALLEST PIECES.

RPM : 2-STAGE BELT DRIVE WITH ELECTRONIC SPEED CONTROL: STAGE 1 = 800 - 2,800 RPM. STAGE 2 = 1,500 - 5,000 RPM.

USES : THE RIGHT CUTTING SPEED FOR EVEN THE SMALLEST PIECES. FOR FACE TURNING, LONGITUDINAL TURNING, BORING, TAPER TURNING, SLICING AND DRILLING.

INCLUDED : COMPLETE WITH 3-JAW CHUCK AND LIVE CENTRE.

COMPATIBILITY : CHUCK FIT FOR STANDARD ER 11 TYPE COLLETS.

MATERIAL : MACHINE BED WITH DOVETAIL GUIDES OF CONTINUOUS CASTING ALUMINIUM. DIE-CAST ALUMINIUM SPINDLE HEADSTOCK. PRECISION BEARING MOUNTED MAIN SPINDLE WITH CONTINUOUS 8.5MM BORE. DIE-CAST ALUMINIUM TAILSTOCK WITH SPINDLE AND LIVE CENTRE (FITTING MK 0/ SHORT). STEEL TOOL POST FOR TURNING STEELS 6 X 6 MM

SIZE : CENTRE DISTANCE 150 MM. SWING 55 MM. HEIGHT OVER CROSS SLIDE 33 MM. CROSS SLIDE TRAVEL (X) 40 MM, TOP SLIDE TRAVEL (Z) 60 MM. SPINDLE BORE 8.5MM.

DIMENSIONS : APPROXIMATELY 360 X 150 X 150 MM

WEIGHT : 4.5 KG

. MAIN SWITCH WITH EMERGENCY STOP FUNCTION AND RESTART PROTECTION.

. THREE-JAW CHUCK, SELF-CENTERING. INSIDE JAWS 1.5 - 32MM, OUTSIDE JAWS 20 - 50MM.

. TO BE SHIFTED MANUALLY ON THE BED AND CLAMPED WITH LEVER.

. ROTATING TOOL POST FOR TURNING STEELS 6 X 6 MM.

. PROCESSING VIA TOP SLIDE 60 MM, TRAVEL DISTANCE Z AND CROSS SLIDE 40 MM, TRAVEL DISTANCE X.

. THE ANGLE ADJUSTMENT OF THE UPPER CARRIAGE MAKES IT POSSIBLE TO TURN TAPERS UP TO +/- 45°.

. HANDWHEELS WITH ZERO ADJUSTABLE SCALE RING (1 DIVISION = 0.05MM, 1 REVOLUTION = 1MM).

. INSULATED TO CLASS 1.
