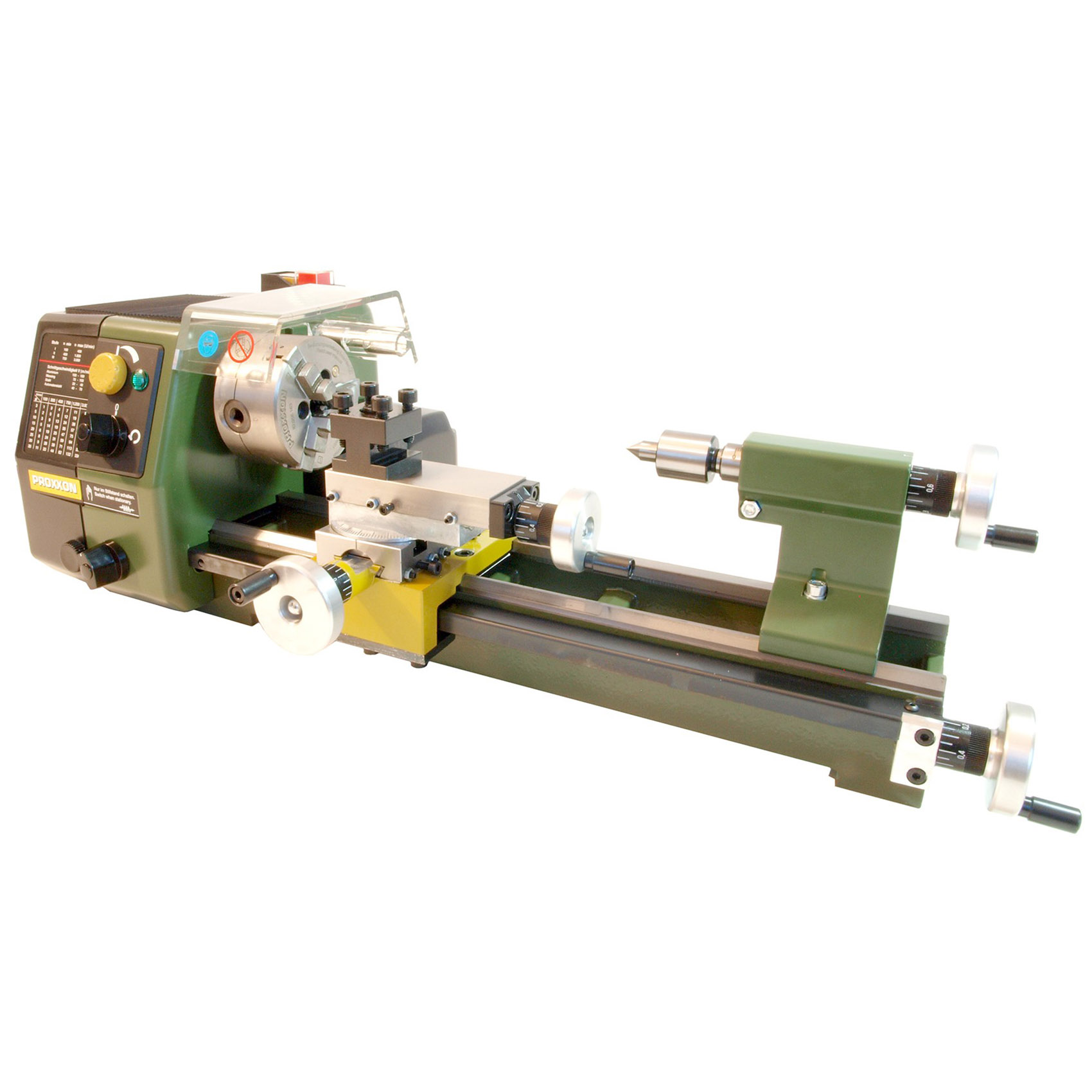

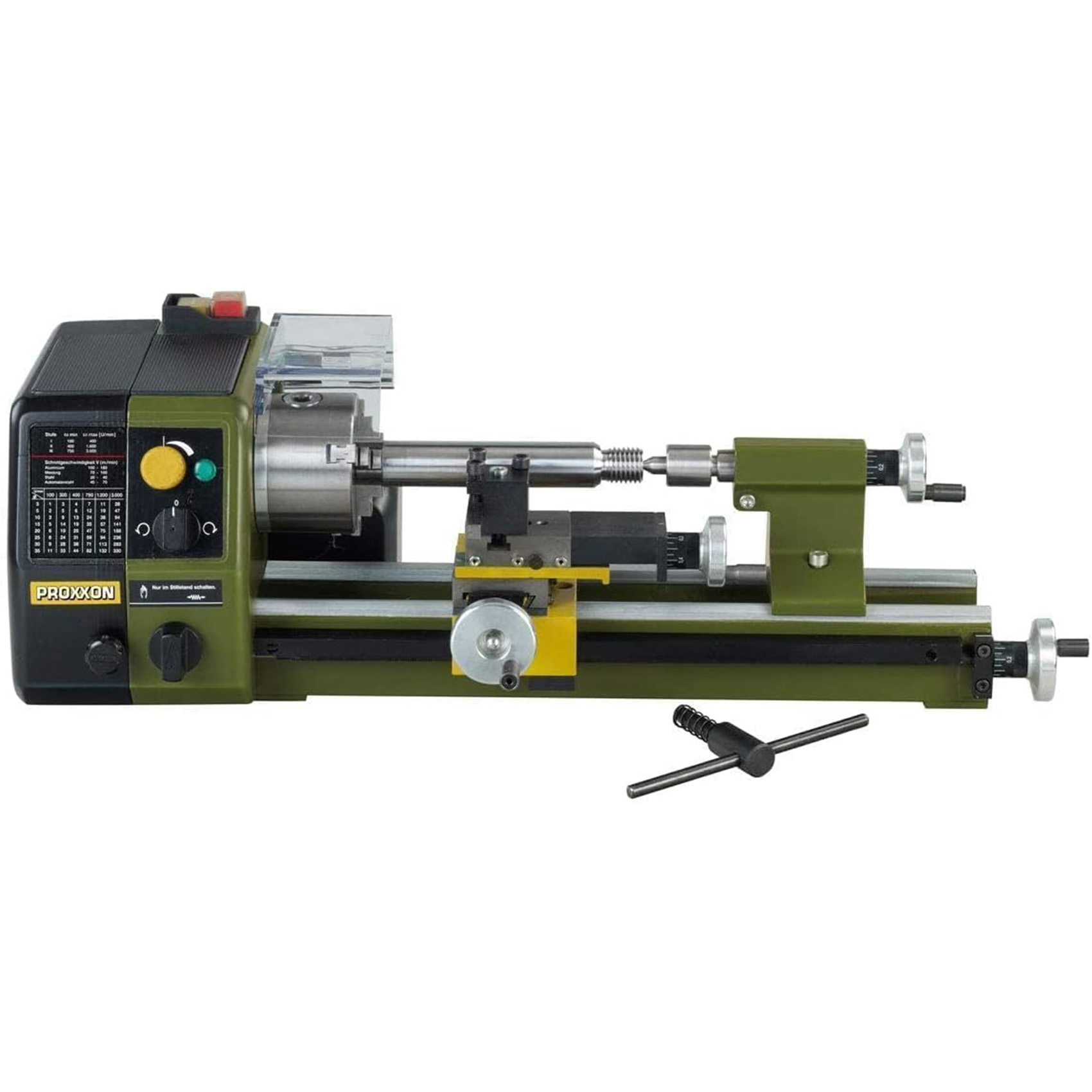

LATHE MACHINE

BRAND : PROXXON

ITEM NO.: 24002

ORIGIN : GERMANY

POWER : 230V. 50/60HZ

COMPATIBILITY : MOUNTING FLANGE FOR FASTENING THE MILL/DRILL HEAD PF 230

MATERIAL : FOR MACHINING STEEL, BRASS, ALUMINIUM AND PLASTIC

USES : FOR FACE, LONGITUDINAL AND TAPER TURNING, THREAD-CUTTING

SIZE : CENTRE DISTANCE 250 MM. SWING 70 MM. HEIGHT OVER CROSS SLIDE 43 MM. L 560, W 270, H 170MM

WEIGHT APPROX.: 12KG

MACHINE BED: OF CAST IRON, WIDE-LEGGED PRISMATIC GUIDE. FOR VIBRATION-FREE WORK EVEN AT HIGH LOADS. REAR FLANGE FOR MOUNTING THE MILL/DRILL HEAD PF 230. COVERED LEAD SPINDLE.

HEADSTOCK: OF DIE-CAST ALUMINIUM. PRECISION BEARING MOUNTED MAIN SPINDLE (RUN-OUT WITHOUT CHUCK 1/100MM) WITH 10.5MM OPENING. CHUCK SIDE 70MM HOLLOWED TO 14MM. WITH MK 2 BORE. ROTARY SWITCH FOR ENGAGING THE AUTOMATIC FEED VIA LEAD AND FEED SPINDLE (OPTIONALLY 0.05 OR 0.1MM/REV.).

TAILSTOCK: OF DIE-CAST ALUMINIUM. SLEEVE Ø 18MM, RETRACTABLE UP TO 30MM. WITH MILLIMETRE SCALE, MK 1 BORE AND LIVE CENTRE.

SUPPORT: BED CARRIAGE MADE OF DIE-CAST ZINC. CROSS SLIDE AND TOP SLIDE OF STEEL (ADJUSTMENT 60 OR 45MM). TURNING TOOL POST FOR CUTTING TOOLS SIZE 8 X 8MM.

DRIVE: QUIET DC SPECIAL MOTOR WITH 3-STAGE BELT DRIVE FOR 300 - 900 AND 3,000RPM. WITH ADDITIONAL SPEED CONTROL (FULL-WAVE ELECTRONICS) CONTINUOUSLY ADJUSTABLE TO 100 - 300 OR 1,000RPM, DEPENDING ON BELT RATIO. CLOCKWISE - ANTICLOCKWISE ROTATION. MAIN SWITCH WITH EMERGENCY STOP FUNCTION AND RESTART PROTECTION.

LATHE CHUCK: HIGH QUALITY 3-JAW CHUCK AS PER DIN 8386 CLASS 1 (CONCENTRICITY TOLERANCE 0.04MM). CAPACITY THROUGH REVERSING JAWS FROM 2 - 75MM. INCLUDING LATHE CHUCK GUARD WITH SAFETY SHUTDOWN.

HANDWHEELS: OF ALUMINIUM, WITH ADJUSTABLE SCALE RING (1 DIVISION = 0.05MM, 1 REVOLUTION = 1MM).

THREAD CUTTING DEVICE: WITH CHANGE GEARS FOR LEFT-HAND AND RIGHTHAND THREADS OF THE MOST IMPORTANT METRIC PITCHES (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5MM).
