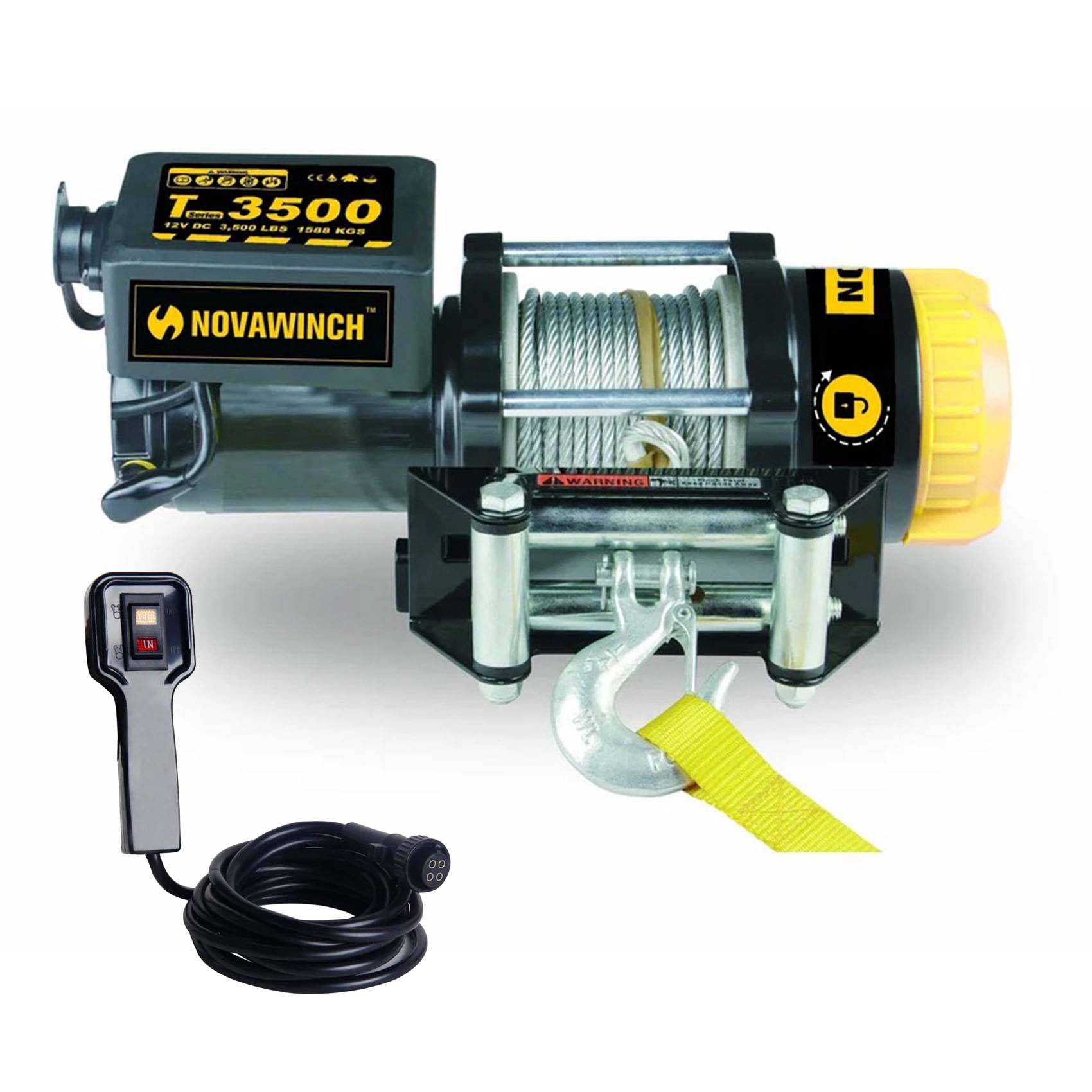

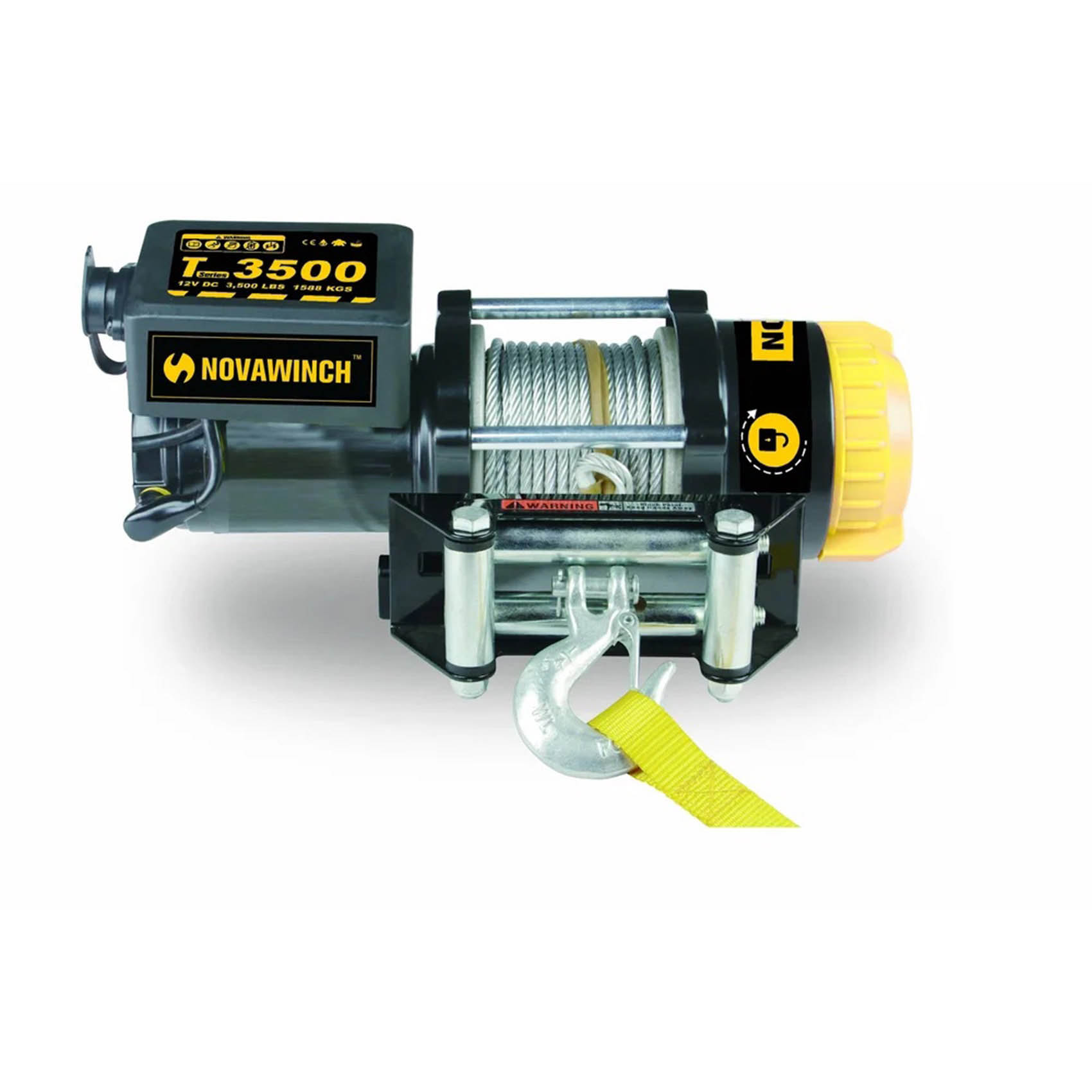

ELECTRIC WINCH
NOVAWINCH ELECTRIC WINCH WIRE ROPE 3500LB 4536KGS DC12V NVT3500I 2384005 NVT10000 2384013 | FOR RECOVERY TRUCK, TOWING CAR, SHIP, BOAT, BARGE, TRAILER, OFF ROAD | PULLER | GARAGE
| Product Code: | NOVAWINCHNVT3500I |
| Availability: | In Stock |
| Type: | Pulley Pullers |
| Shipping: | Free Delivery |
BRAND: NOVAWINCH
ITEM NO.: 2384005
ORIGIN : CHINA
MODEL : NVT3500I
RATED LINE PULL : 10000LBS (4536KGS) SINGLE LINE
MOTOR(SERIES WOUND) : DC 12V: 6.3HP/4.5KW
GEAR BOX : 3-STAGE PLANETARY
GEAR RATIO : 196:1
CLUTCH : PULL AND TURN
BRAKING ACTION : MECHANICAL, AUTOMATIC, 100% LOAD HOLDING
LINE PULL LBS (KGS) : LINE SPEED FPM(MPM) NO LOAD 20.0(6.1) - MAX LOAD 5.2(1.6)
MOTOR CURRENT AMPS : NO LOAD 80 - MAX LOAD 380

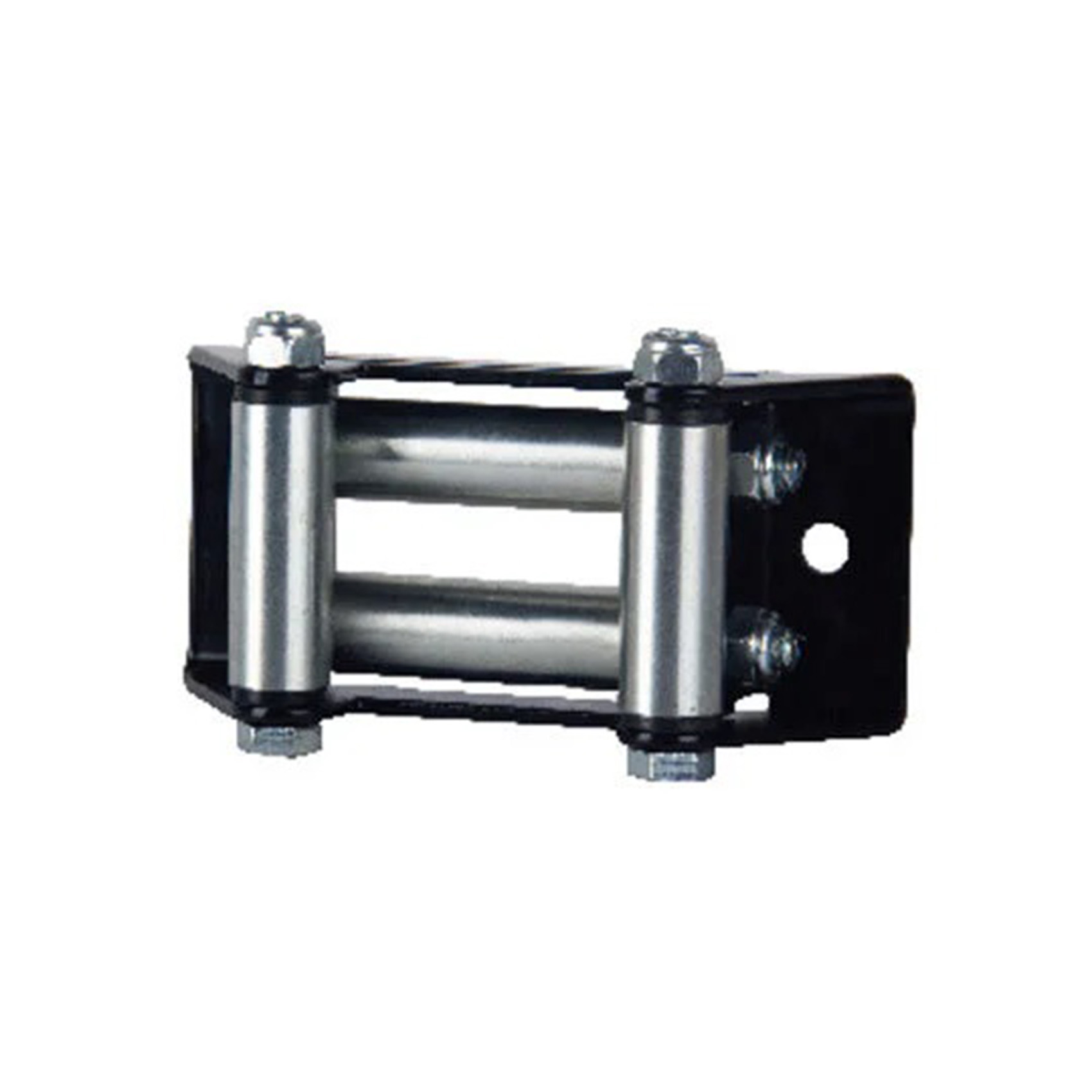

FAIRLEAD : 4 WAY ROLLER FAIRLEAD
WIRE ROPE : 3/8″×85.3′(9.2MM×26M)

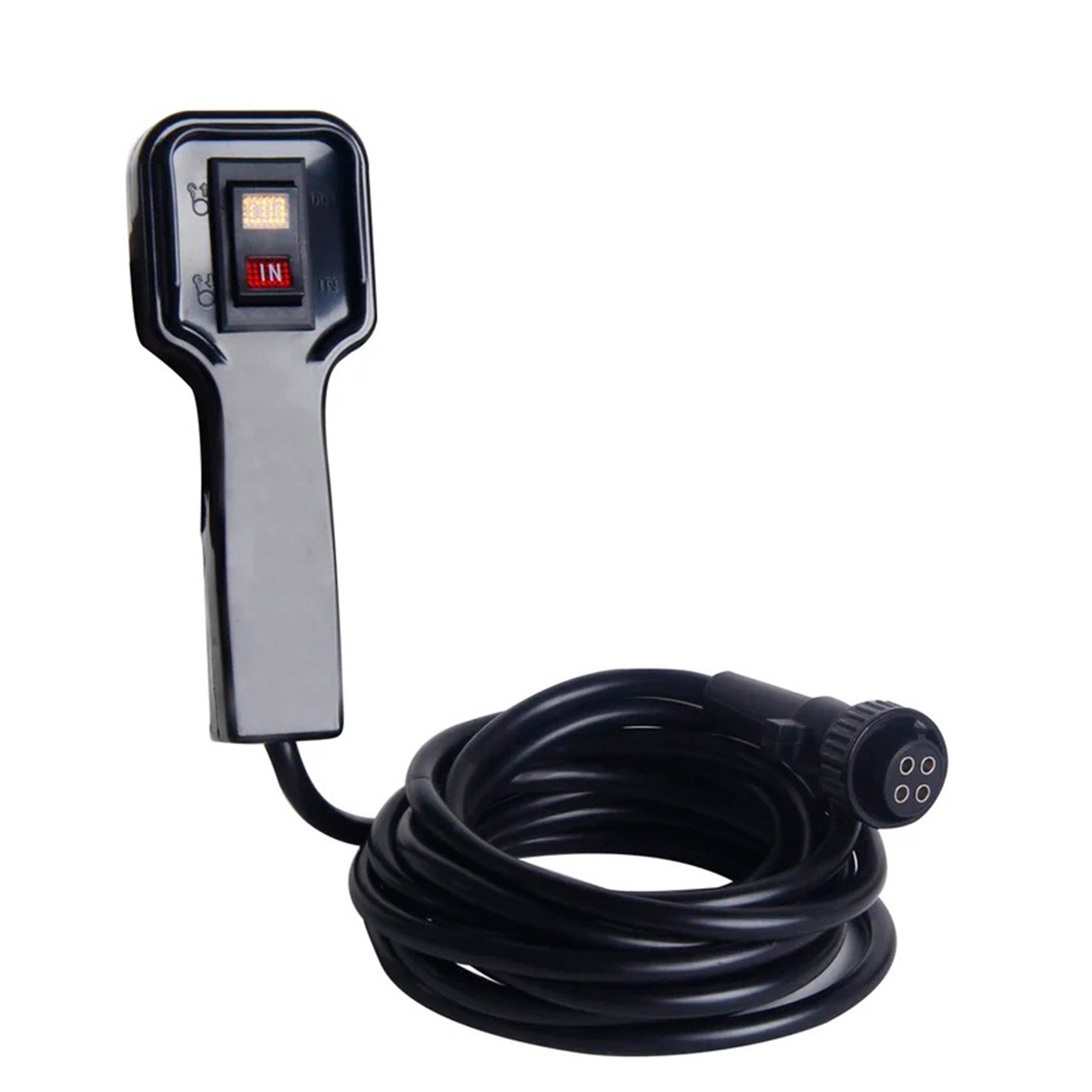

REMOTE : WATERPROOF HANDHELD CONTROL 12.7' (3.9M)

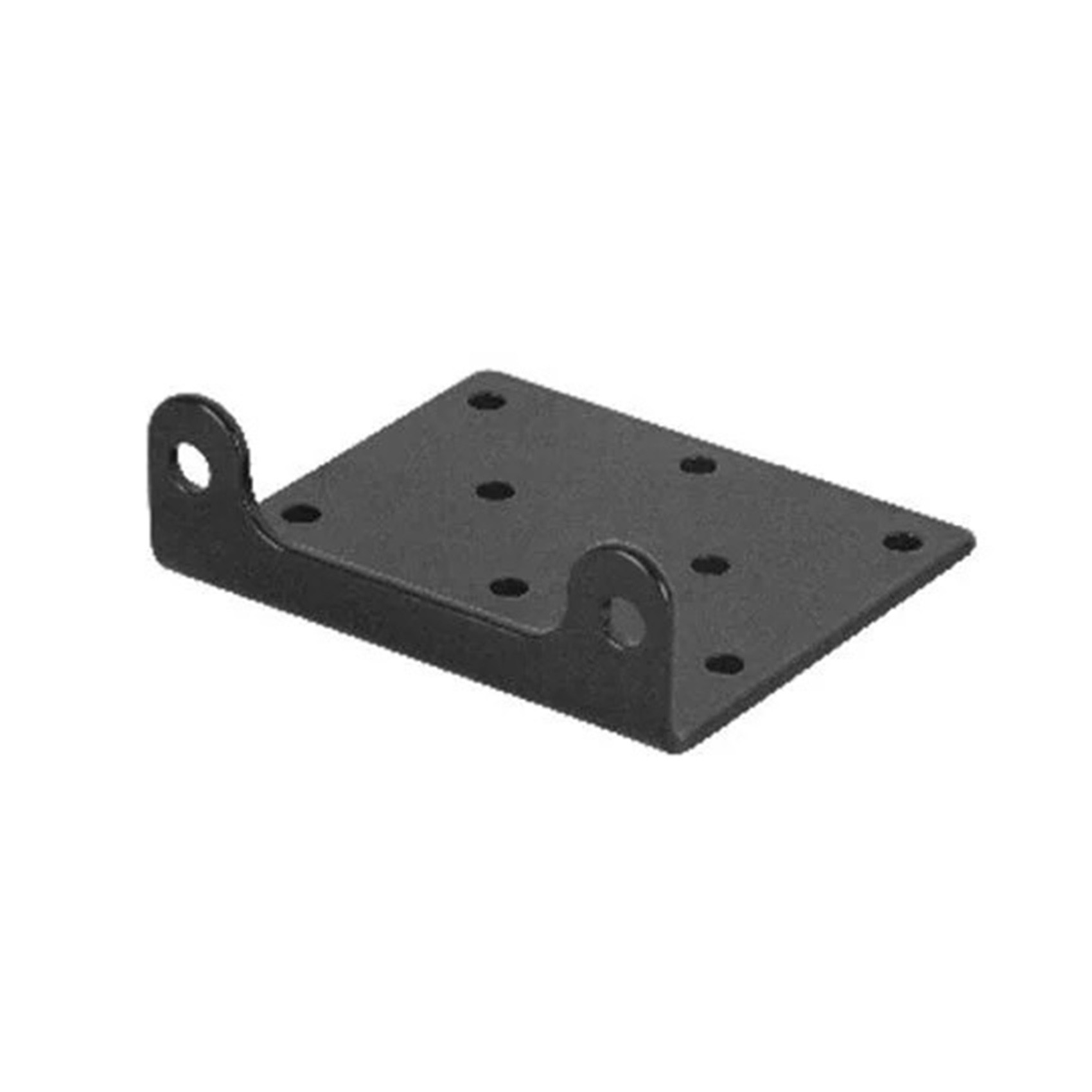

MOUNTING BOLT PATTERN : 10″×4.5″(254MM×114MM)
DIMENSIONS 12V : 22.36″×6.2″×10.24″(568MM×158MM×260MM)
WEIGHT : 89.3LBS (40.5KGS)
. IP67 RATED WEATHERPROOFING
. SAFETY STANDARDS: SAE J706 AND IS CE MARKED.
. CHROME-PLATED FREESPOOL PULL AND TURN CONTROL.
. HIGH-TEMPERATURE, SEALED CONTACTOR FEATURING SILVER CONTACT PADS FOR EXCELLENT CONDUCTIVITY AND LONGEVITY.
BRAND: NOVAWINCH
ITEM NO.: 2384005
ORIGIN : CHINA
MODEL : NVT3500I
NOVAWINCH T-SERIES 10,000 OFF-ROAD WINCH (NVT 10000)
NOVAWINCH T-SERIES IS OUR WORKHORSE SERIES FEATURING PROVEN PARTS AND GREAT PERFORMANCE. NOVAWINCH'S EXPERIENCE IN BUILDING WORLD CLASS WINCHES BRINGS INNOVATIVE CONCEPTS TO THIS HIGH-PERFORMANCE AND AFFORDABLE RANGE WITHOUT SACRIFICING RELIABILITY. THE T-SERIES 12,000 (ALSO KNOWN AS THE NVT 10000) WINCH IS WHERE PERFORMANCE MEETS VALUE.
